13-52 Probes and Biopsy
102 First Street South, Kalona, IA 52247-9589 USA Tel : 1-319-656-4447
E-mail: info@civco.com
http://www.civco.com
1. Refer to “5.17.2 Magnetic Navigator” for installation of magnetic controller, auxiliary power line,
USB cable, and magnetic generator and probe sensor. Abdomen sensor is necessary under Fusion
imaging mode.
2. Wear the probe sterile sheath after probe sensor and bracket are installed.

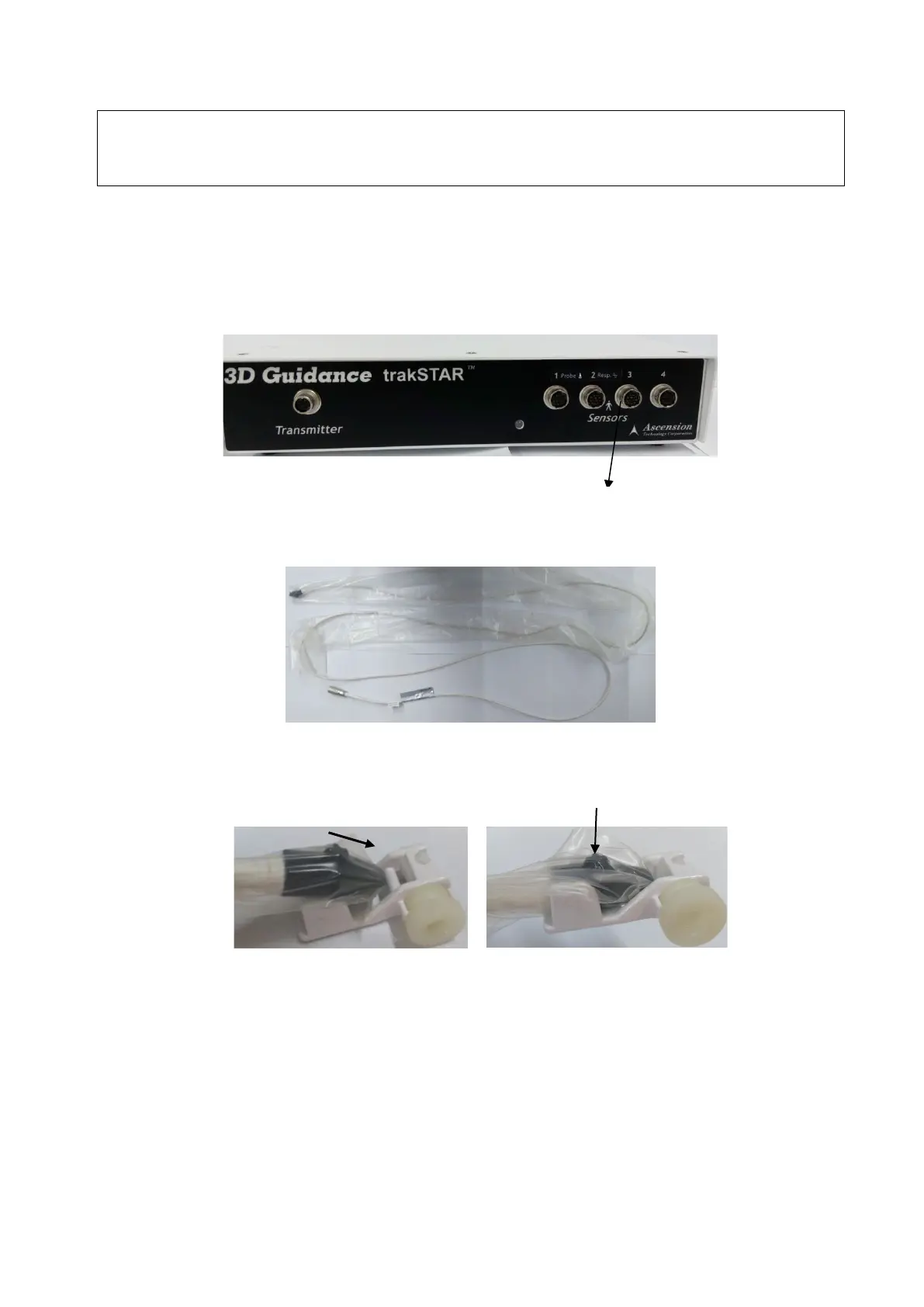

3. Connect the needle sensor to the 3rd port on the magnetic controller.
4. Put on the sterile cover onto the needle sensor.
5. Connect needle sensor to the bracket.
6. Loose the knob on the bracket anti-clockwise and insert the vTRAX needle into the bracket by the arrow
direction. Anchor the bracket at the bottom of the needle and then tighten the knob.
Biopsy needle sensor port
Cross mark on the top
To Next Page
