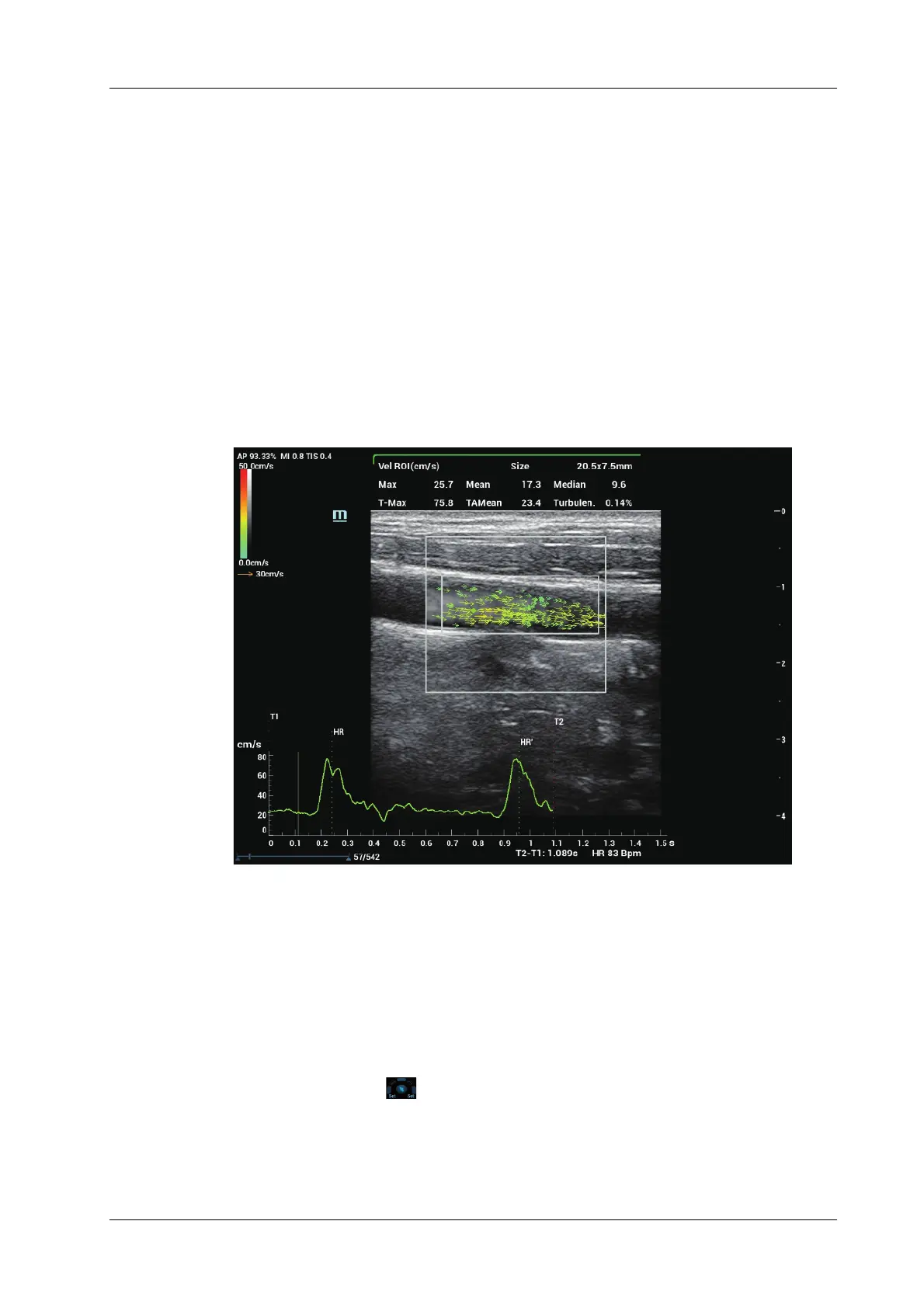

Mindray Resona 7T

To Next Page

To Previous Page

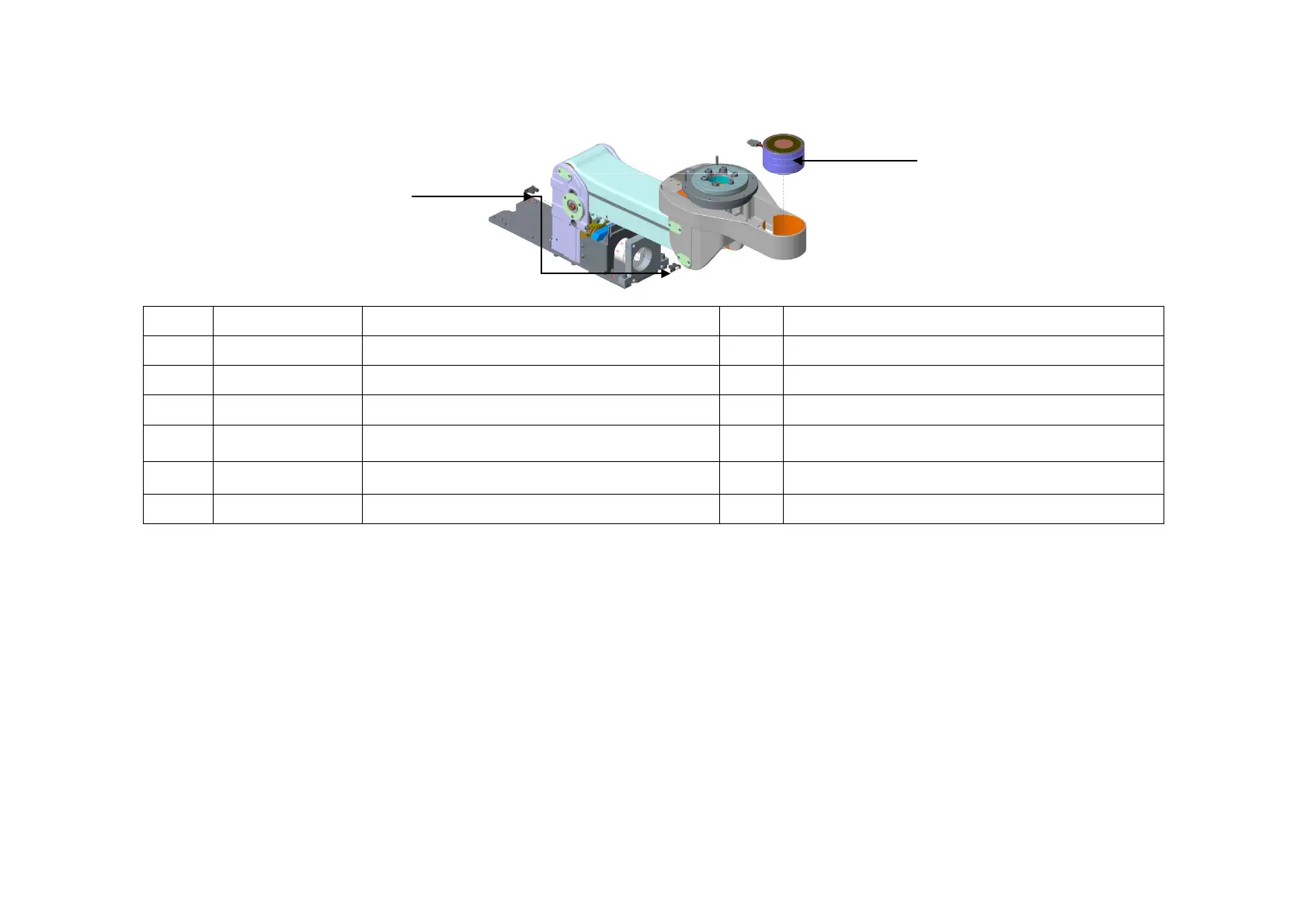

Field Replaceable Unit 8-19

No.

Order Number

Part Name

Qty.

Remark

D1-1 115-030222-00 moving mechanism lock assembly 1

D1-2

024-000694-00

electromagnet 24VDC 120kgf

D1-3 024-000722-00 Electromagnet 24VDC 75kgf 1

D3-1 011-000210-00 PHOTOELEC Optical Sensor 940nm 2

D5-1 011-000210-00 PHOTOELEC Optical Sensor 940nm 2

D5-2 024-000694-00 electromagnet 24VDC 120kgf 1

D5-1

D5-2
