Mindray Resona 7T User Manual

6 Image Acquisition
Operator’s Manual 6 - 45

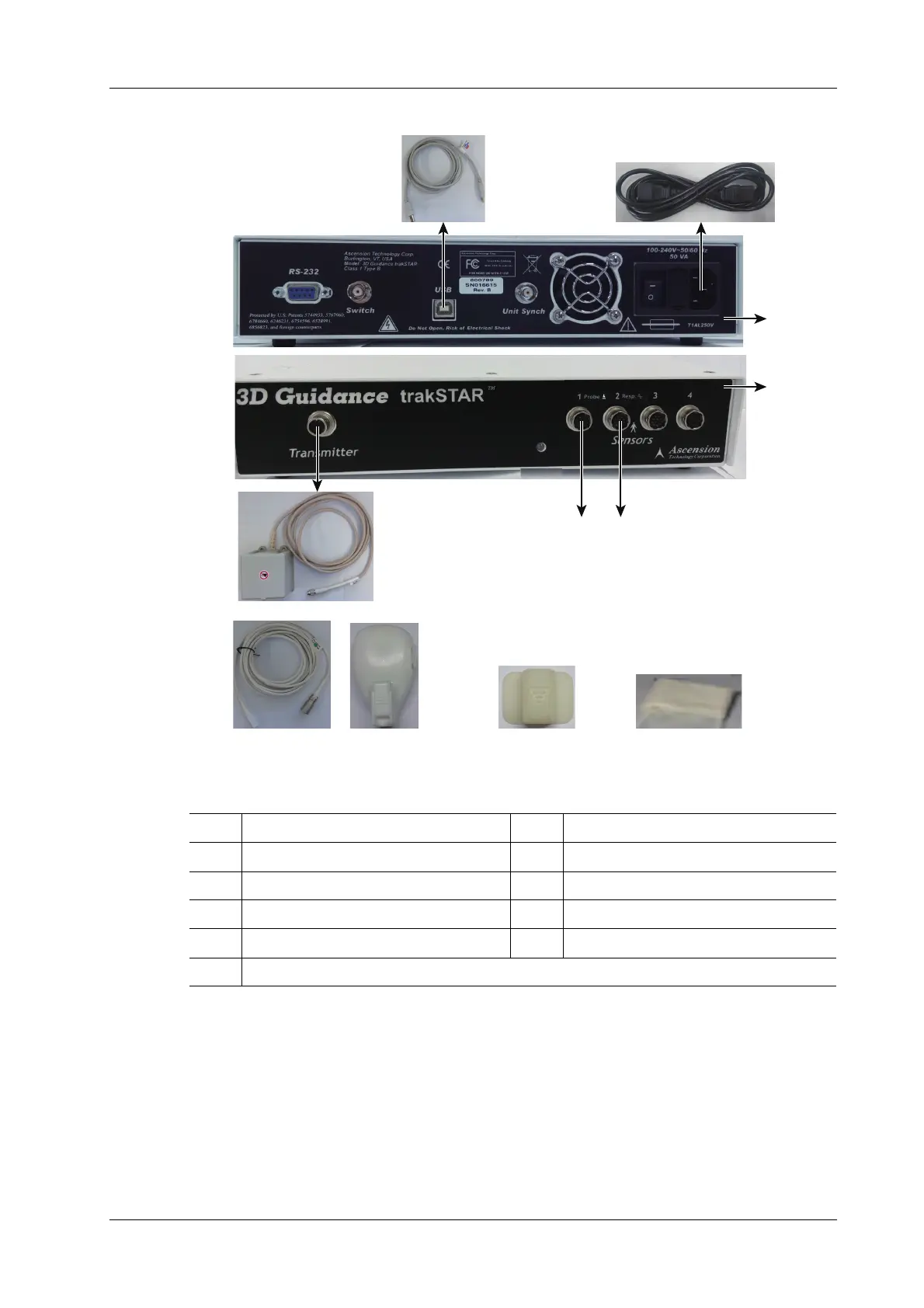

The description of the magnetic navigator is given in details. See the table below.
1 Auxiliary output power supply cable 2 USB Data cable
3 Magnetic generator 4 Positioning (probe) sensor port
5 Motion (abdomen) sensor port 6 Sensor (2)
7 Positioning (probe) navigation support 8 Motion (abdomen) sensor support
9 sterile sheath 10 Magnetic navigator (rear)
11 Magnetic navigator (front)
12
10
11
3
67 8
9
45
