13 Probes and Biopsy
5. Remove the needle-guided bracket:
a. Rotate the clamping nuts of the needle guided-bracket on right and left side (following the
direction of the arrow). The needle guided-bracket is separate from the probe.
b. Hold the probe and take out the bracket.
NGB-025 Metal-needle undetachable needle-guided bracket
Perform the following procedure:
1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.

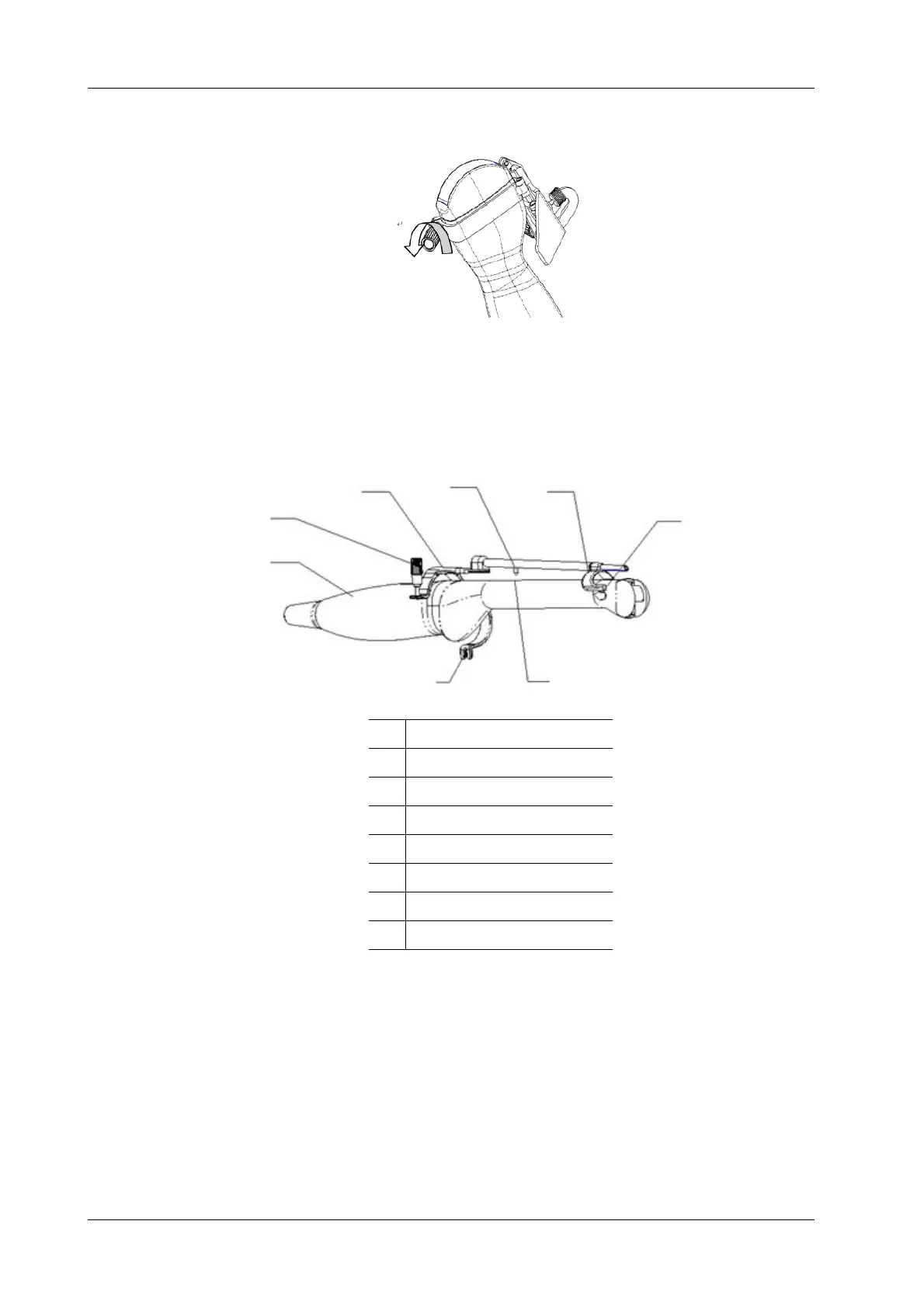

1Pinch nut
2 Intra-cavity probe
3 Lower clamp
4 Location hole
5Front slot
6 Front clamp
7 Location clamp
8 Upper clamp
1
2
34
5
678
