4. Device installation | 4.3 - Hardware construction | 45
4.3.5.6 Testing the measuring circuit
A simple test with the load cells connected can be carried out with a multime
ter.
Note:
In the case of an external load cell supply voltage or use of an isolating
unit, the internal load cell supply is not relevant.

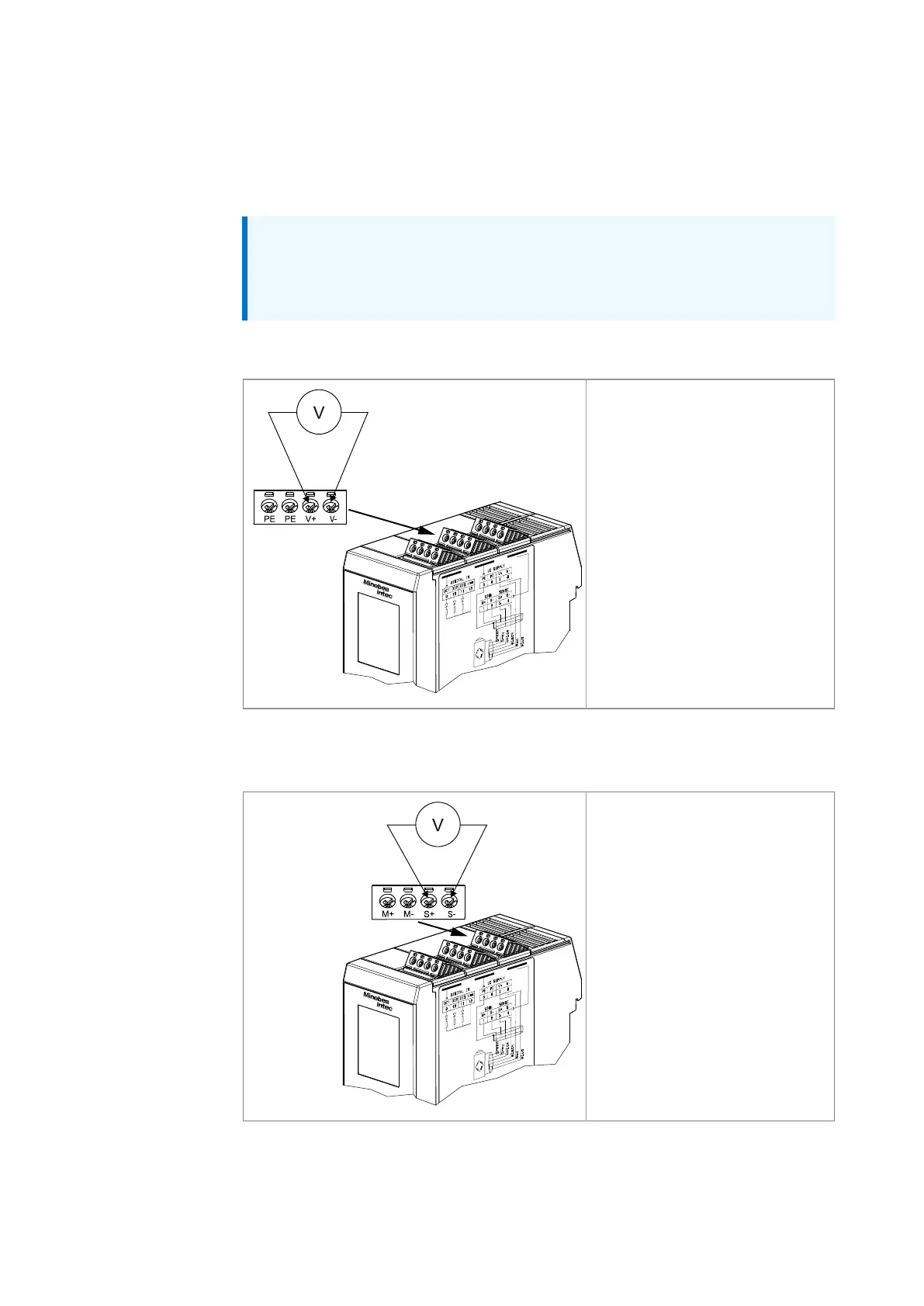

Supply voltage
5V±0.2V (symmetrical to
housing ground)
Sense voltage
5V±0.2V (symmetrical to
housing ground)
