2. Product presentation
MiR250 User Guide (en) 11/2020 - v.1.3 ©Copyright 2020: Mobile Industrial Robots A/S. 26

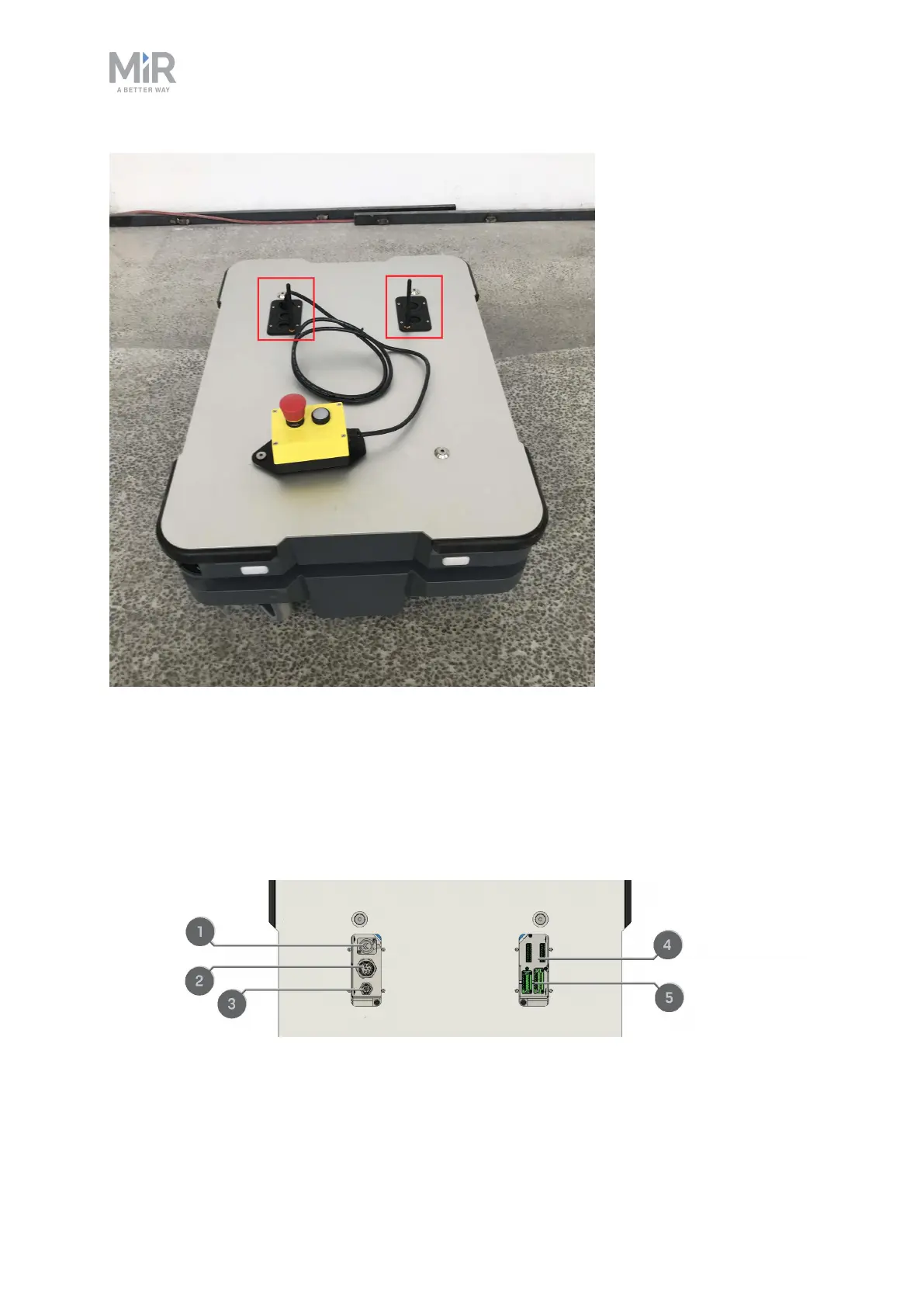

Figure 2.10. The top compartments on the robot.
Top compartment components
The top compartments interfaces are listed in Table 2.6. For detailed information on
electrical interfaces, see Interface specifications on page199.
Figure 2.11. Interfaces in the top compartments.
