Mirae Mx200 - Nozzle Unit

Chapter 4 Mx-Series Unit Description
4-31
1 2 3 4 5 6
8-station precision
ANC
1 2 3 4 5 6

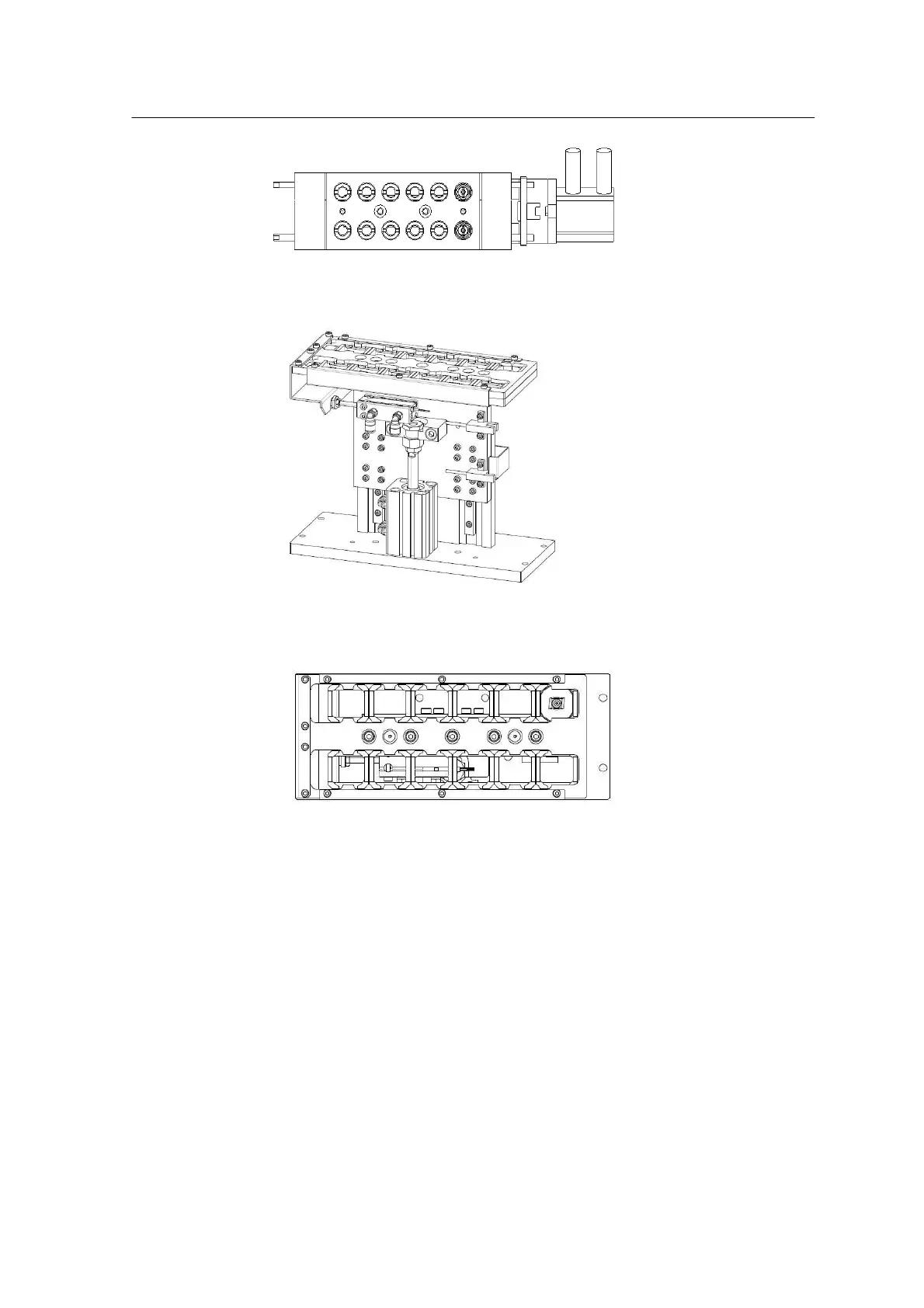

<Figure 4-16 Automatic Nozzle Changer
(ANC)>
Nozzle Unit
Several types of standard nozzle units are provided to pick and place
various components.
Standard Nozzle Unit
• Structure
The nozzle unit consists of nozzle, nozzle holder and nozzle socket.
7
8 9 10 11
12
7
8 9 10 11
12
