Mirae Mx200 - R-Axis Bearing Check

4- 32 Mx-Series Manual
R-axis Bearing check
 Module: Head
<Module Head>
1. Unplug the machine.
2. Check wear of the bearing and bush connected to the R-
axis while turning the nozzle shaft by hand.
3. If any defect in the bearing or bush is found while turning
by hand, contact the Mirae Customer Support Team.

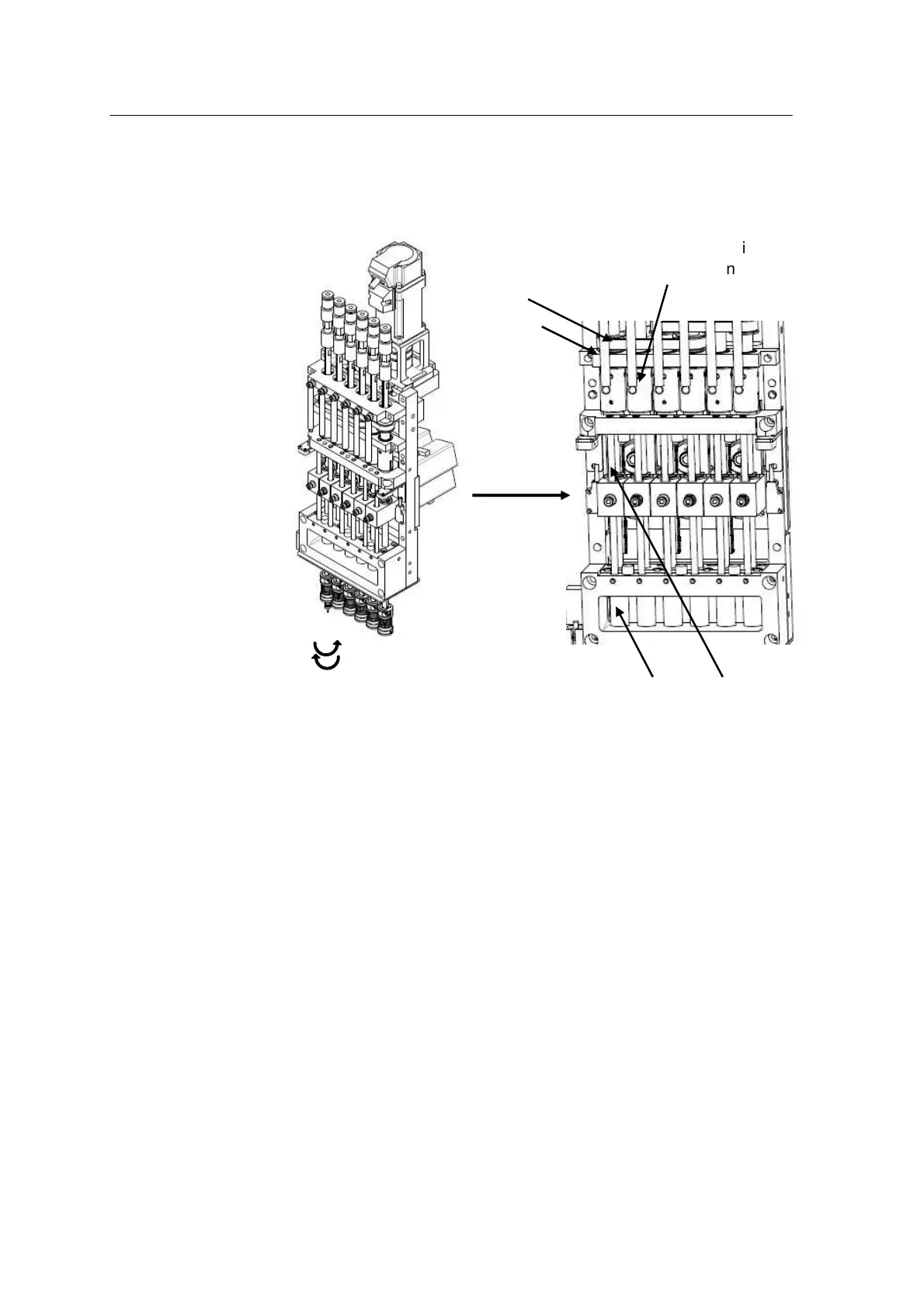

<Precision Head>
R
-
A
xis Splin
e
Bearin
g
R
-
A
xis Belt
Pulley Bearing
Bearing
Bush

Check Procedure
