Chapter 6 Programming 6-29
• General Tab: Sets package name or dimension.
• Vision Tab: Sets parameters related to camera or illumination.
• Others Tab: Sets axial speed, Pick & Place delay and nozzle type.
To register a component, the prefix of Package Name should be uniquely defined depending on
component type. Otherwise, the following message will be displayed (In this example, the prefix ‘R-
’ should be attached to Package Name.).

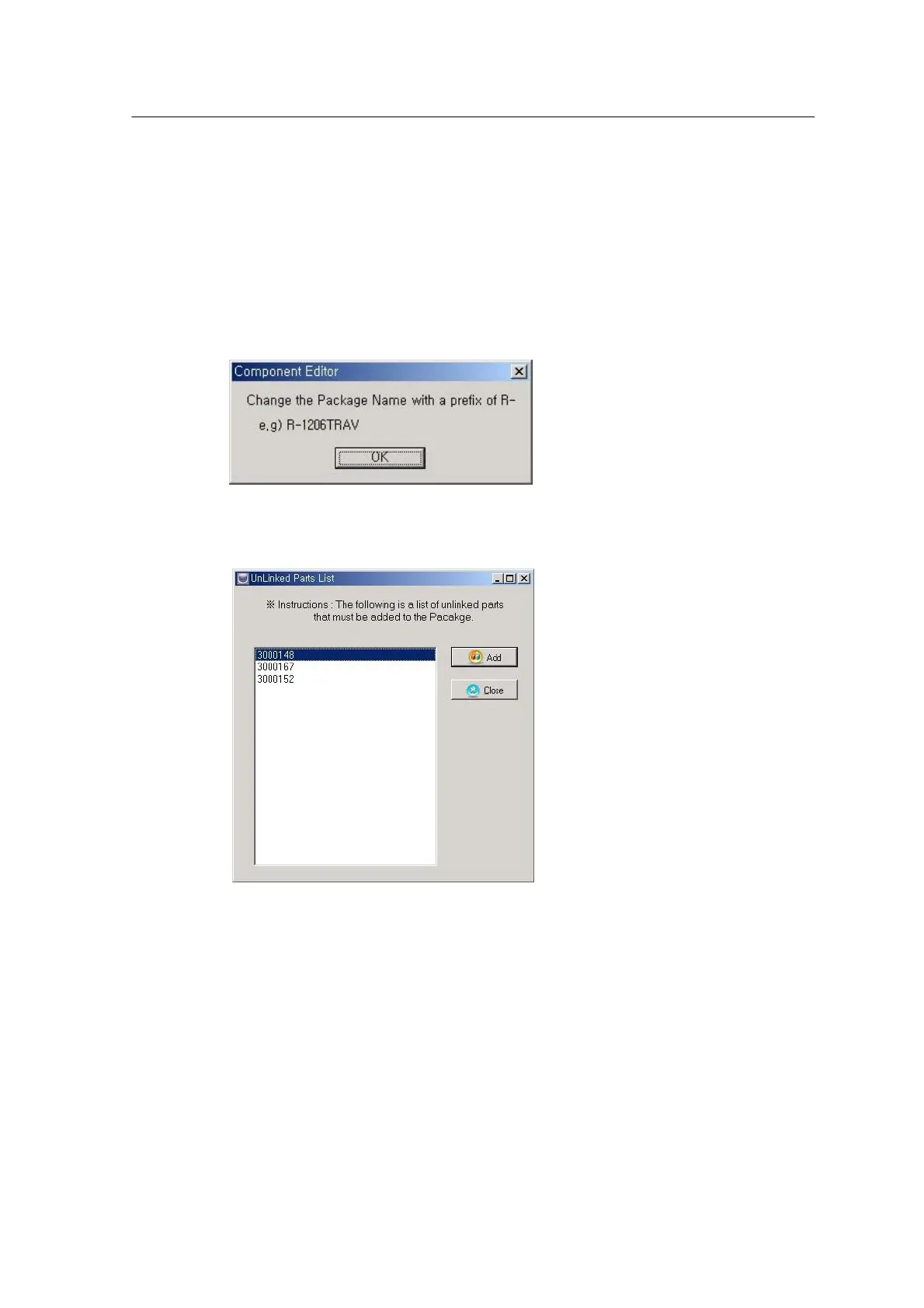

<Figure 6-30 가 Error message displayed when an incorrect Package Name is entered >
<Figure 6-31 가 Redefine parts after changing Package Name >
The Part Information window opens when the Add button is pressed. Search and redefine part with a
modified Package Name.
