2-2 Mx-Series Manual
FRONT

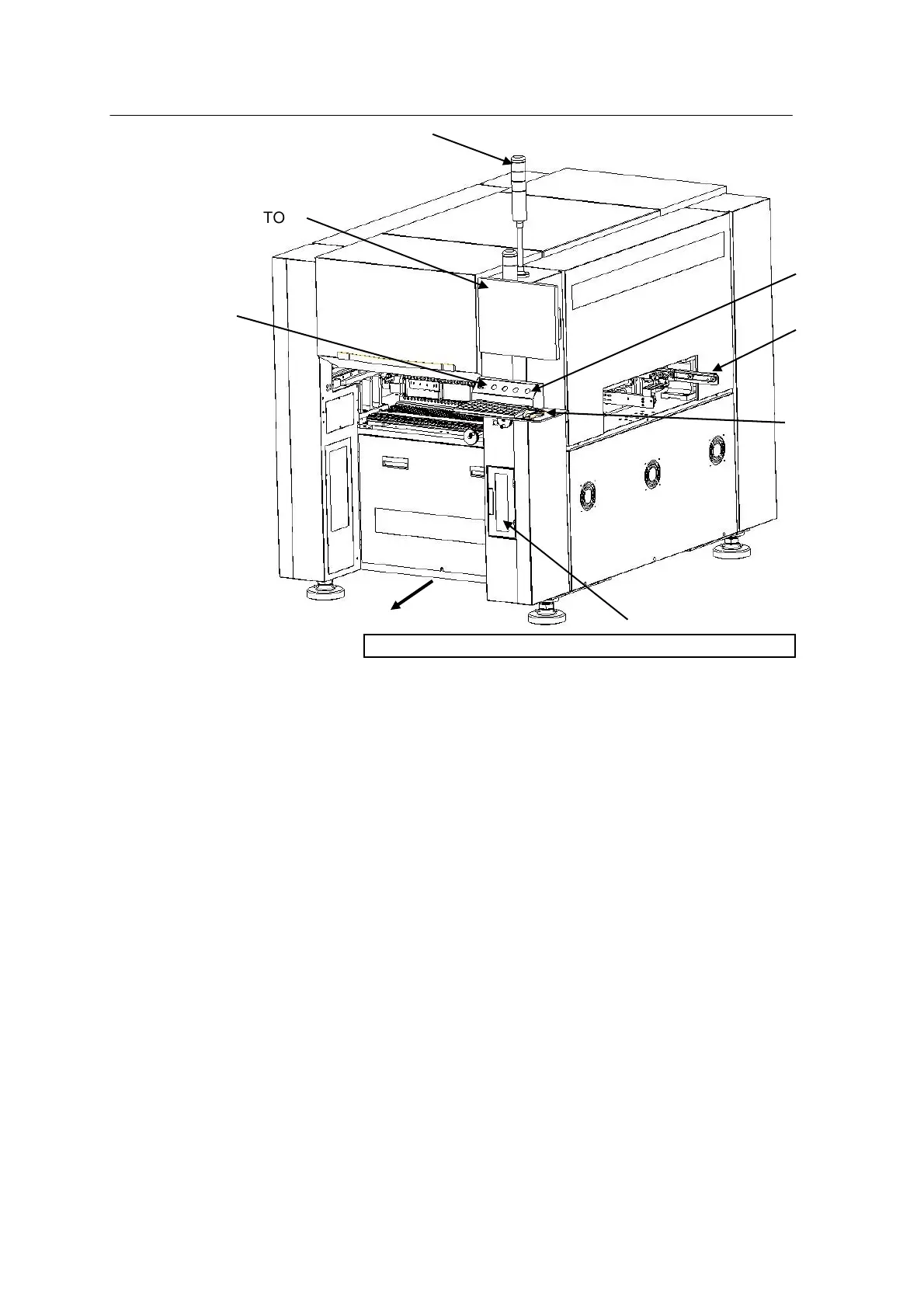

1.TOWER LAMP : Indicates machine malfunctions in three colors (red, yellow, green).
2.EMERGENCY SWITCH : Used to stop the machine in
emergencies
3.15ā LCD Monitor : Used for vision & PC monitor
4.OPERATING SWITCH : Configured ergonomically
5.KEYBOARD & MOUSE : Improves operability
6.COVER : Safety door designed for easy handling by one person
Mx100P,Mx200P/TP models: Rear door assembly modified when
TF-5 is attached to the rear
Mx100/P,Mx200/P/TP Models: Front door assembly modified when
MS-1 is attached to the front
Mx100/P,200/P/TP Interior Parts
