Mirae Mx200 - Page 298

2-10 Mx-Series Manual

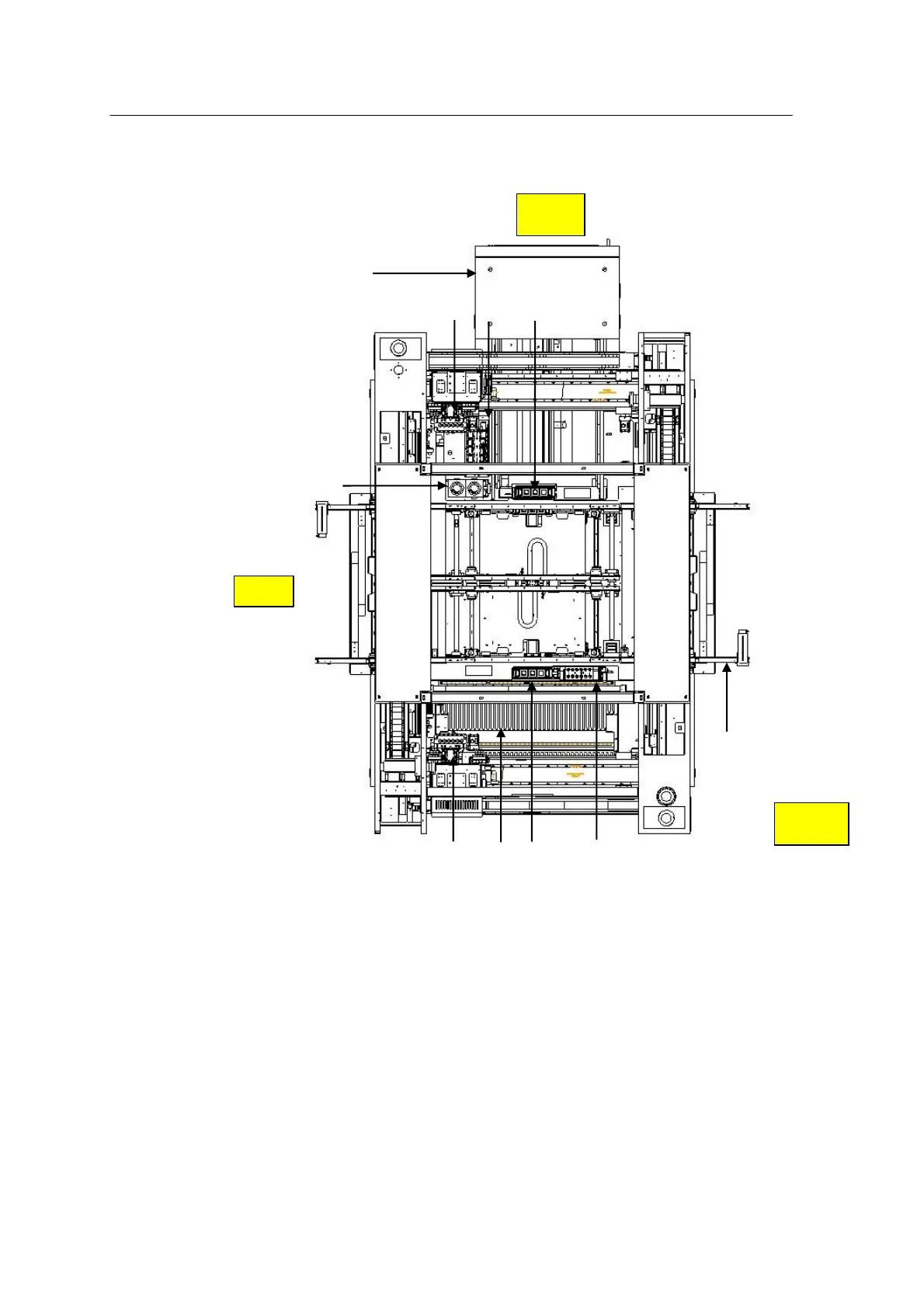

Mx400P(400PS) Interior Parts
RIGHT
① ⑧ ⑤ ③
FRONT
① Head Assembly(6 MOD + 3 Precision)
② Conveyer Assembly: Dual Conveyor (410x250,410x460mm)
Mx400PS : Single Conveyor(410x460mm)
③ Module ANC Assembly
④ P-ANC Assembly
⑤ FOV24 Standard Camera Assembly
⑥ FOV24 Side Camera Assembly (Module Camera)
⑦ FOV36 DQFP Camera Assembly (Precision camera)
⑧ Feeder Base Assembly
REAR
LEFT
①
②
④
⑥
IN
OUT
⑨
⑦
