Mirae Mx200 - MONTHLY CHECK (EVERY 500 HOURS)

4- 16 Mx-Series Manual

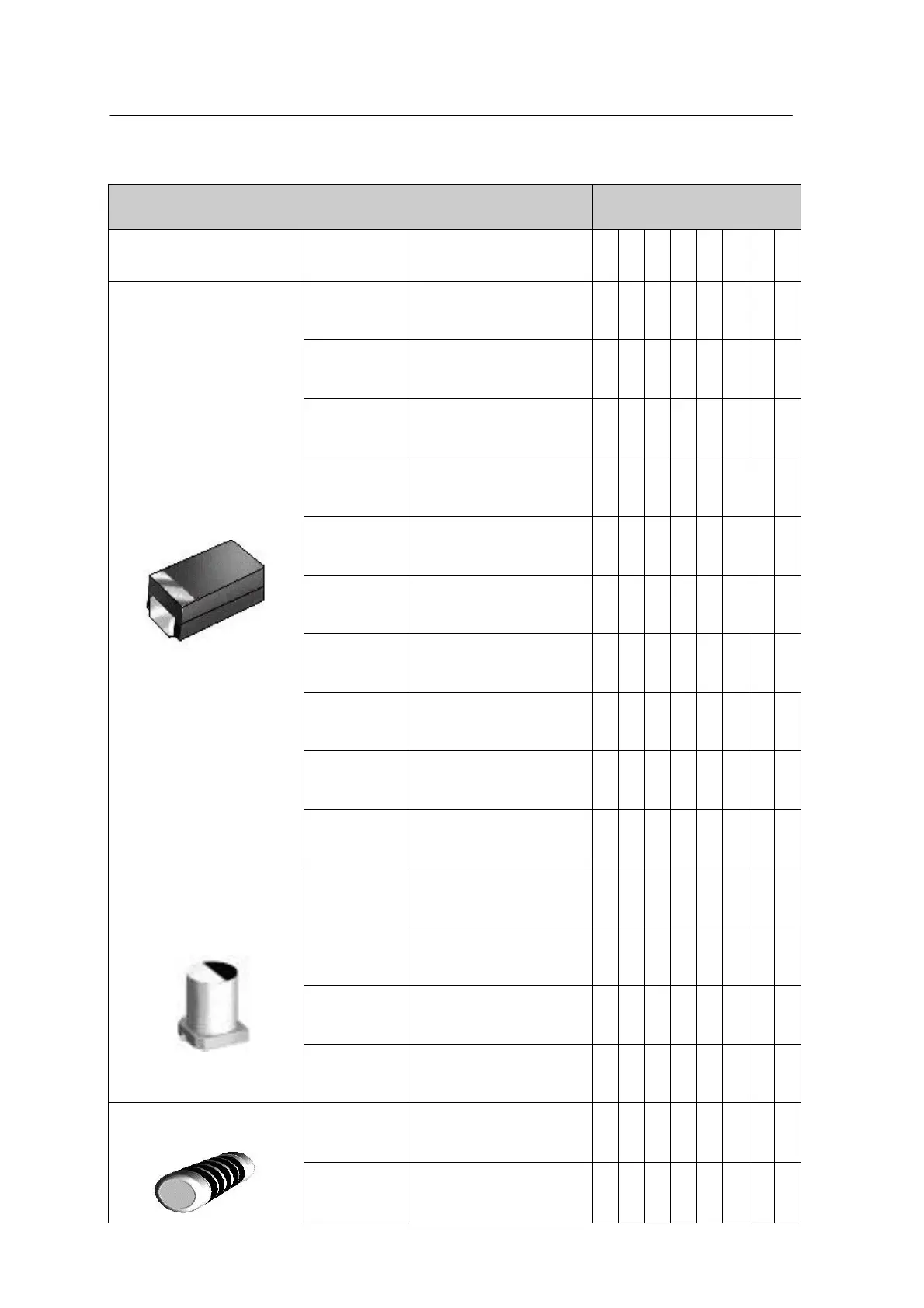

Chip Description
Nozzles used
Chip Type
Chip Code
Dimension
A
B-
1
C
D
E
P2-
1
A-
1C
H-
4C
Tantalum chip Capacitors
ETC-A
3.2mm x 1.6mm x
1.8mm
●
ETC-B
3.5mm x 2.8mm x
2.1mm
●
ETC-C
6.0mm x 3.2mm x
2.8mm
●
ETC-D
7.3mm x 4.3mm x
3.0mm
●
Tantal_8
8.0mm x 6.4mm x
3.5mm
●
Tantal_10.5
10.5mm x 8.0mm x
3.5mm
●
Tantal_3.2
bright
3.2mm x 1.6mm x
1.8mm
●
Tantal_3.4
bright
3.4mm x 1.6mm x
1.8mm
●
Tantal bright
5.8mm x 3.2mm x
2.8mm
●
Tantal bright
7.3mm x 4.3mm x
3.4mm
●
Aluminum Capacitors
ECV-A
Dia: 3.0mm Height:
5.7mm
●
ECV-B
Dia: 4.0mm Height:
5.7mm
●
ECV-C
Dia: 5.0mm Height:
5.7mm
●
ECV-D
Dia: 6.3mm Height:
5.7mm
●
MELF Resistors
Micro-MELF
Dia: 1.1mm Length:
2.2mm
●
Micro-MELF
Dia: 1.4mm Length:
3.6mm
●
