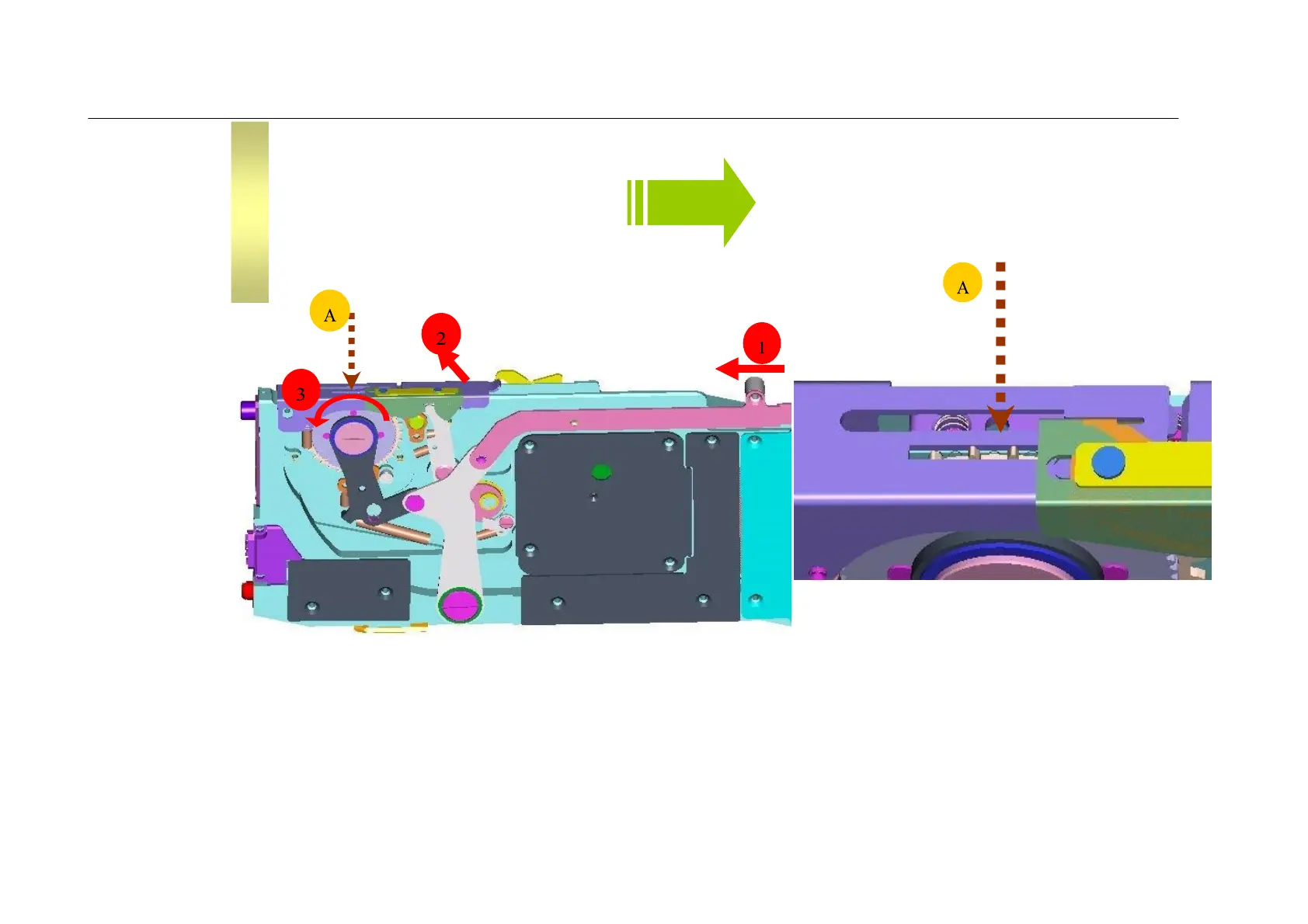

<How to check the feeding gear action>
• Move the manual feeding lever forward.
• Open the reel cover
• Turn the feeding gear with a hand.
 Check the feeding gear actionAdjust
the feeding gear  Remove foreign
substance from the feeding gear.
 Check latch position and action 
Check if feeding spring is cut off
<How to adjust the feeding gear> • Insert wrench
to A and unfasten the bolt.
• Fasten the bolt, while adjusting the gap between the
feeding gear and the frame.
• Check the load by checking the feeding gear action.
Cf. Be careful not to destroy the bolt head!!!!
Check the position of feeding gear assy spacer!!!!
Solution
Feeding gear does not turn.
(
Fails to feed or the pick up position moves
to -Y
)
