1-8 MS1 (Multi-Tray Supply Unit) Operation Manual)

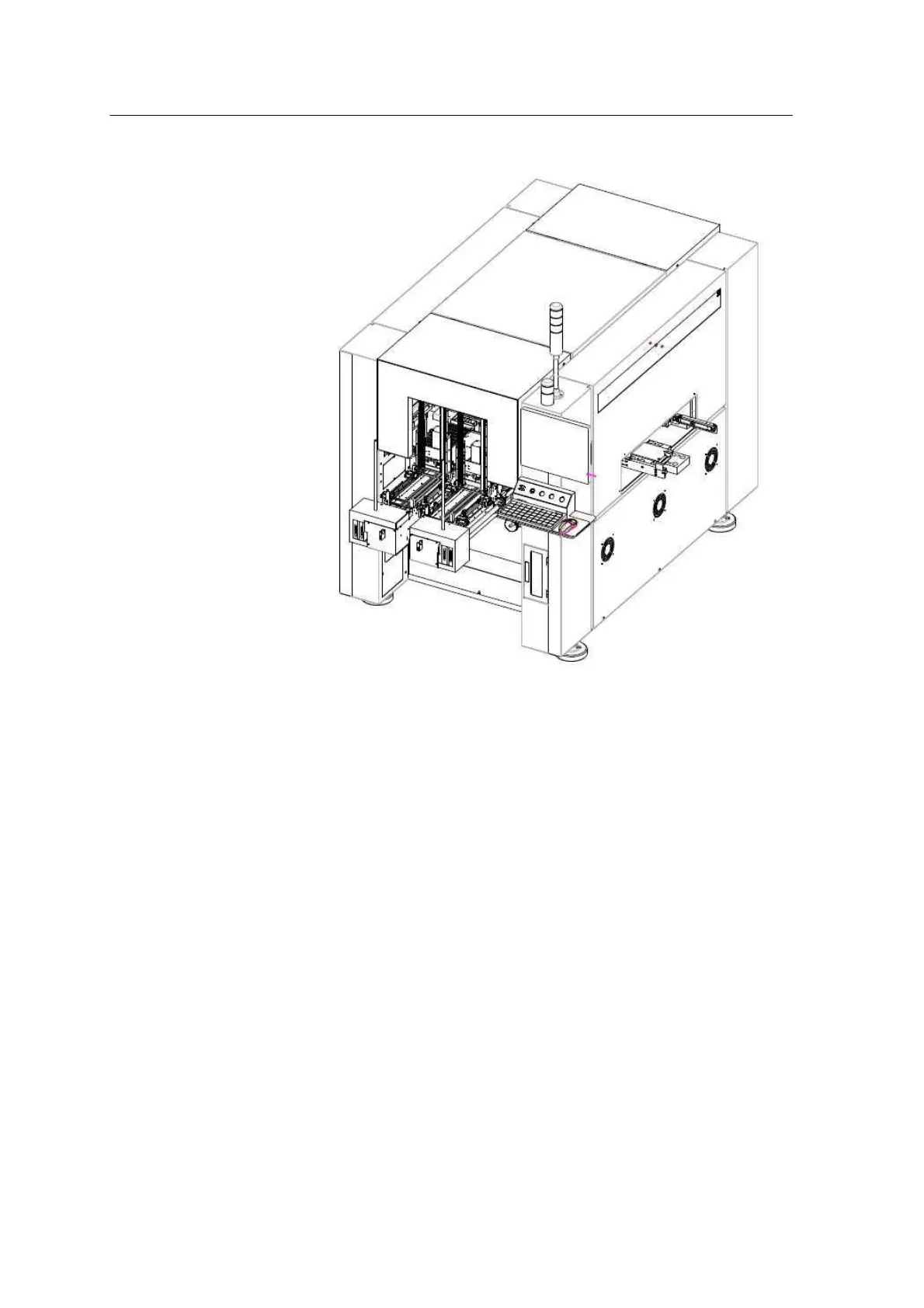

MX-Series machine equipped with MS1
Checklist for setup
1. Power connection
Since the MS1 (Multi-Tray Supply Unit) is powered by the Mounter,
connect the three connector cables provided by the MS1 to the
PWR/COMM/AIR connectors respectively.
2. Assemble the MS1 to keep the bottom plate edges of
MS1-L, MS1-R and the Mounter X Axis horizontal to 0.1mm.
