Installation
4.7.2.2 Primary rate interface PRI
Note:
• In normal operation the x.2 test socket must not be connected; otherwise faults may occur.
• Circuit type as per EN/IEC 60950: SELV
With the interface cards TIC-1PRI, TIC-1PRI-T1
45
and wiring adapters WA-1PRI, PRI network interfaces
can be made available at RJ45 sockets 1.1, 2.1, 3.1 and 4.1. For test purposes the PRI interface is also
routed in parallel to ports x.2. The possible RJ45 sockets are highlighted in colour in the figure below.

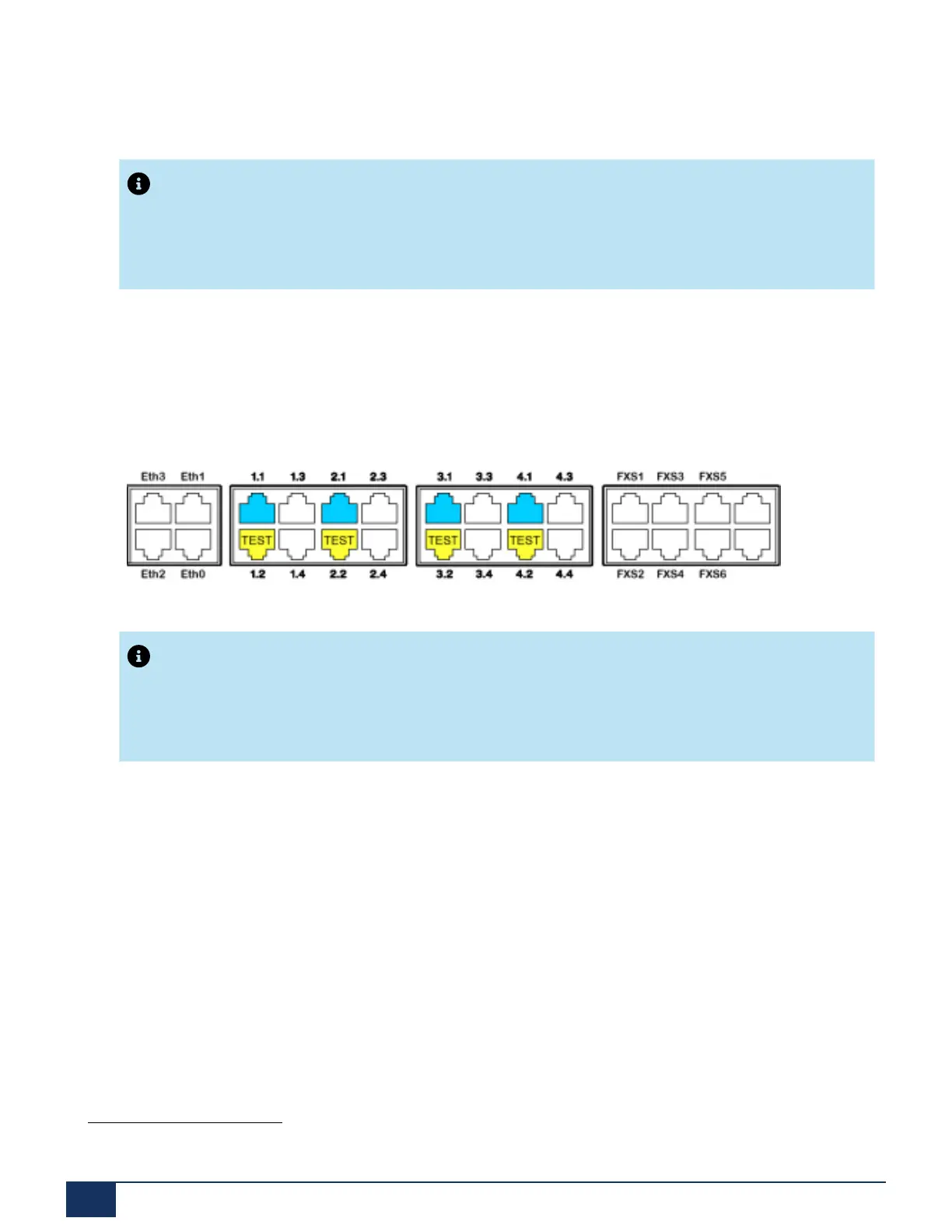

Figure 29: Connection possibilities for PRI network interfaces
Note:
• In normal operation the x.2 test socket must not be connected; otherwise faults may occur.
• Circuit type as per EN/IEC 60950: SELV
4.7.2.2.1 Cable Requirements
The connection to NT1 (Network Termination) is implemented using commercially available screened
cables with 8-pin RJ45 connectors at both ends, e.g. S-FTP 4P, PVC, Cat. 5e.
45
TIC-1PRI not for USA/Canada, TIC-1PRI-T1 only for USA/Canada.
Release 7.1
115 System Manual for Mitel SMB Controller
