Operation and Maintenance

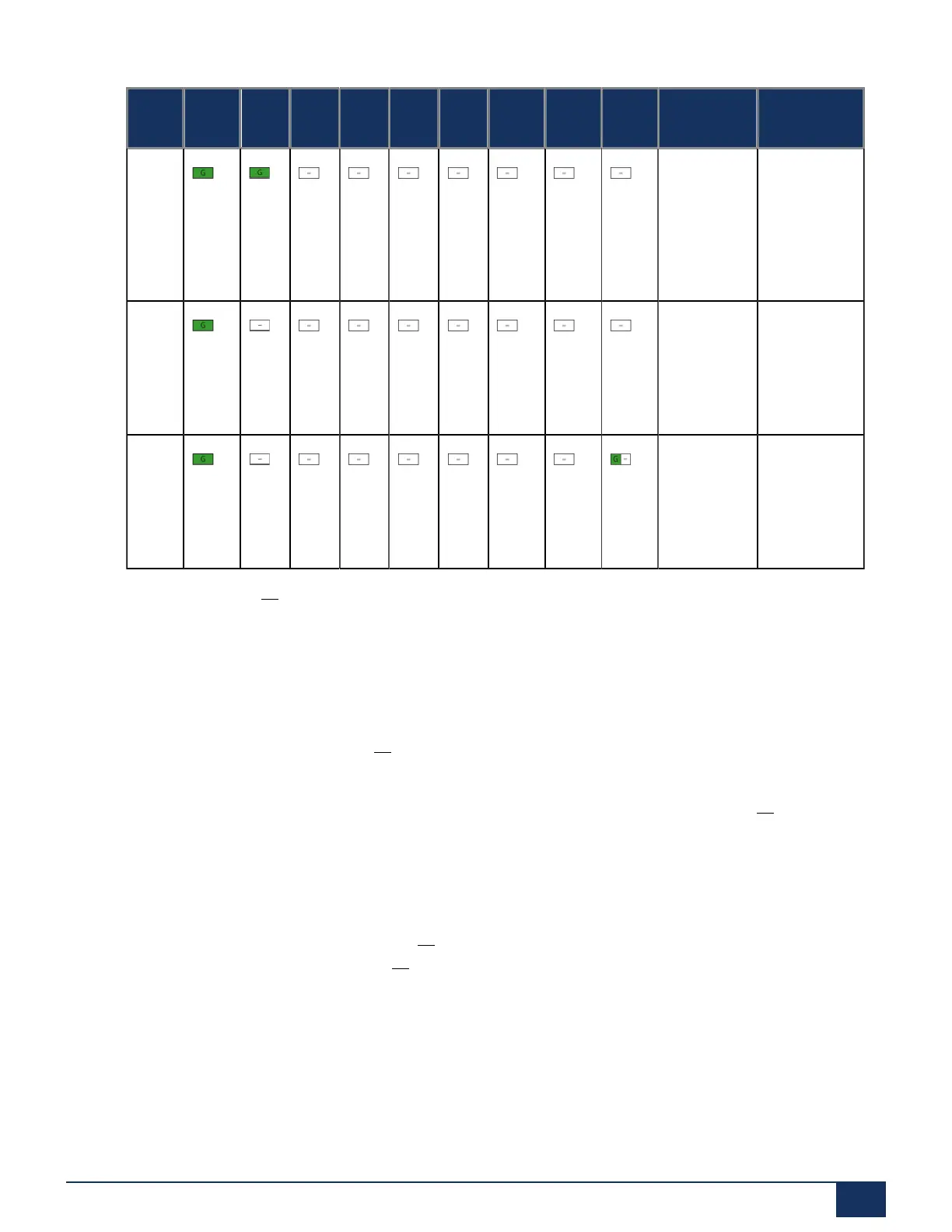

No. PWR F0 F1 F2 F3 F4 F5 F6 SYS Duration Meaning
[3] ~2 Time frame
to start
Factory
Default
of Call
Manager
[4] ~50 Loading
SMB
Controller
system
software
[5] Normal
mode, SMB
Controller
is up and
running
As soon as pattern [5] is showed, the start-up phase is completed and the SMB Controller is in normal
mode. You are able to log into the SMB Controller Manager. The MiVoice Office 400 application software is
now starting up and after a while you are able to log in to MiVoice Office 400 WebAdmin.
6.4.3.2 Normal mode
The SMB Controller is in normal mode when the SMB Controller system software is up an running without
error. The LED combination pattern [6] is displayed.
If there is a problem with the temperature inside the housing of the SMB Controller (overheating) and/or a
problem with the fan, it is signalled with the PWR LED turning from green to orange (pattern[7]). Details of
the problem can be found in the SMB Controller Manager.
If applications are loaded an running, there might be some additional information available, indicated with
the LED F0 - F6. Each LED is assigned to an application. The F0 LED is assigned to the MiVoice Office
400 application:
• If the F0 LED lights up orange (pattern [8]), the default IP address is active.
• If the F0 LED lights up red (pattern [9]), there is an error in the MiVoice Office 400 application.
