Installation

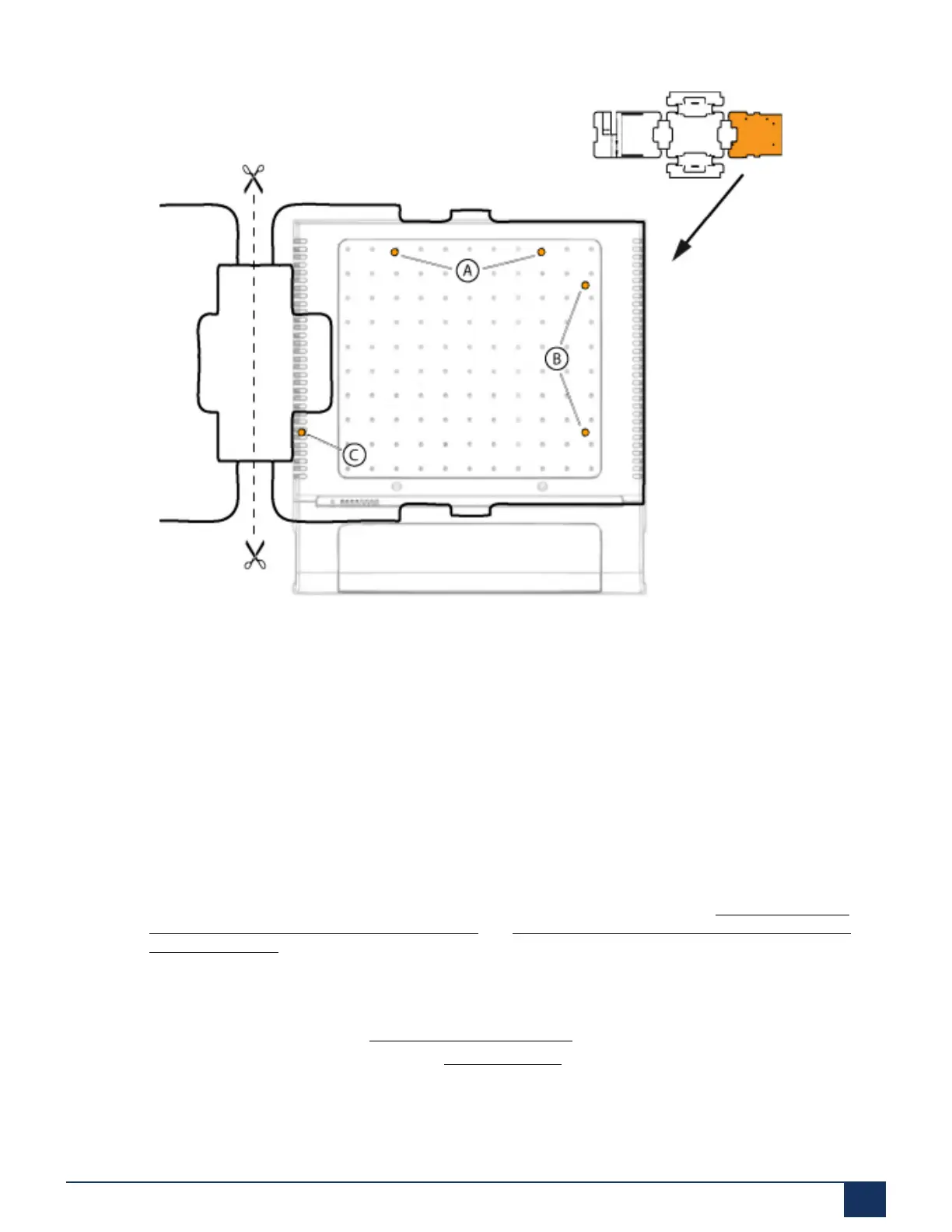

Figure 12: Drilling template
4.2.5.4 Wall-mounting procedure
Materials required:
• Screw set for wall/desktop installation
• 6 mm drill
• Screwdriver
To mount the communication server to the wall, proceed as follows:
1. Using the drill template or the instructions on the drill plan to mark out the three drill holes. Make sure
you observe the minimum distances to other objects, walls or ceilings as shown in Minimum distances
for wall mounting (front panel facing to the right) and Minimum distances for wall mounting (front panel
facing downwards).
2. Drill the three dowel holes.
3. Insert the dowel plugs.
4. Screw in the two shorter upper dowel screws (position A or B). Observe the distance between the screw
heads and the wall as shown in Drilling plan for wall mounting.
5. Shut down the communication server (see Shut-down mode) and disconnect it from the power supply.
Release 7.1
System Manual for Mitel SMB Controller 90
