FX-20P-E Handy programming panel Notes to Users 1
1-2

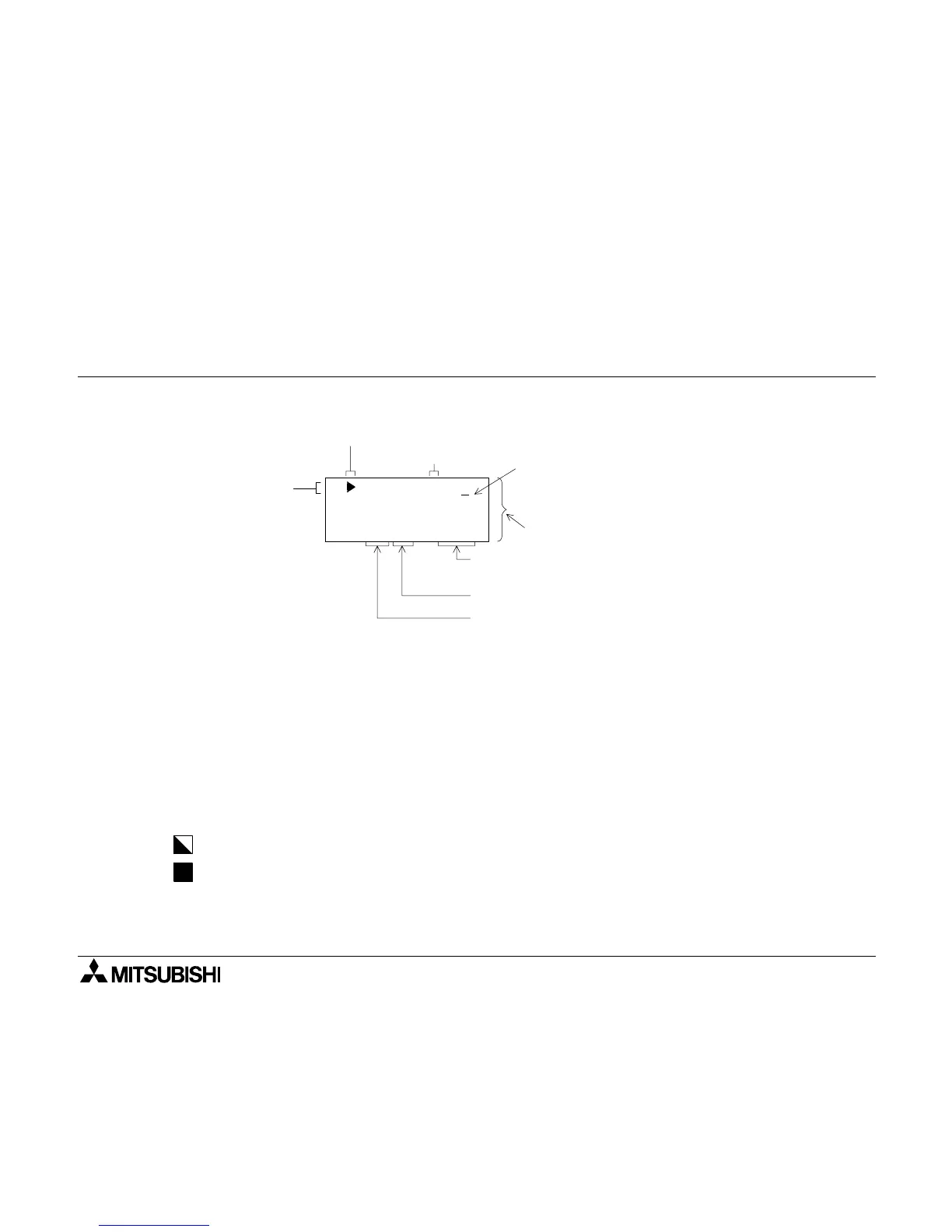

1.1.3 Screen display during programming
R 100
101
104
LD
OUT
LDI
M 10
T 5
K 130
X 003
Prompt:Shows the position where the data is to be
keyed in.
The prompt disappears when data input
operation has been completed.
Device number: When an applied instruction is used,the
number of the designated application
instruction is displayed.
Instruction
Step number: Automatically displayed in the input operation.
(One step uses 2 bytes.)
Device symbol
Line cursor : Shows the current execution line.
Function mode display
The current function is
indicated by one character.
R
W
I
D
M
T
= Read
= Write
= Insert
= Delete
= Monitor
= Test
16 characters
×
4 lines
: Flashes.
: Lit.
Instruction types
- Basic instruction
- Step ladder instruction
Input by an instruction on
the HPP keyboard.
- Application instruction
Input by the [FNC] key and
the FNC number.
Program creation method
Create programs by using the following classification
of instruction list: basic, step ladder or application
Cursor indication
The cursor displayed on the screen is represented by
the following notation.
