FX-20P-E Handy programming panel Write 5
5-21
5.8 Modification of device
• One to eight digits can be specified.
One digit uses 4 bits, and 8 digits use 32 bits.
• "Z" and "V" indicate index registers.
An index register is added to a device to decorate the device No.

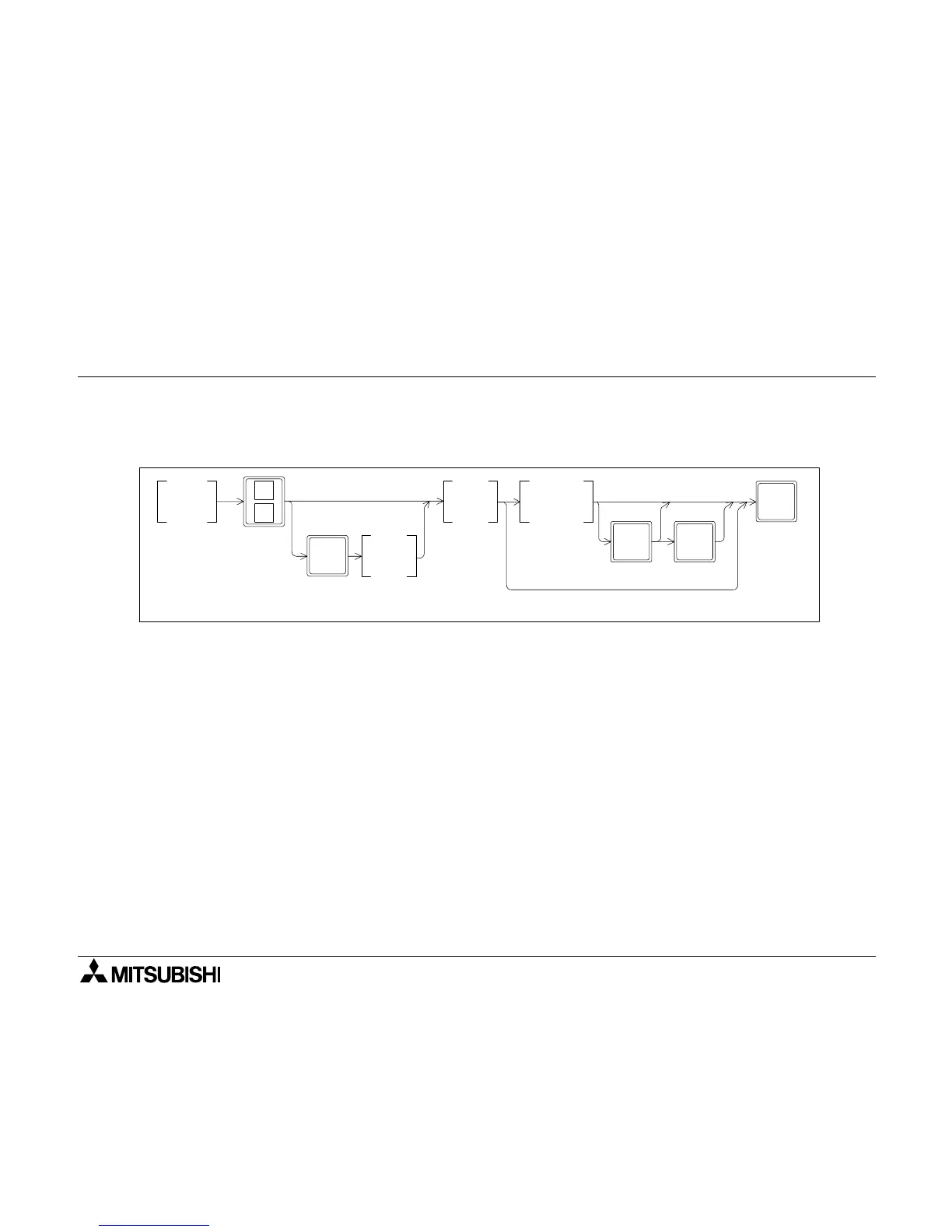

Basic operation
GO
K
Numeric
value
Z
V
When the device is Z or V
When specifying
the digit
When not specifying
the digit
Index decoration
↑
↓
Write
function
Device
No.
Device
symbol
