Mitsubishi FX-20P-E User Manual

FX-20P-E Handy programming panel Read 4
4-3
4.3 Read by instruction
• For an application instruction, press the [FNC] key and input the FNC No.
in the way "[FNC][D][1][2][GO]", "[FNC][1][2][GO]" etc. Both instructions are searched
regardless to input of the pulse symbol "P".
• The specified instruction word is searched from the step No. 0 in turn, and four lines are
displayed on the screen from the first found instruction.
• Press the [GO] key again to search for the instruction with the same condition from the next
step of the currently found step.
• If all specified instruction words have been found or if a specified instruction word is not
found at all, the message "NOT FOUND" is displayed. Program lines after the END
instruction are not displayed.
• Use the cursor control keys to read the program step by step. The cursor keys function in
the same way even while the program is read by pointer or device mode.

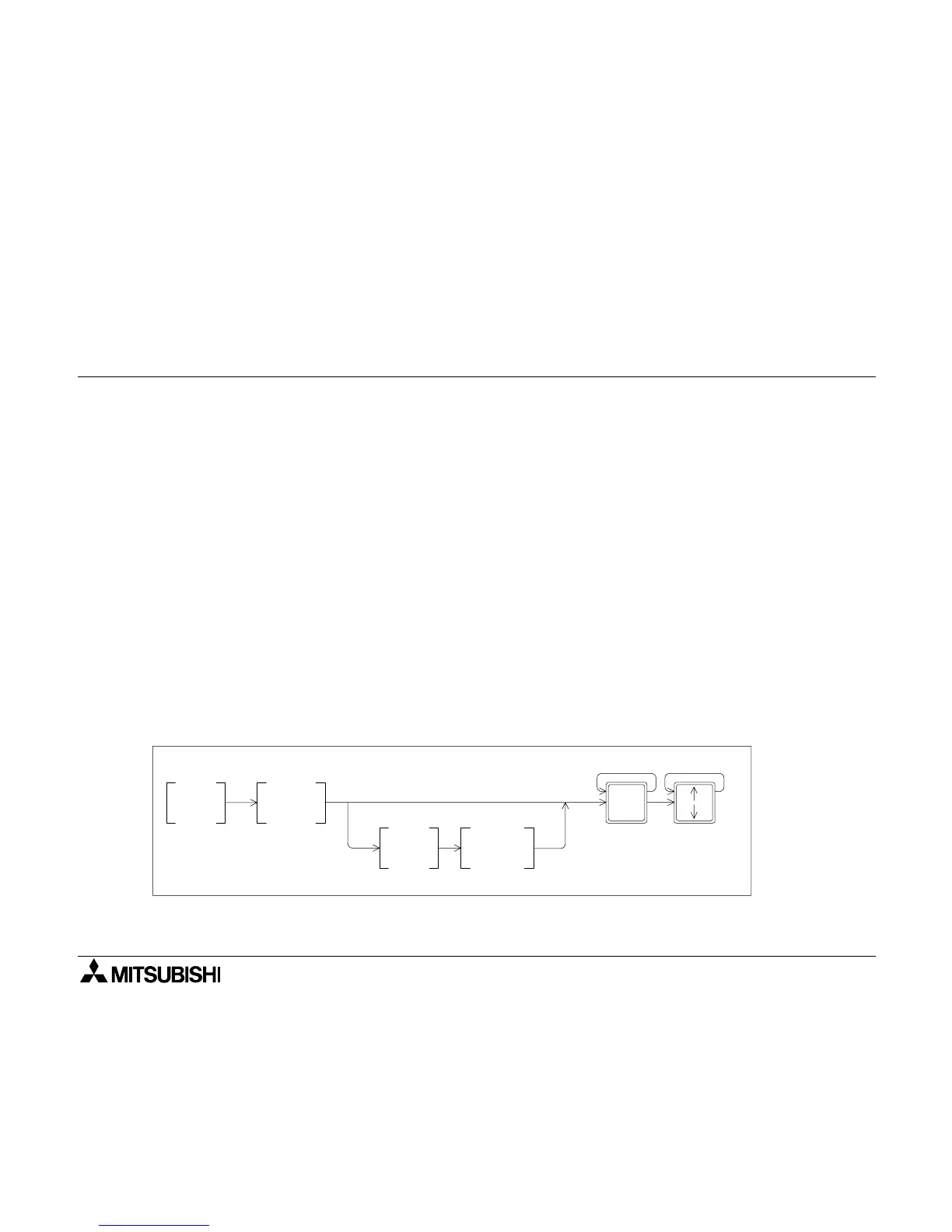

GO
Instruction requiring a device
Basic operation
Device
No.
Instruction not requiring device or
application instruction
Read the
program step
by step.
Search again
Read
function
Instruction
Device
symbol
