5.7 Modification method (before/after determination)
A input program can be modified before determination (before the [GO] key is pressed) or after
determination (after the [GO] key is pressed.)
Before determination, press the [CLEAR] key, then enter the correct contents again from an
instruction. After determination, move the cursor to a line to be modified, then enter the correct
contents.

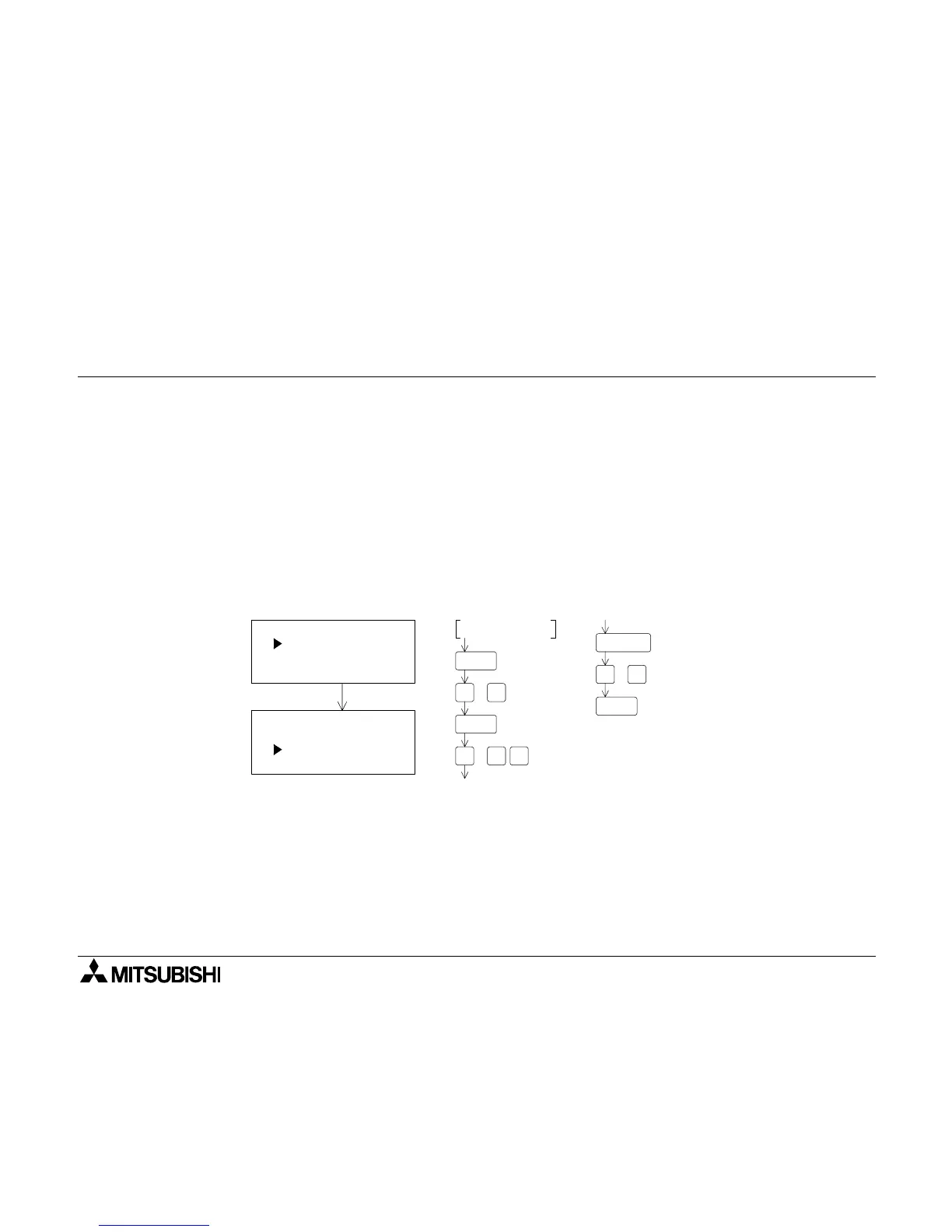

Example 1: Modifying "K10" to "D9" in the "OUT T0 K10" instruction (before determination)
• Press the [CLEAR] key once to cancel the second device.
• Press the [CLEAR] key twice to modify the contents from the step No. 7.
W 7
10
11
OUT
K
NOP
NOP
T 0
10
W 7
10
11
OUT
NOP
NOP
T 0
D 9
In the step 5)
T 0
OUT
S'P
1K
1)
2)
3)
4)
5)
Display example
In the step 8)
0
GO
D
CLEAR
9
6)
7)
8)
Key operation
Write function
