Mitsubishi FX-20P-E - Batch Write of NOP to Specified Range

FX-20P-E Handy programming panel Write 5
5-13
5.6.1 Batch write of NOP to specified range
Example: Batch-writing the NOP instruction in the range from the step No. 1014 to the step
No. 1024
• Move the cursor to the start step from which the NOP instruction is to be written. At this
time, write is disabled in lines without the step No.
• If a specified end step No. is a jump No., the end of the instruction is registered as the end
step.
W 1012
1013
1014
1015
ANI
OUT
NOPK
OR
X 013
M 15
1024
M1000
W 1014
1015
1016
1017
NOP
NOP
NOP
NOP
In the step 4)
K
↑
GO
↓
NOP
1 0 2 4

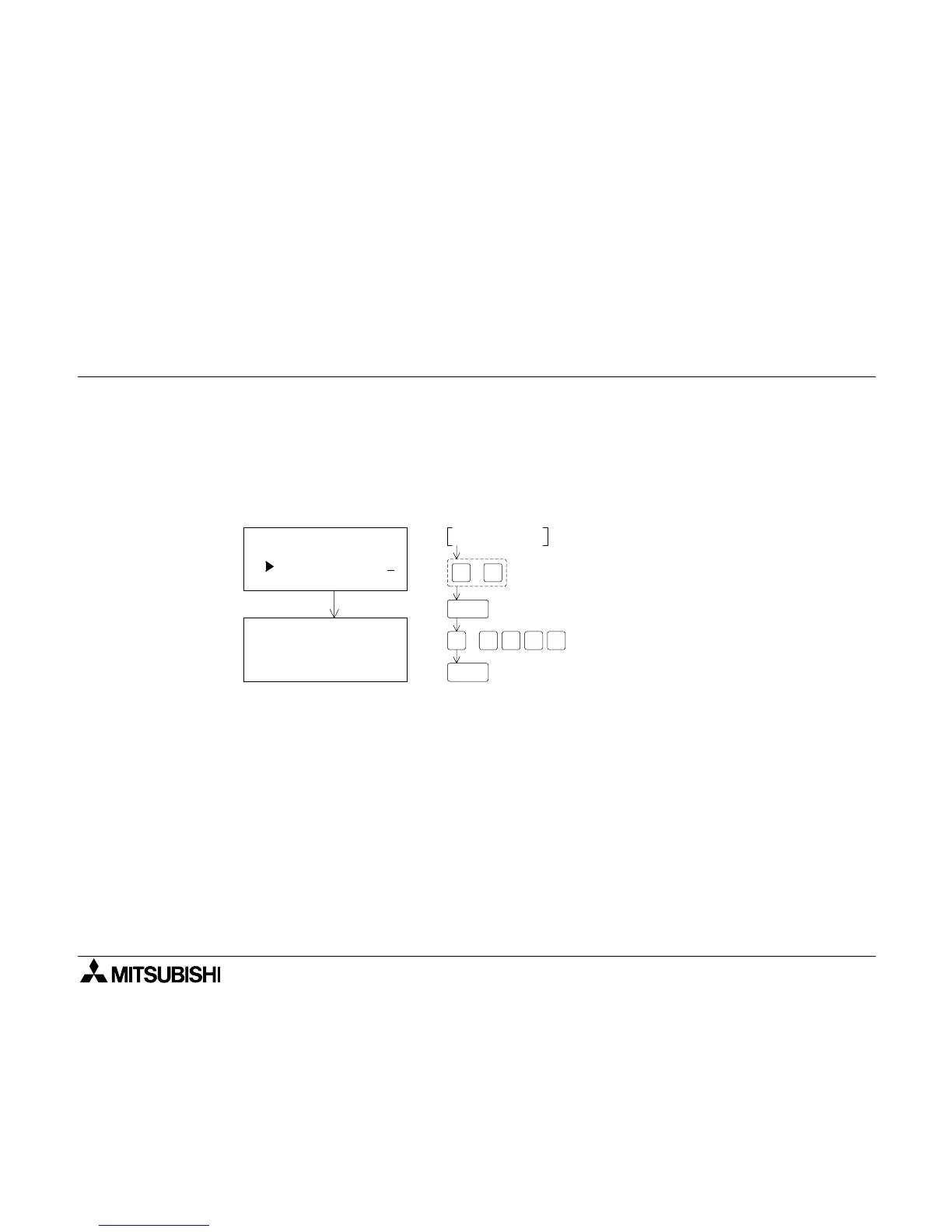

Display example
In the step 5)
1)
2)
3)
4)
5)
Key operation
(Press these keys to move the cursor to the
step No. 1014.)
Write function
