4 Measurement Method
(Short press) / (Long press)
●
Minimum value (Min) display
The minimum value is always displayed relative to the displacement of the
measured value. [Min] blinks when the minimum values are updated.
Tolerance judgment results are displayed with respect to the minimum value.
Tips
• In absolute measurement, it is possible to preset any minimum value and perform
measurement based on that position. For preset settings, refer to
"4.1.1 Set ting
Origin and Preset Values" on page 22 in "4.1 Absolute Measurement (ABS)".
• If the pointer on the analog bar exceeds the display range with respect to the
displacement of the measured value, the pointer automatically returns to the center
position.
2
3
1
F1 F1 F1
F1
F2

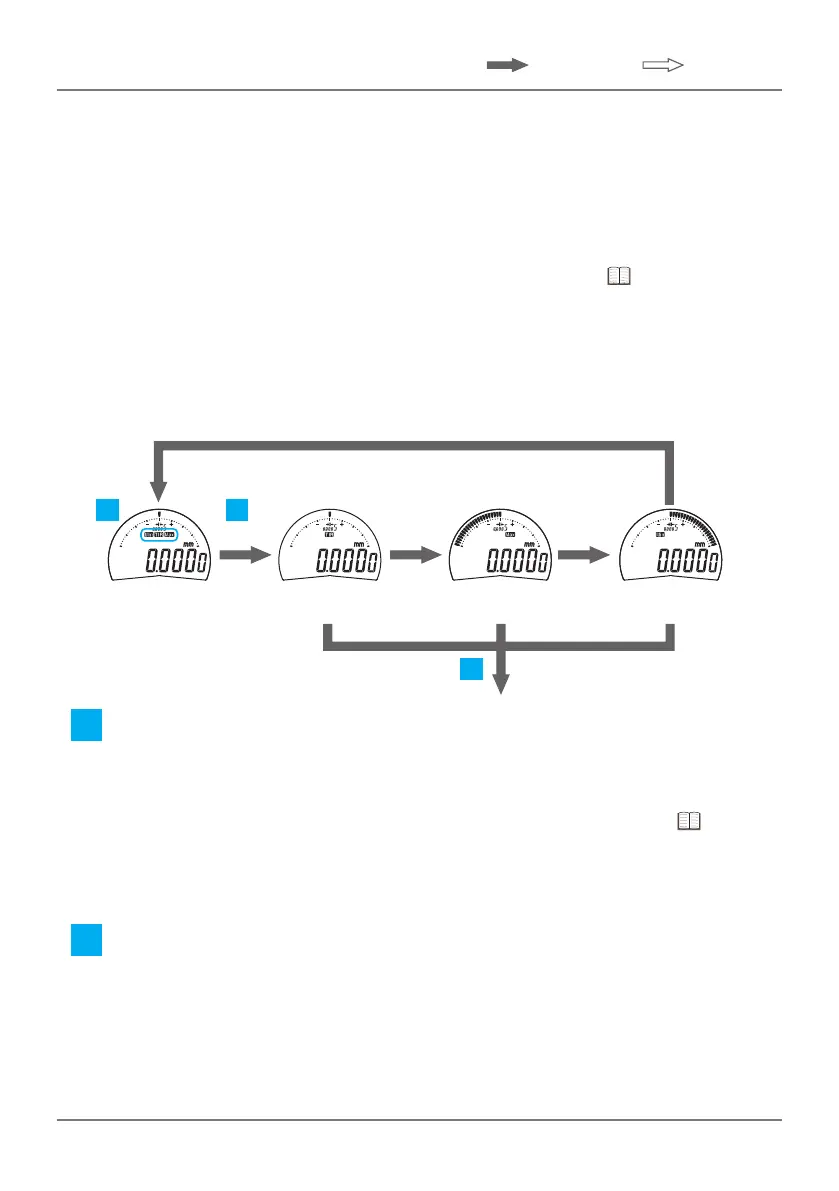

Current value
display
Runout width
(TIR) display
Maximum value
(Max) display
Minimum value
(Min) display
1 Make sure that the measurement mode is set to peak detection (peak
detection display is lit).
Tips
• For details on switching the display method in measurement mode, refer to "5.2
Selecting Measurement Mode" on page 40.
• Peak detection begins once the display method in measurement mode switches to
peak detection.
2 Press the [F1] key to switch to peak detection display.
» Each time the key is pressed, it will switch the peak detection display.
