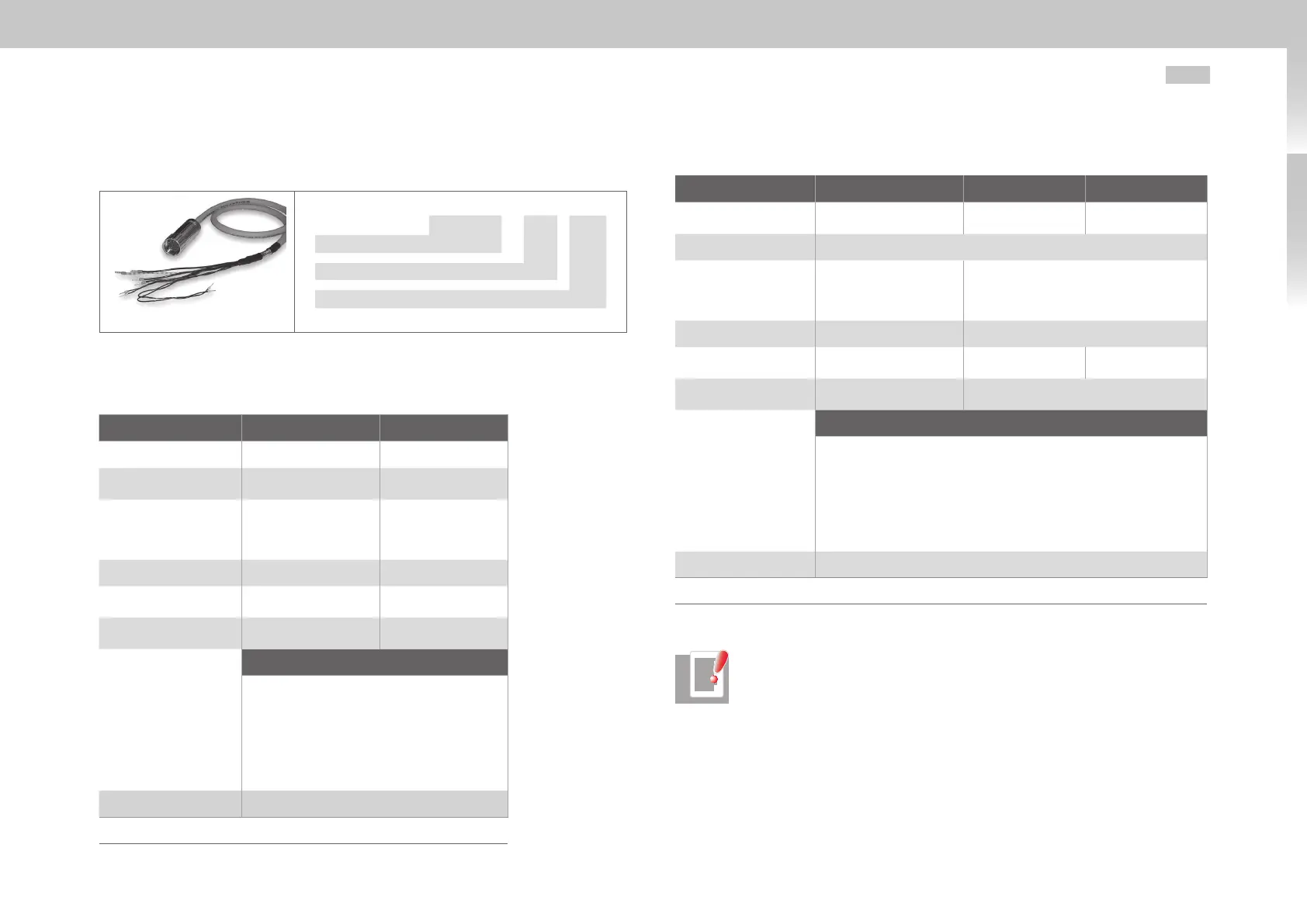

3.14.2 Ready made-up motor cable
C08336 - xxx yyy
1)
Ready made-up motor cable
Configuration option
Cable length (m)
1) yyy stands for length in meters; standard length: 1 m, 5 m, 10 m, 15 m, 20 m, 50 m. Further length on request
Motor cable C08336-xxx-yyy Order code
Technical data motor cable
Technical data C08336-xxx-yyy
1) 2)
CB05708-xxx-yyy
1) 2)
Continous rated current 10A TBD
Surge current
30A (90s at +72.7°C)
(+162.9°F)
TBD
Minimum bend radius
In fixed installation:
60mm
In flexible use:
120mm
TBD
Cable diameter range 9 to 14.4mm TBD
Cable cross-section
4x1.5mm²+
2x1mm²
4x4mm²+
2x1.5mm²
Temperature range
-50°C to +90°C
(-58°F to +194°F)
TBD
Wiring
Connector pin / Wiring
2 / U
4 / VV
1 / WWW
PE / yellow; green
5 / Brake +; white
6 / Brake -; black
Connector housing / Screen
Connector type Size 1
2)
xxx-001 for standard configuration option, others on request
Table 3.18 Technical data motor cable (Connector type Size1)
Technical data C08733-xxx-yyy
1) 2)
B47916-xxx-yyy
1) 2)
CA98676-yyy
1) 2)
Continous rated cur-
rent
44A 61A 82A
Surge current TBD
Minimum bend radius
In fixed installation:
60mm
In flexible use:
120mm
TBD
Cable diameter range 16.2 ±3mm TBD
Cable cross-section
4x6mm²+
2x1mm²
4x10mm²+
2x1.5mm²
4x16mm²+
2x1.5mm²
Temperature range
-50°C to +90°C
(-58°F to +194°F)
TBD
Wiring
Connector pin / Wiring
U / U
V / VV
W / WWW
PE / yellow; green
+ / Brake +; white
- / Brake -; black
Connector housing / Screen
Connector type Size 1.5
1)
xxx-001 for standard configuration option, others on request
Table 3.19 Technical data motor cable (Connector type Size1.5)
NOTE: Strands 5 and 6 (PTC) are only required for motors with optical sensors
(G12, G13, G6, G6M). On the servo motors with resolver PTC-monitoring is
connected via the resolver cable.
