2.2.3 Connection of cooling circuit
Depending on size the MSDServoDriveAC-AC has a liquid coolant capacity of up
to 0.5l. After disconnecting the connections residual liquid may remain in the device
and run out when tipped over. We recommend to use a drip free liquid coupling (not
included in the scope of supply), to prevent liquid coolant from running out and to
enable disconnecting and connecting in filled condition.
1
2
3
4
5
Legend
1) Liquid connection with 3/8 inch female thread
2) Drip free quick-release nipple with 3/8 inch male thread
3) Drip free liquid coupling
4) Adapter for hose connection
5) PuR (polyurethane) hose with hose clamp

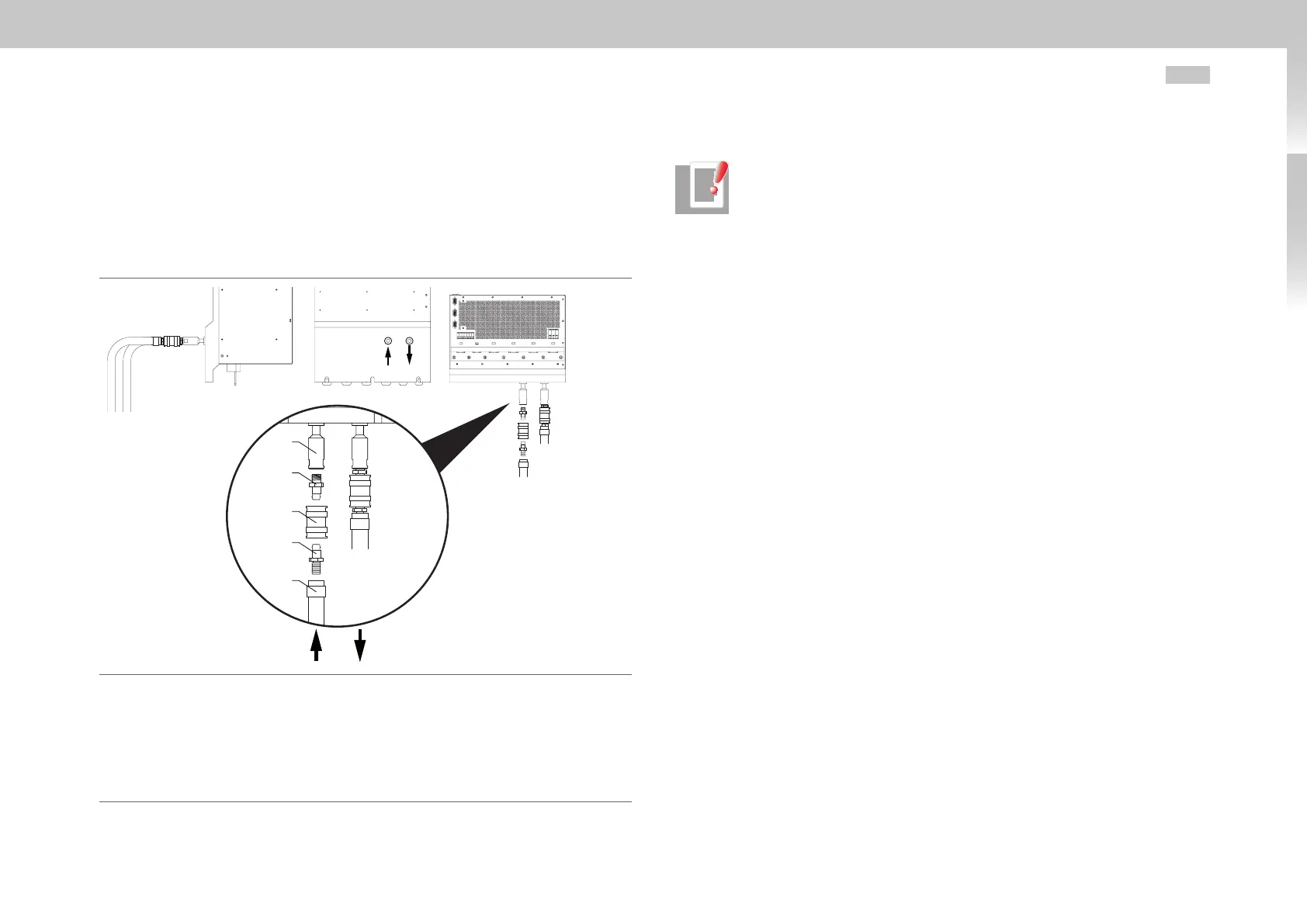

Fig. 2.6 Connection of cooling circuit (here: Size7)
NOTES:
• Scope of supply
Positions 2 to 5 are not contained in the scope of supply and must be
provided by the customer.
• Supply connection
Connect the supply of the liquid cooling strictly to the connections marked in
Fig. 2.4, Fig. 2.5 or Fig. 2.6 accordingly.
