NOTES:
• During the flashing phases the Save procedure can still be aborted by
pressing any button, without the set value being accepted. Otherwise the
new value will be saved after 5 seconds.
• Without a restart of the control electronics a changed IP-address will not
be accepted.
4.4.5 Field bus address menu (Fb)
The functions available under this menu option depend on the expansion option of the
device. Detailed information can be found in the corresponding model description.
Menu level
Param-
eter
Value
range
Meaning Explanation
1 2
Fb
Ad - 00..xx
or
- -
Field bus
address
Setting the field bus address
(only with implemented field bus option),
otherwise display “- -”
(the maximum adjustable value depends
on
the option)
Po - 0..3
or
- -
Transmit power Setting the light wave power
(only with SERCOS II option),
otherwise display “- -“
Table 4.9 Field bus address menu

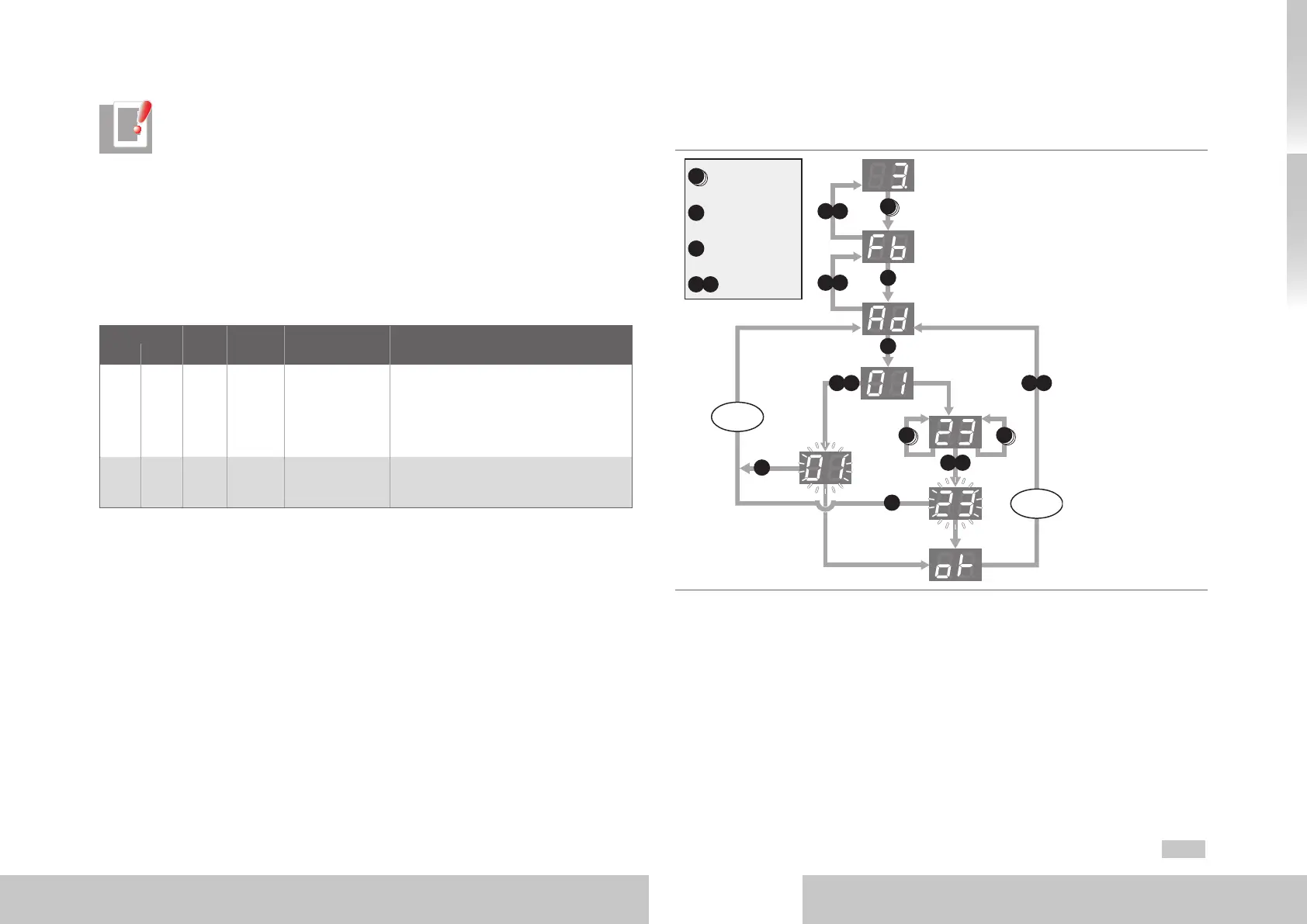

Exemplary configuration of the field bus address
In this example the field bus address is set from 1 to 23.
Tx
Tx
Back
Back
T2
T2
T1 T2
T1 T2
T1 T2
Back
Apply
>5 s>5 s
<5 s
<5 s
T1 T2
T1 T2
T1 T2
T1 T2
T1
Press button Tx
(x=1, 2) repeatedly
until desired menu
appears on display
Press button Tx
(x=1, 2) once
Press any button
Press button T1 and T2
simultaneously
Value NOT
saved
Value
saved
Fig. 4.3 Exemplary configuration of the field bus address
