MSDServoDrive AC-AC Operation Manual
moog
47
Id. no.:CA65642-001 Date:03/2012
[
Commissioning
]
to the glossaryto the table of contents
4.4 Integrated control unit and MMC-card
The device internal control unit enables diagnosing the MSDServoDriveAC-AC.
Moreover, using the MMC-card eases series commissioning without PC. The control unit
consists of the following elements, which are all located on the front of the device:
• 2-digit 7-segment display (D1, D2)
• two buttons (T1, T2)
• M M C- Sl o t ( X1)
MMCplus cards of type SC-MMC128 can be used (128 MB memory and 3.3 V
supply voltage, for further details see MSDServoDriveOrdering Catalog).

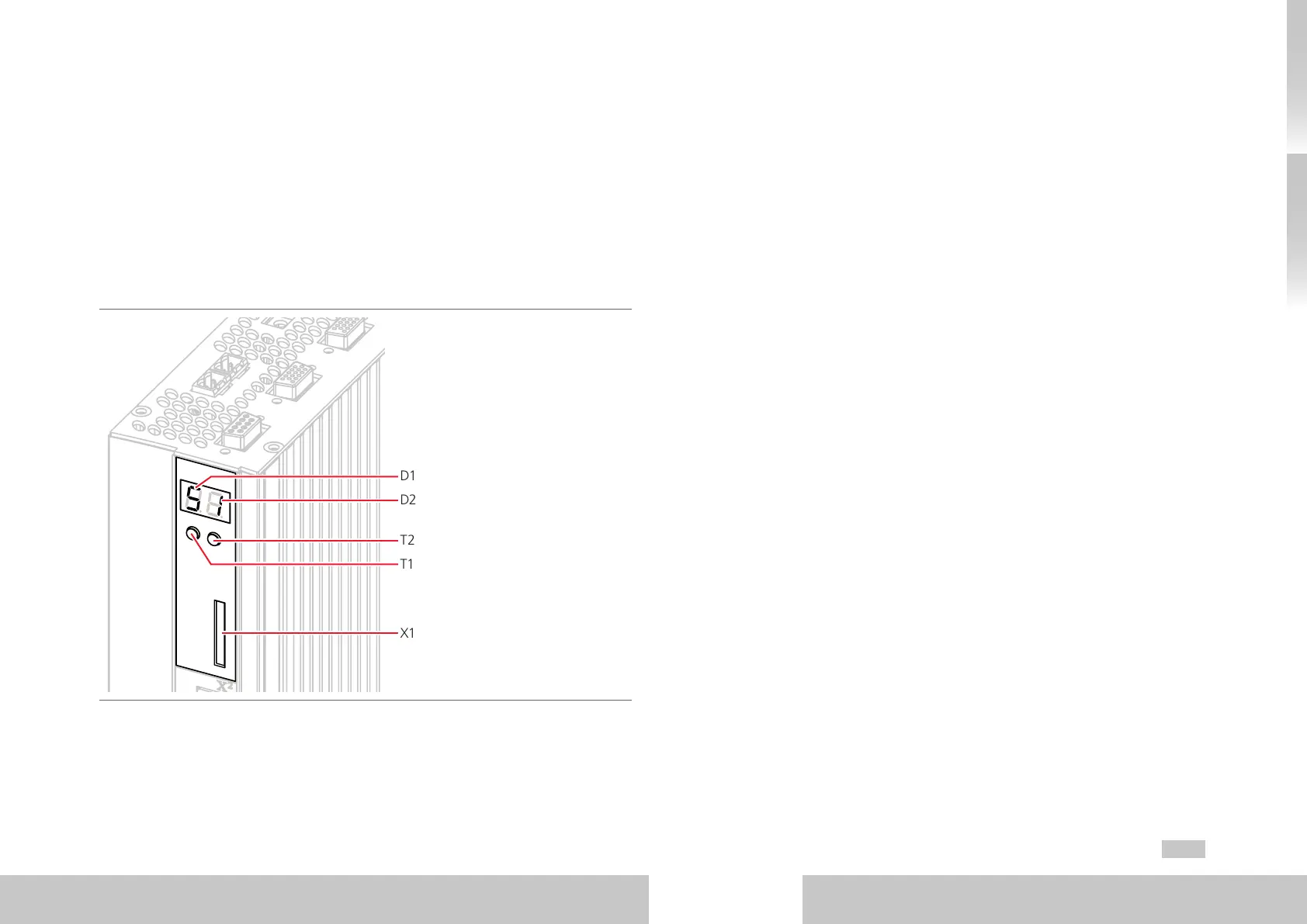

Fig. 4.1 Integriated control unit
D1
D2
T2
T1
X1
The following functions or displays are available:
• Display of device status (see section5.1.1 from page53)
The device status is displayed after the control voltage has been switched on. If no
input is made via the keyboard over a period of 60 seconds, the display returns to
the device status display.
• Display of device error (see section 5.1.2 from page53)
If a device error occurs the display will immediately change over an display the
error code.
• Parameter setting (display “PA“) (see section 4.4.3 from page49)
To reset the device parameterization to factory settings as well as dataset handling
via MMC-card
• Ethernet IP-address setting (display “IP“) (see section 4.4.4 from page50)
To set the Ethernet IP-address as well as the subnet maske
• Field bus settings (display “Fb”) (see section 4.4.5 from page51)
To set e.g. the field bus address
• Firmware update with MMC-card (see section 4.4.6 from page52)
