Moog G392-004 User Manual

MSDServoDrive AC-AC Operation Manual
moog
42
Id. no.:CA65642-001 Date:03/2012
to the glossaryto the table of contents

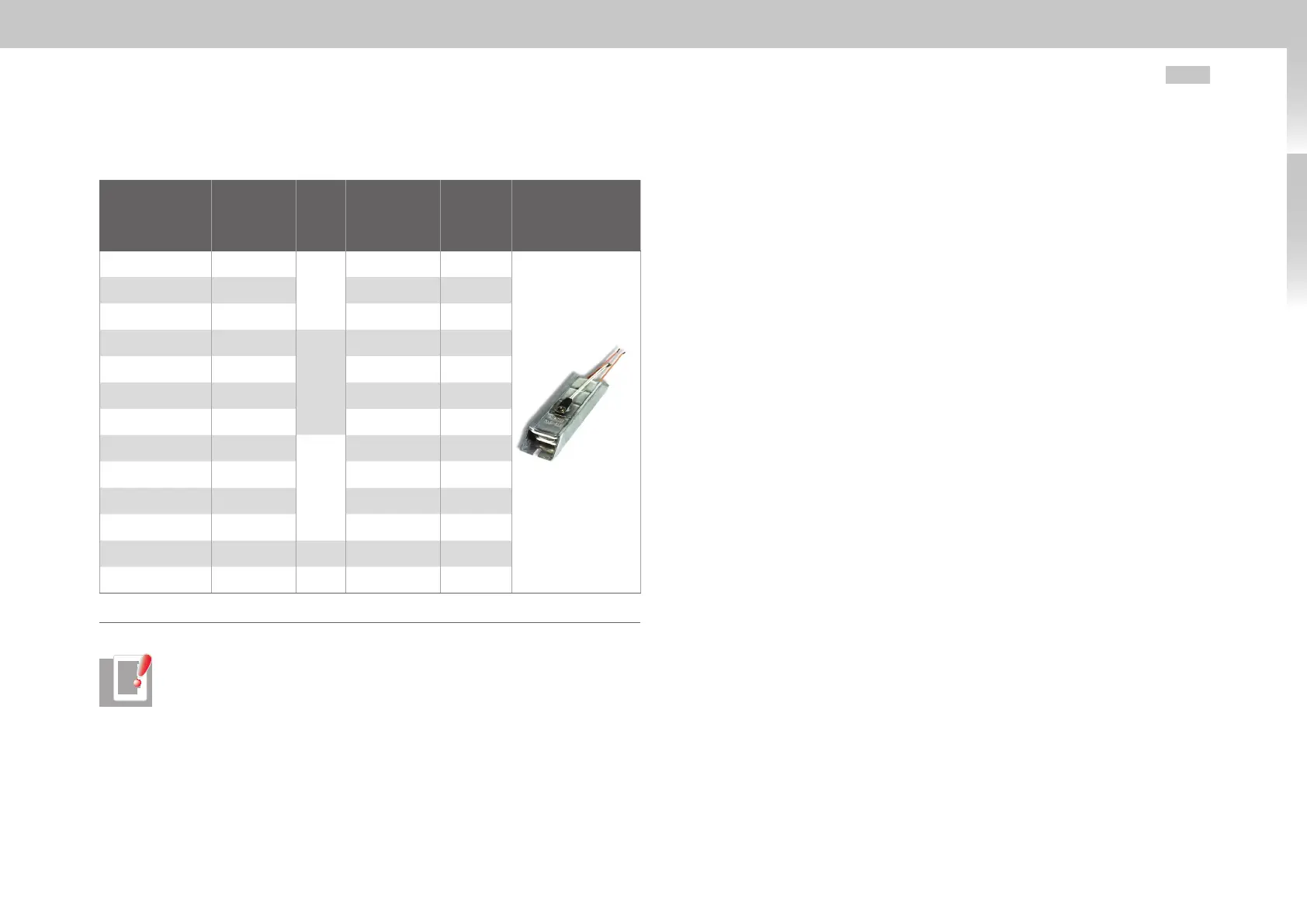

Available braking resistors (excerpt)
Ordering
designation
Continuous
braking
power
Resist-
ance
1)
Peak braking
power
2)
Degree of
protection
Illustration
CB09047-001 35W
200Ω
2800W IP54
Example:
CB09047-001
CB09048-001 150W 2800W IP54
CB09049-001 300W 2800W IP54
CA59737-001 35W
90Ω
6250W IP54
CA59738-001 150W 6250W IP54
CA59739-001 300W 6250W IP54
CA59740-001 1000W 6250W IP65
CA59741-001 35W
26Ω
21600W IP54
CA59742-001 150W 21600W IP54
CA59743-001 300W 21600W IP54
CA59744-001 1000W 21600W IP65
CB36901-001 300W 20Ω 27750W IP54
CB36902-001 300W 15Ω 37000W IP54
1) Tolerance ±10%
2) the maximum possible braking power in dependence on ON-time and cycle time
Table 3.22 Technical data - braking resistors
NOTE: Exact specifications, especially with respect to surface temperature,
maximum connection voltage and high voltage strength can be found in the
MSDServoDrive Ordering Catalog.
Please consult your projecting engineer for more detailed information on the design of
braking resistors.
