2.6.
2.7.
2.8.
Ifadjustmentisrequired,loosenthetwooutsideM8CapHeadScrewssecuringthe
UpperPivotBlocktotheFrame,thetwoinsideM8CapHeadScrewssecuringthe
LowerPivotBlocktothetopoftheBladeDriveStepperMotorMountingPlate&thetwo
outsideM8CapHeadScrewssecuringtheLowerPivotBlocktotheFrame.

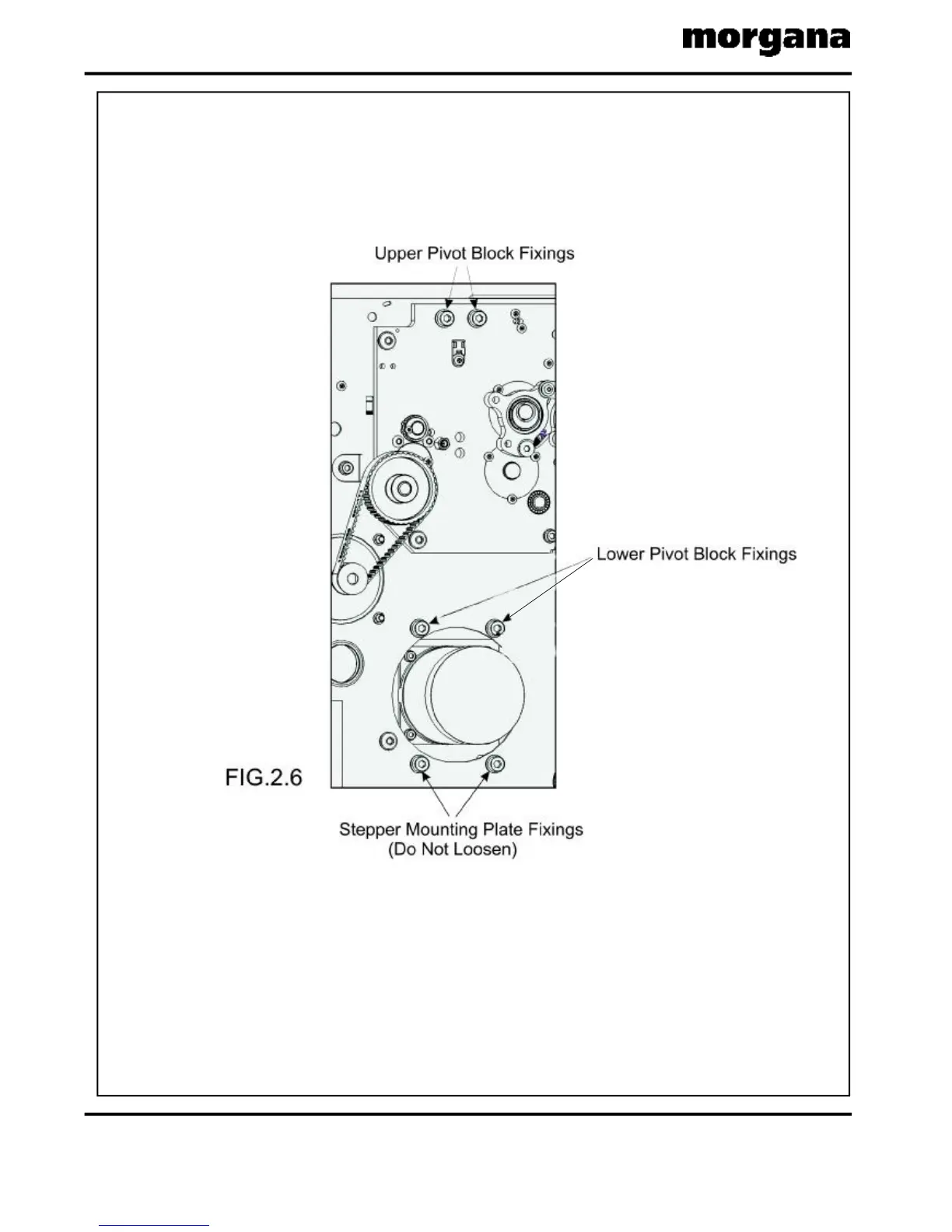

(SeeFIG.2.6below).
GentlytaptheLowerfixingscrewsintheappropriatedirectionuntiltheleadedgeofthe
testsheetisparallelwiththeTieBars.
.Tightenallscrewsinthereverseorder
whencomplete.
Donot
loosenthetwoinsideorthetwooutsidescrewssecuringthebottomofthe
BladeDriveStepperMotorMountingPlate.
DonottaptheUpperPivotBlockoritsfixing
screwsasthiswilltwisttheDynacreaseUnit-theUpperPivotBlockwillself-
alignprovidingitsfixingscrewsareloose
It'simportanttonotethatthelayedgeofthetestsheetmustbekeptin
completecontactwiththeFixedSideLay(Manifold)duringthisprocess.
CREASING/FOLDING
