LED Indicators
Speed LED
The cradle’s green Speed LED lights to indicate that the transfer rate is 100 Mbps. When it is not lit it indicates that
the transfer rate is 10Mbps.
Link LED
The cradle’s yellow Link LED blinks to indicate activity, or stays lit to indicate that a link is established. When it is
not lit it indicates there is no link.

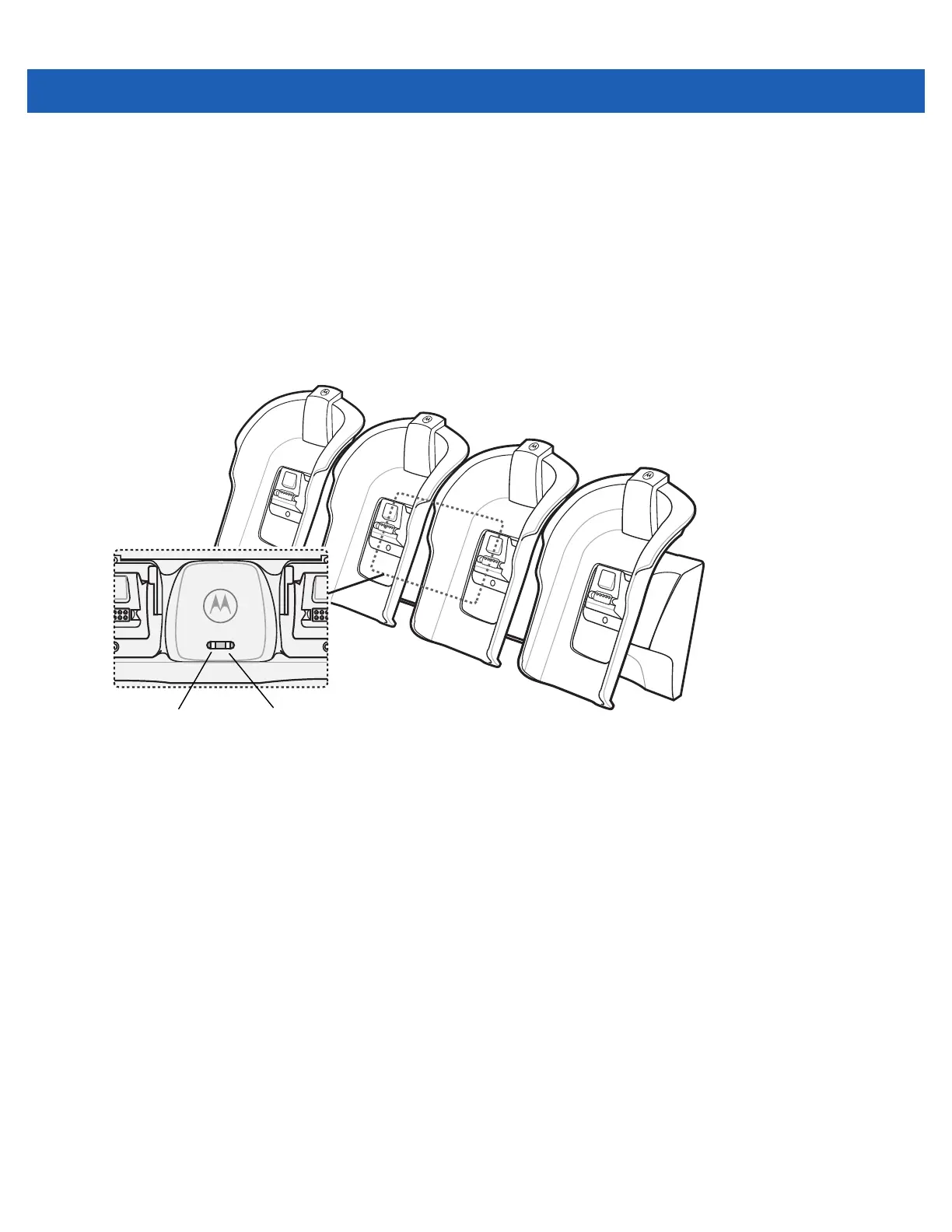

Figure 8-7 Four Slot Ethernet Cradle LED Indications
Link LED
Yellow)
Speed LED
(Green)
