TN-5516/5518 User’s Manual Featured Functions
3-21
Available Ports/Member Ports
Setting Description Factory Default
Member/available ports This lists the ports in the current trunk group and the
ports that are available to be added.
N/A
Check box This selects the port to be added or removed from
the group.
Unchecked
Port This is how each port is identified. N/A
Port description This displays the media type for each port. N/A
Name This displays the specified name for each port. N/A
Speed
This indicates the transmission speed for each port
(100M-Full, 100M-Half, 10M-Full, or 10M-Half).
N/A
FDX flow control
This indicates if the FDX flow control of this port is
enabled or disabled.
N/A
Up
This is used to add selected ports into the trunk
group from available ports.
N/A
Down
This is used to remove selected ports from the trunk
group.
N/A

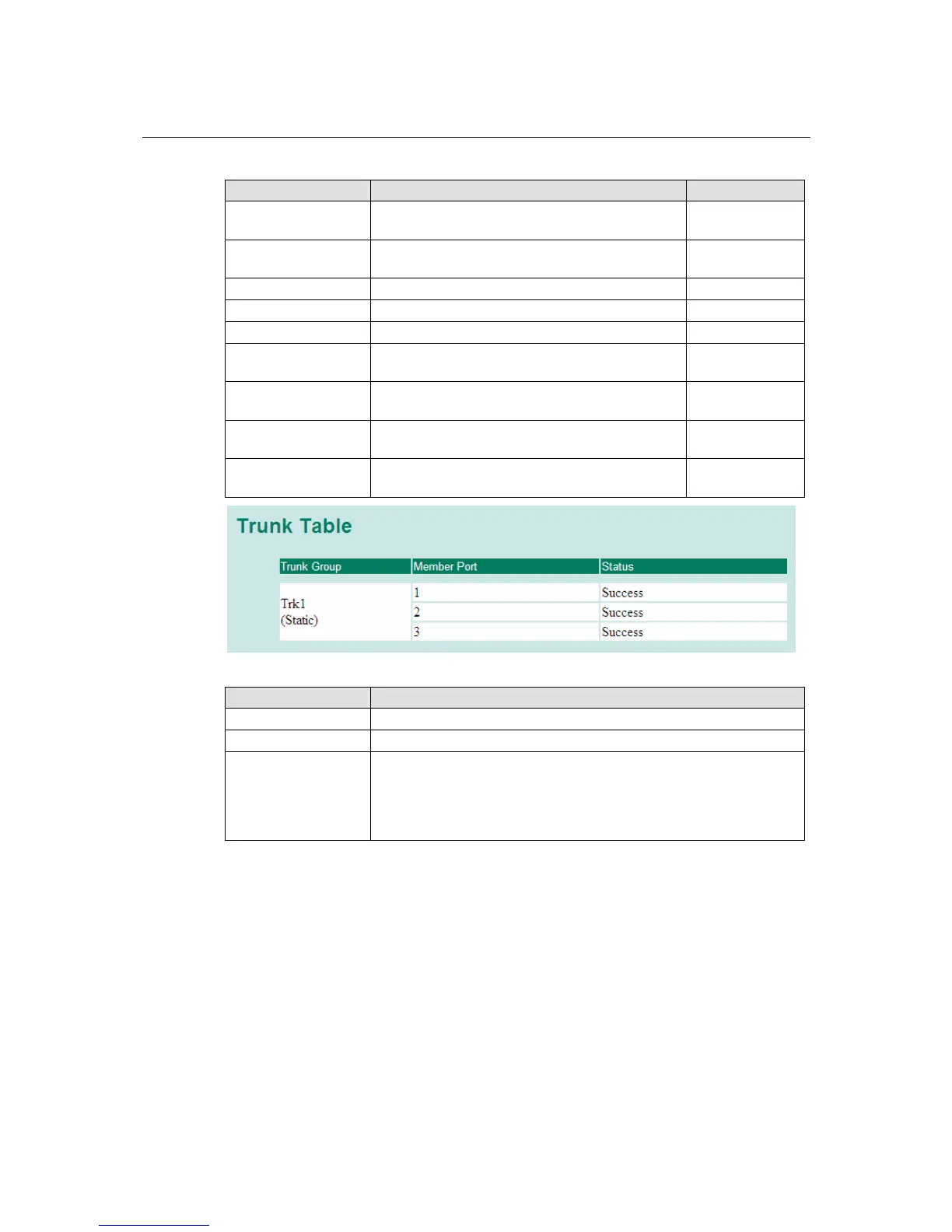

Trunk Table
Setting Description
Trunk group Displays the trunk type and trunk group.
Member port Displays the member ports that belong to the trunk group.
Status Success means port trunking is working properly.
Fail means port trunking is not working properly.
Standby means port trunking is working as a standby port. When there
are more than eight ports trunked as a trunking group, the 9
th
port will be
the standby port.
