SUPREMATouch
154
Installation
MSA
US
Configuration of the MFI Module
S101 Code Switch

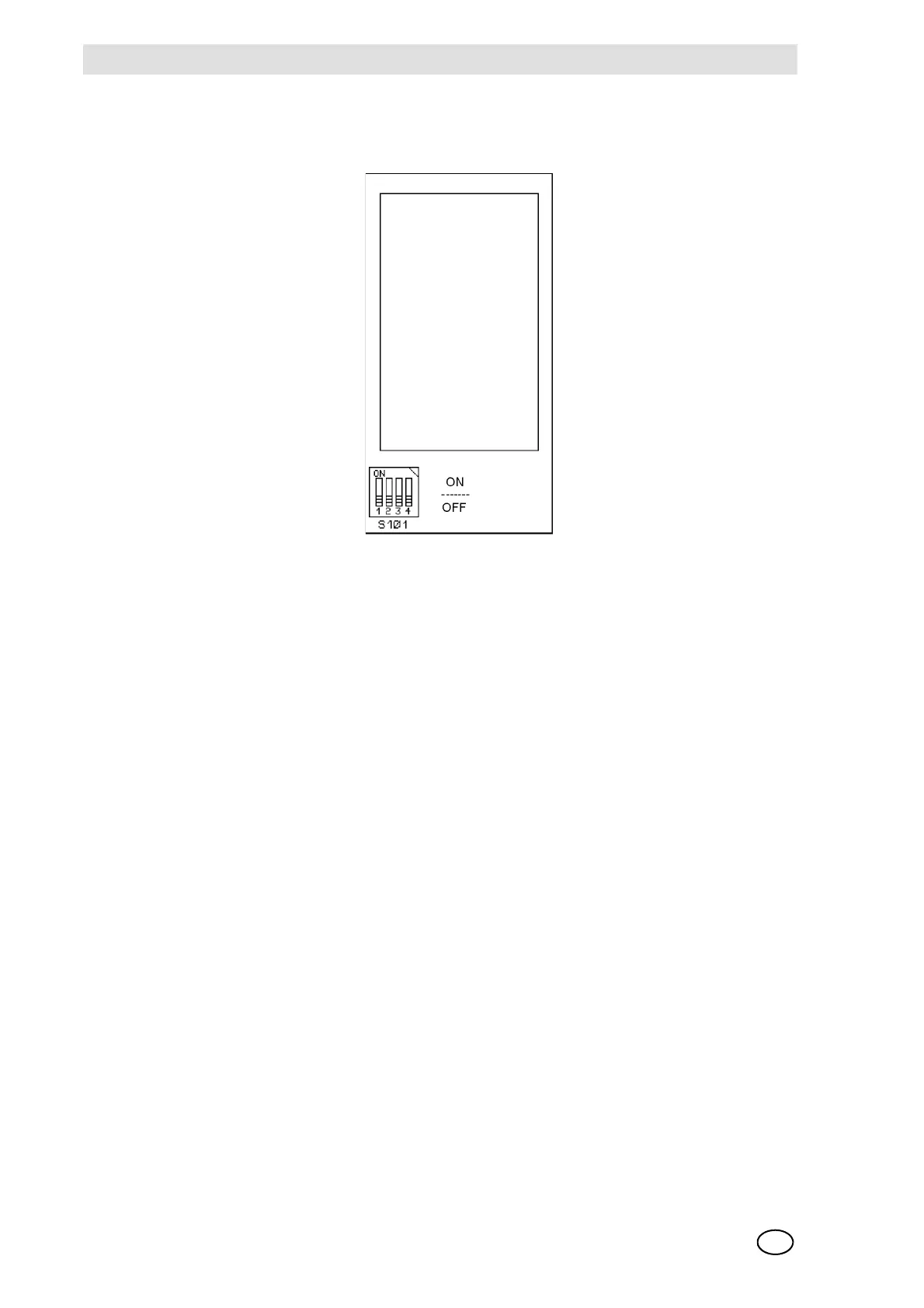

Fig. 83 View of the MFI Module
Functions S101
1 = ON, 2 = ON, 3 = OFF
The fire detectors are powered from the SUPREMA power supply (dc coupling between signal
and SUPREMA power supply).
1 = OFF, 2 = OFF, 3 = ON
The fire detectors are powered from a separate power supply. Signal line and SUPREMA power
supply are electrically isolated.
4 = ON
The module is configured for applications with a zener barrier.
4 = OFF
The module is configured for applications without a zener barrier.
Configuration in the SUPREMA menu
Settings/Measure points/Sensor data
Sensor MFI
Measuring range 0 ... 100
Units any
