MRO 8 Module Relay Assignment

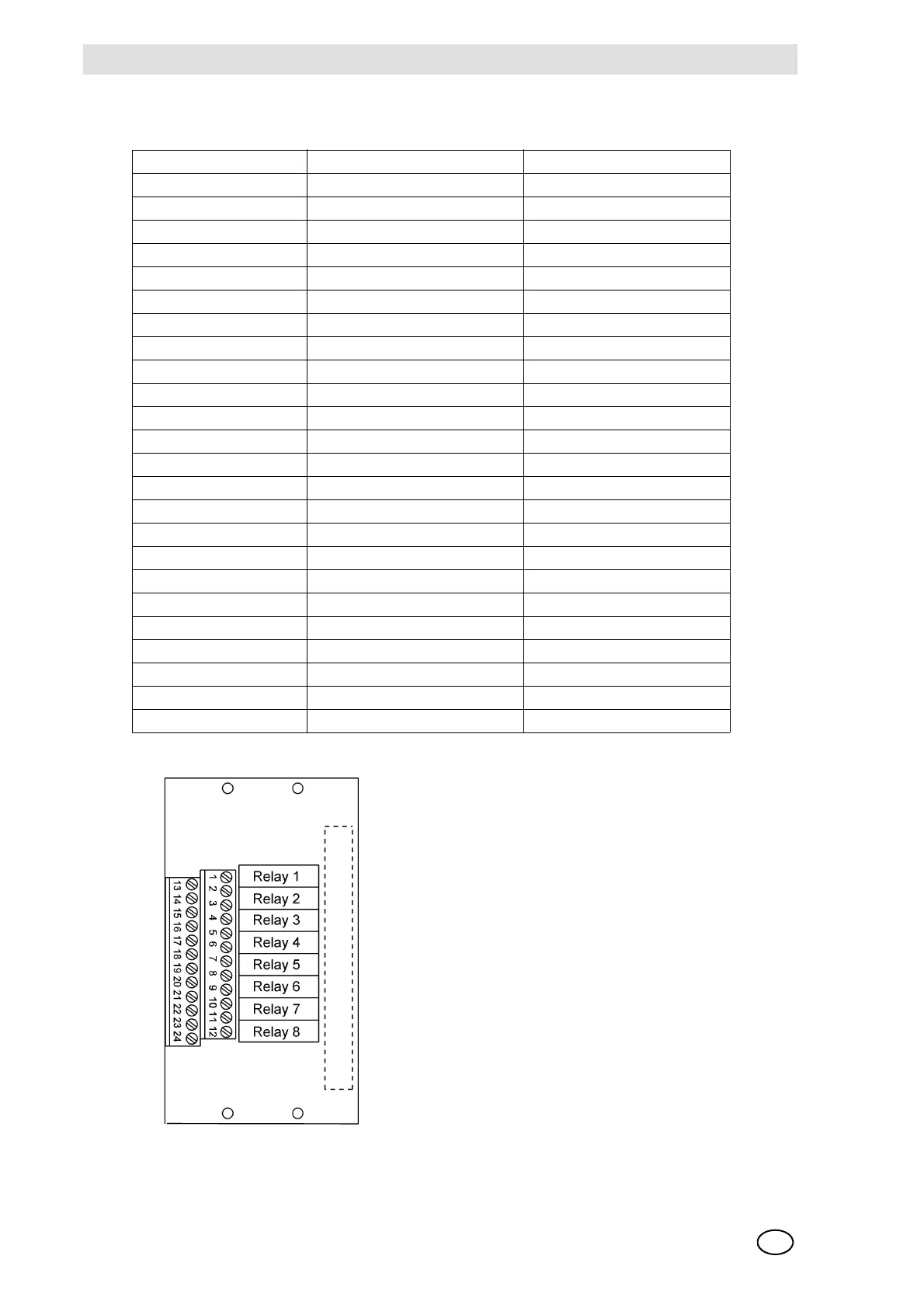

Fig. 123 MRO 8 Module, Terminal Assignment
Fig. 124 MRO 8 Module, Terminal Assignment
Relay No. Terminal No. Contact
11 NO
2C
3NC
213 NO
14 C
15 NC
34 NO
5C
6NC
416 NO
17 C
18 NC
57 NO
8C
9NC
619 NO
20 C
21 NC
710 NO
11 C
12 NC
822 NO
23 C
24 NC
