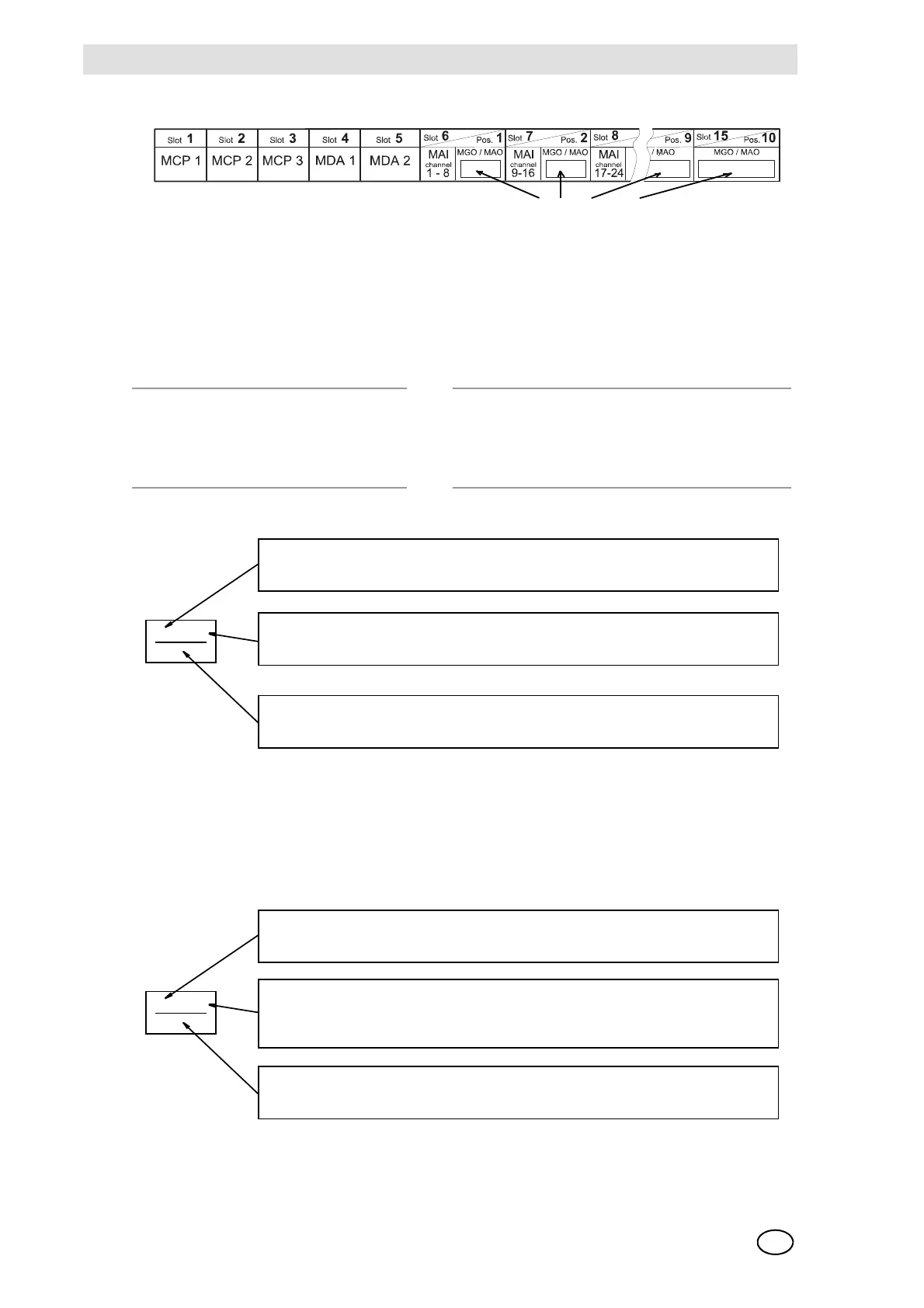

Fig. 153 Labelling of the slots in the 1st rack
Connection and Terminal Modules on the Rack
A free labelling field is provided for the modules plugged into the rear of the rack (MRO 8, MAT,
and MUT modules). The following rules apply to the assignment of the rear plug positions to the
slot numbering on the front:
Fig. 154 Shows a possible labelling system
Fig. 155 Labelling of the connection and terminal Modules in the rack
Connection and Terminal Modules in Rail-Mounted Installation
A free labelling field is provided for modules installed on mounting rails (MRO 8 TS, MAT TS, MRC
TS, and MGT 40 TS modules). Figure 156 shows a possible labelling system.
Fig. 156 Labelling of the rail-mounted connection and terminal Modules
Assignment: Front: Rear:
Slot 1 MST module
Slot 2-4 free
Slot 5-15 Positions 1-10
1
3/
1-8
Rack: No. of the rack in which the module is installed.
Position: Position No. of the slot in the rack
Nos. of the connected inputs and outputs.
2
/ 9
1-40
Rack: Serial No. of the rack to which the module is connected via a ribbon cable and a
MUT module (or a MRC TS and a MUT module)
Position: Posi tion No. of the slot in the rack to which the module is connected via a
ribbon cable and a MUT module (or a MRC TS and a MUT module).
Serial Nos. of the connected inputs and outputs
