Operation of the System
SUPREMATouch
53
US
Head ID and assignment
Field type: Display
This field displays the remote sensing head used in the selected assignment.
Gas ID and assignment
Field type: Display
This field displays the gas name used in the selected assignment.
Range ID and assignment
Field type: Display
This field displays measuring range used in the selected assignment.
Dimension ID and assignment
Field type: Display
This field displays the dimension used in the selected assignment.
Lin. tab. ID
Field type: Display
This field displays the linearisation curve of the selected assignment.
Allocation

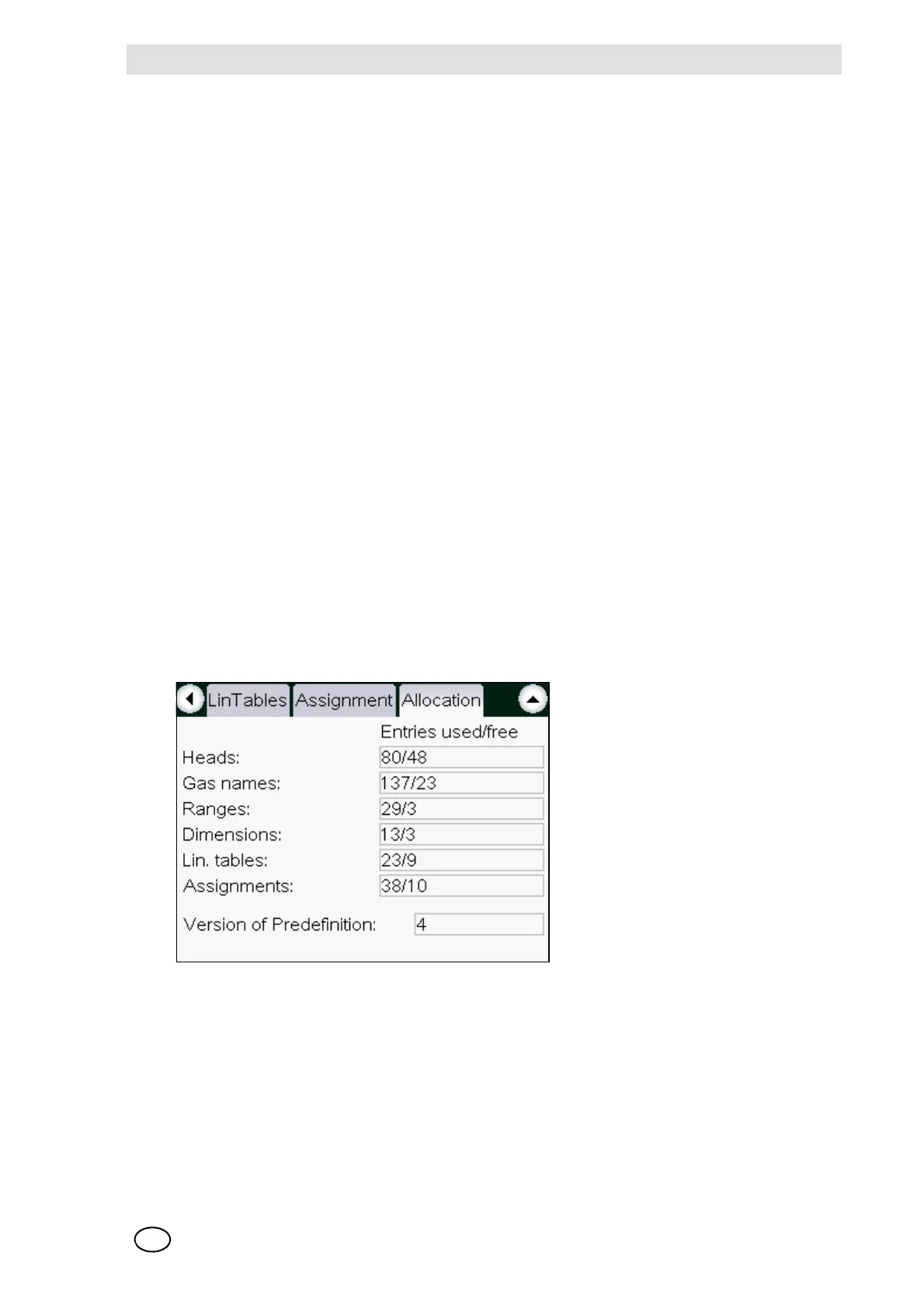

Fig. 27 Allocation
This window displays an overview of how many cells are used for individual parameter operations
and how many cells are still free together with the version of the predefined dataset - Version of
Predefinition.
