Operation of the System
SUPREMATouch
69
US
Modules Menu
From the “Module” menu, the user can recall information about the system modules.

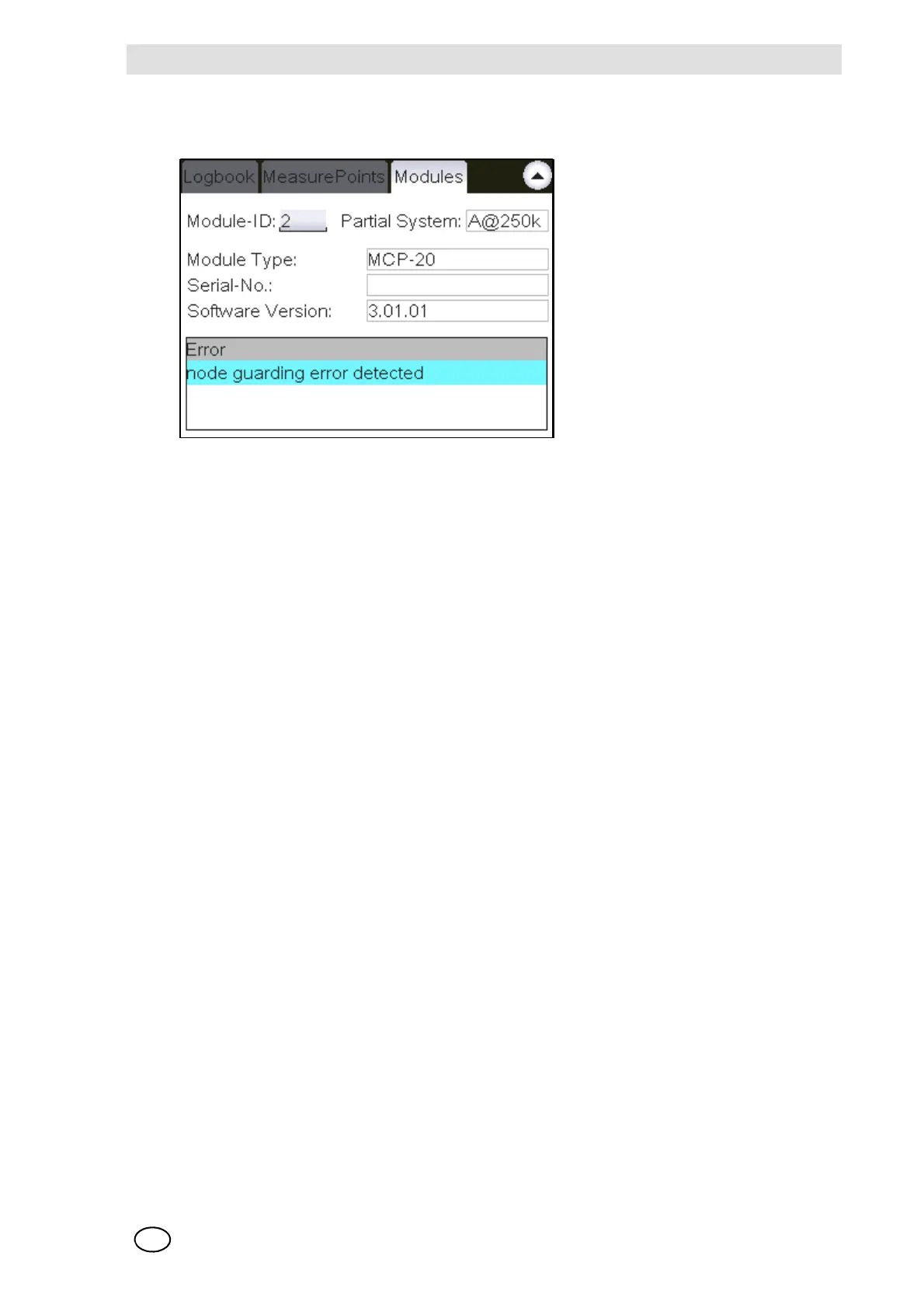

Fig. 40 “Modules”
The functions of the individual fields are described below:
Module ID
Field type: Selection
This field contains the CAN node IDs of all system modules which are connected to the CAN bus.
After an ID has been selected, the remaining fields are filled with all data available for this partic-
ular module.
Partial System
Field type: Display
In this field, the letter of the partial system to which the module belongs and, for some modules
[e.g. MCP-20 and MDO-20], the system CAN baud rate is displayed.
Module Type
Field type: Display
This field contains the type of module selected.
Serial No.
Field type: Display
This field contains the serial number of the module selected [if set].
Software version
Field type: Display
This field displays the software version of the module selected.
