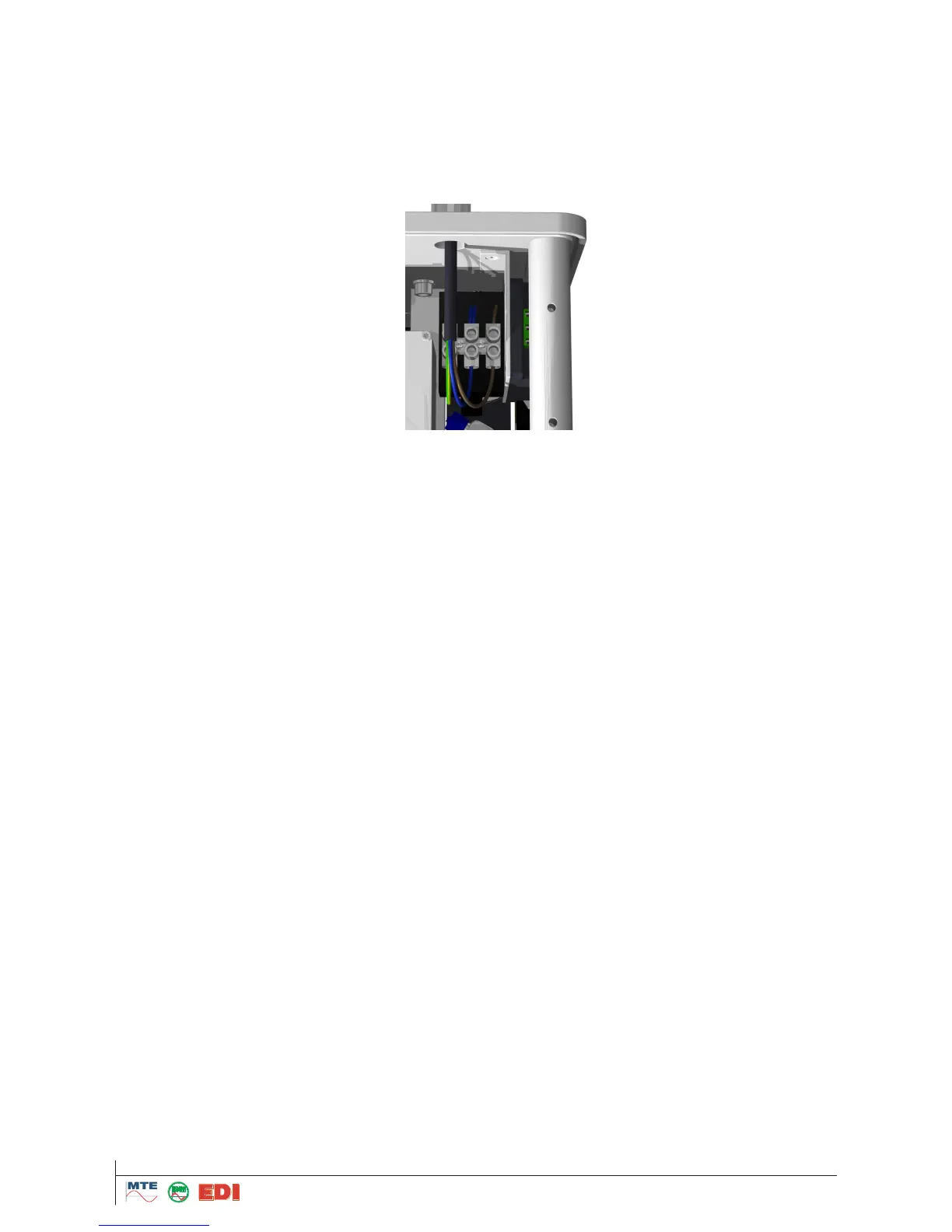

Entrance for power supply 88 VAC
min
… 276 VAC
max
Optional: 88 VDC
min
… 390 VDC
max
max. 350 VA, 50/60 Hz
Then, power supply must be connected as follow :
o Brown  (L)
o Blue  (N)
o Green - yellow  (PE)
[3]
System outlet for digital and analogue inputs and outputs
Communication outlet for communication via analogue or GSM/GPRS-modem
[4]
ETHERNET connector
[5]
Gas Air Outlet
