4.6 Extraction Menu
Please refer chapter 2.6.”Installation completion”
4.7 Display of stored „Gas-in-oil“measuring values

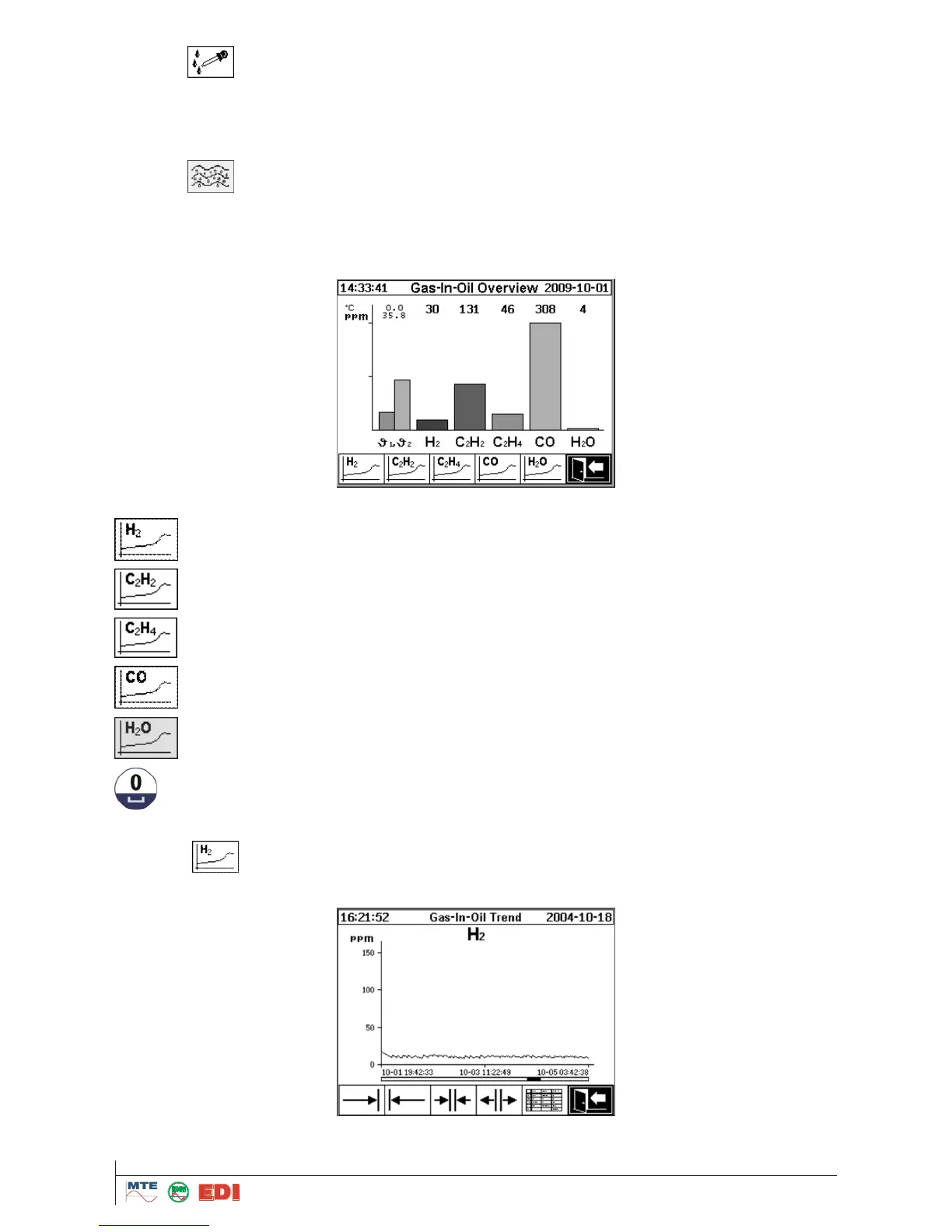

In the menu „Gas-in-oil“ an overview in the form of a bar chart with the composition of measured
gases in the oil are shown. The values for H
2,
C
2
H
2
, C
2
H
4
, CO and H
2
O indicate their actual meas-
urement values of the total gas content. I.e. as shown below: 30ppm is H
2
, 131ppm is C
2
H
2
, 46ppm
is C
2
H
4
, 308ppm is CO and 0.0ppm is H
2
O.
The following values are available:
