HYDROCAL 1005 Manual for Installation and Operation Page 30/111

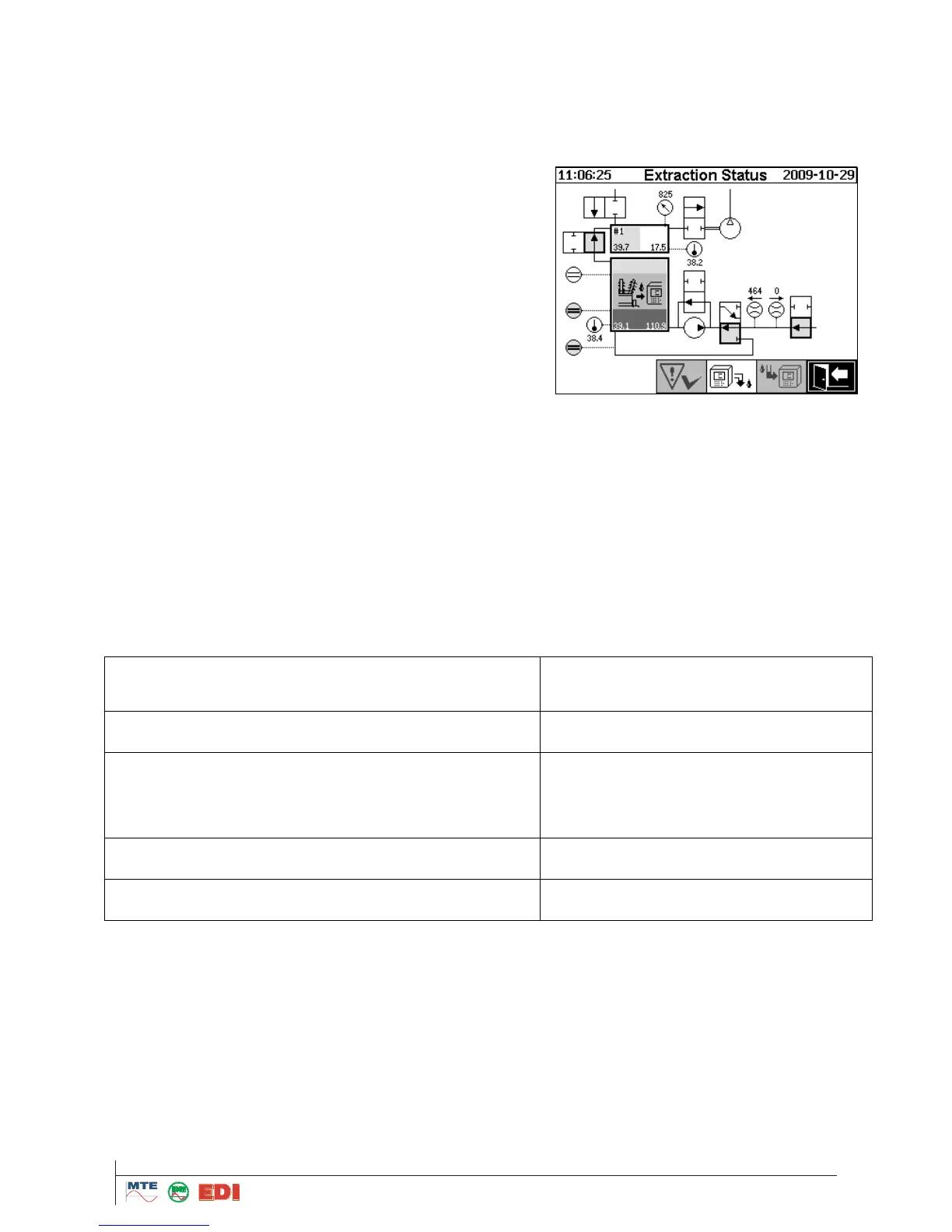

4.3.6. Filling to level 2
Step
No.
Status of the components
[1]
Capacitive Sensor F0 “active”
[2]
Capacitive Sensor FI “active”
[3]
Capacitive Sensor FII “active”
[4]
Valve V6 “open”
[5]
Flow meter “active”
[6]
Valve V1 “draining / filling”
[7]
Valve V3 “closed”
[8]
Compressor K1 “not active”
[9]
Valve V4 ”closed”
[10]
Valve V2 “open”
[11]
Pump P1 “not active”
[12]
Valve V5 “open”
4.3.6.1. Safety function and error observation for filling to level 2 cycle
Observed Components
Detectable Errors
Filling Sensor 0, 1, 2
Operating in normal parameters
Filling Sensor 0, 1, 2
Flow meter
Timer
- Flow Stuck
- Flow leak
- Level Timeout
- Avoid flooding meas. chamber
Measurement chamber
Measurement chamber offline
Pressure Sensor
- No pressure rise
