5.10.5 Analog Output Setup

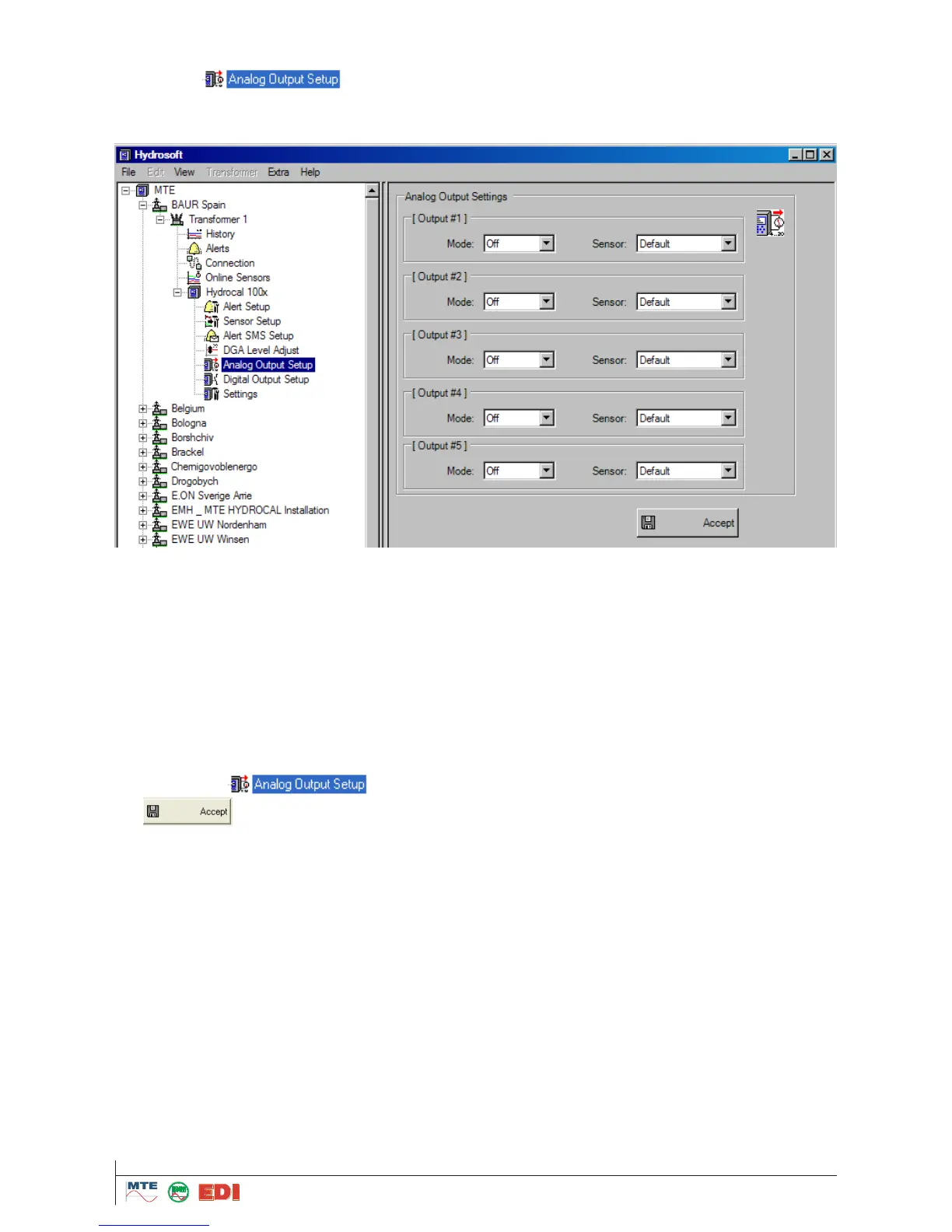

In the menu
,
The HYDROCAL1005 has 5 analog outputs for measured gas-in-oil
concentration, temperatures as well as for external sensors values. The output signal is 0-20 mA or
4-20 mA.
First a quantity / variable must be selected in the field "Sensor", the following variable are available:
 H
2
- C
2
H
2
- C
2
H
4
- CO - H
2
O concentration
 H
2
- C
2
H
2
- C
2
H
4
- CO - H
2
O Daily trend
 H
2
- C
2
H
2
- C
2
H
4
- CO - H
2
O Weekly trend
 Temperature 1
 Temperature 2
 All quantities / variables defined under external sensors
The following analog outputs signals are available in the field "Mode":
 OFF
 0…20 mA
 4…20 mA
Data in the tree are changed after modification of sensor settings and validation
with . The star indicates that modifications have been made; these must be transferred to
the HYDROCAL1005 unit for activation. This means, the settings indicated are not identical to those
of HYDROCAL1005. With next connection, it is requested whether the settings on HYDROCAL1005
unit shall be updated (see chapter 5.11).
