HYDROCAL 1005 Manual for Installation and Operation Page 42/111

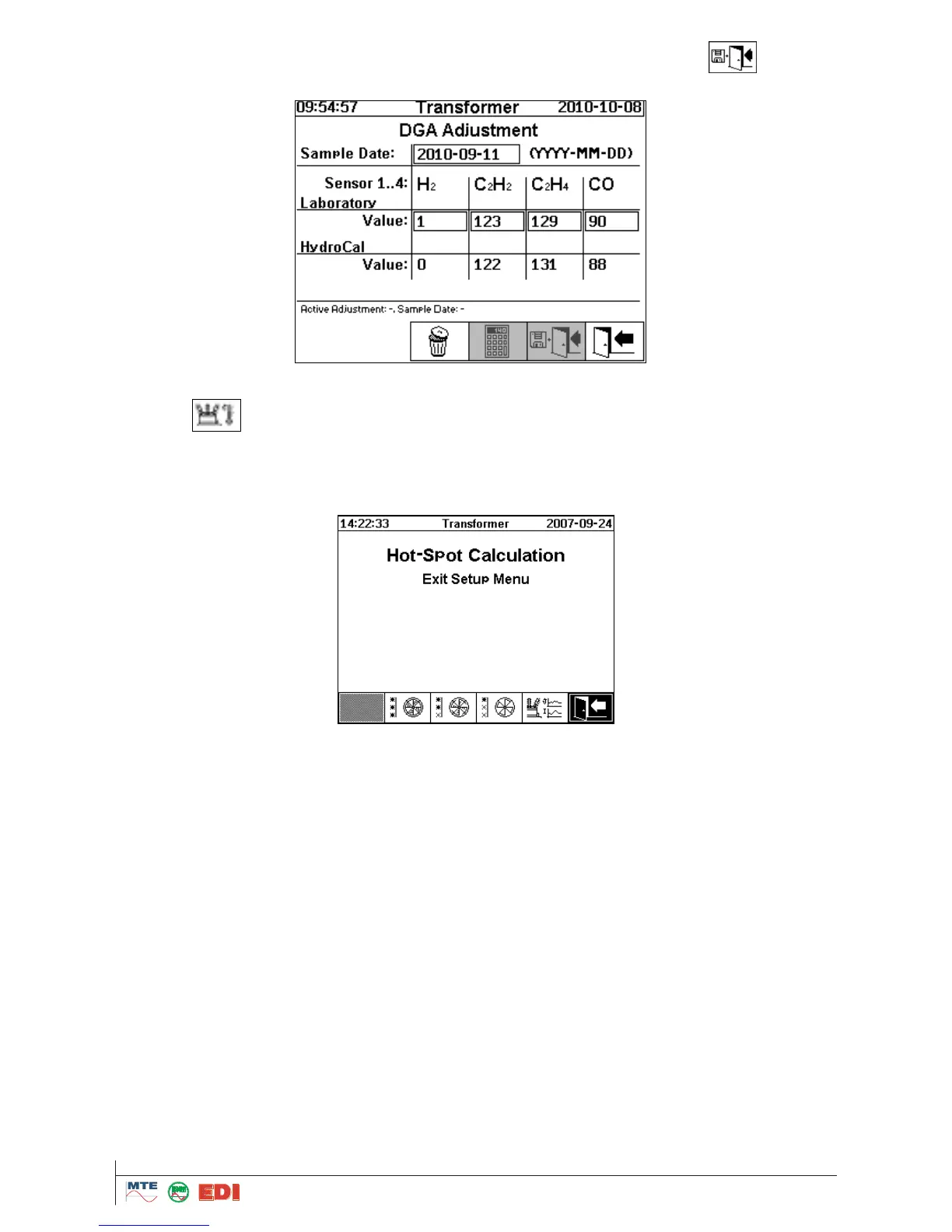

These values can be used. The new values are stored and activated by the button „Store and
exit“. For the following measured values the new correction factor will then be used.
4.9.1.1 Hot Spot calculation
HYDROCAL1005 can calculate the Hot-Spot temperature. For this calculation, it is important to know
that system needs external sensor references. These references are: minimum one of Load Current,
Top oil Temperature as well as Cooling Stage (this last reference is not necessary required but can
improve the calculation). The references have to be set up as external sensors.
