3. Hardware components of HYDROCAL 1005
3.1 Front view of HYDROCAL1005

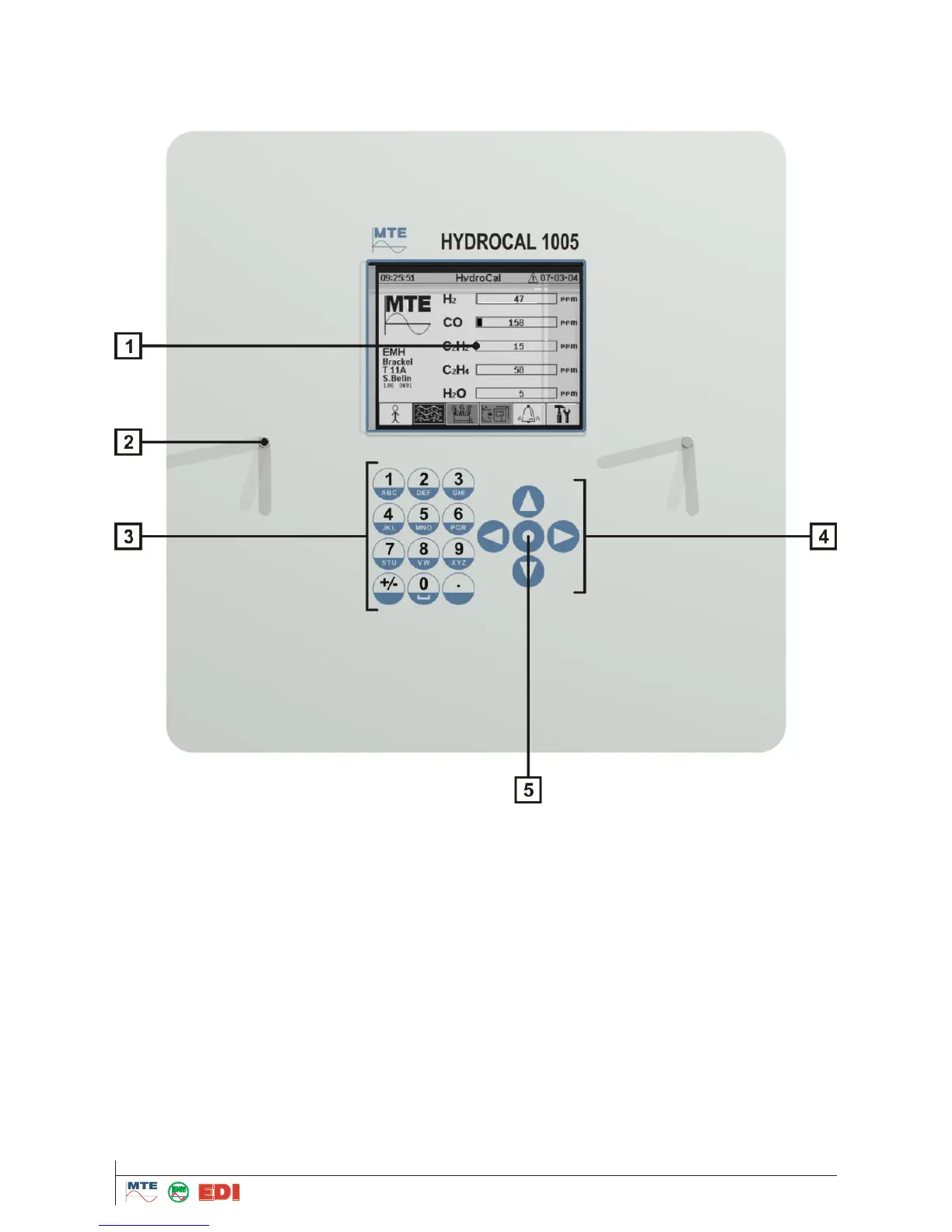

On the front side of the HYDROCAL1005 unit the following operating elements are available.
[1]
LCD-display with 240 x 320 pixels
[2]
Screw mounting to mount the cover
[3]
Alphanumeric keyboard to enter numbers and text
[4]
Arrow-buttons to move in the menus, for data input and contrast set-up from the main
display (Up an Down)
[5]
Enter button to confirm and stop functions and data
