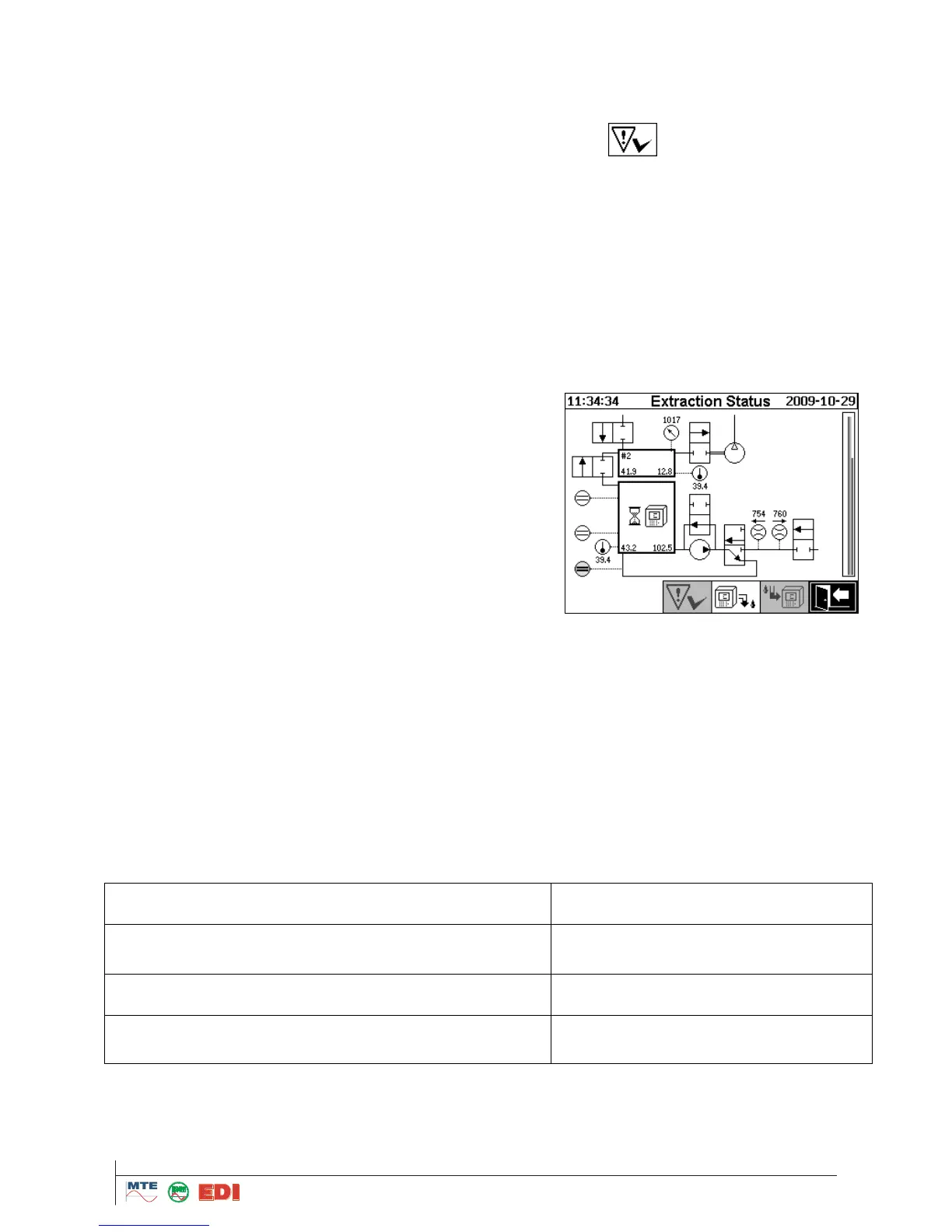

4.3. Operation Cycles
This chapter describes each process steps and provides information in regards to the safety functions as
well as how to reset errors. The consequence of all errors is that the cycle will be interrupted immediately and
all valves will be closed.
For all observed errors, you can acknowledged them by pressing button ..
 If nothing changes, check status of all components according to actual cycle.
 Check that all tubes go straight into the FESTO quick screws and any oil/air leakages have appeared
 Check that cables and all pins of the plug go straight into their socket; pushing the plug in carefully.
4.3.1. Zero measurement
Step
No.
Status of the components
[1]
Capacitive Sensor F0 “not active”
[2]
Capacitive Sensor FI “not active”
[3]
Capacitive Sensor FII “not active”
[4]
Valve V6 “closed”
[5]
Flow meter “not active”
[6]
Valve V1 “circulating”
[7]
Valve V3 “closed”
[8]
Compressor K1 “not active”
[9]
Valve V4 ”closed”
[10]
Valve V2 “closed”
[11]
Pump P1 “active”
[12]
Valve V5 “open”
4.3.1.1 Safety function and error observation for Zero measurement cycle
Observed Components
Detectable Errors
Filling Sensor 0, 1, 2
Operating in normal parameters
Measurement chamber
Measurement chamber offline
Pressure Sensor
Pressure stability
