MTS Systems FlexTest SE Service Information

Stand-Alone Configuration
Model 493.02 Controller Service
Introduction
Introduction
21
Back Panel Except for two front panel BNC connectors, all cabling is accessed
through the Controller’s back panel. It is not necessary to remove the
chassis cover to access jumpers or switches.

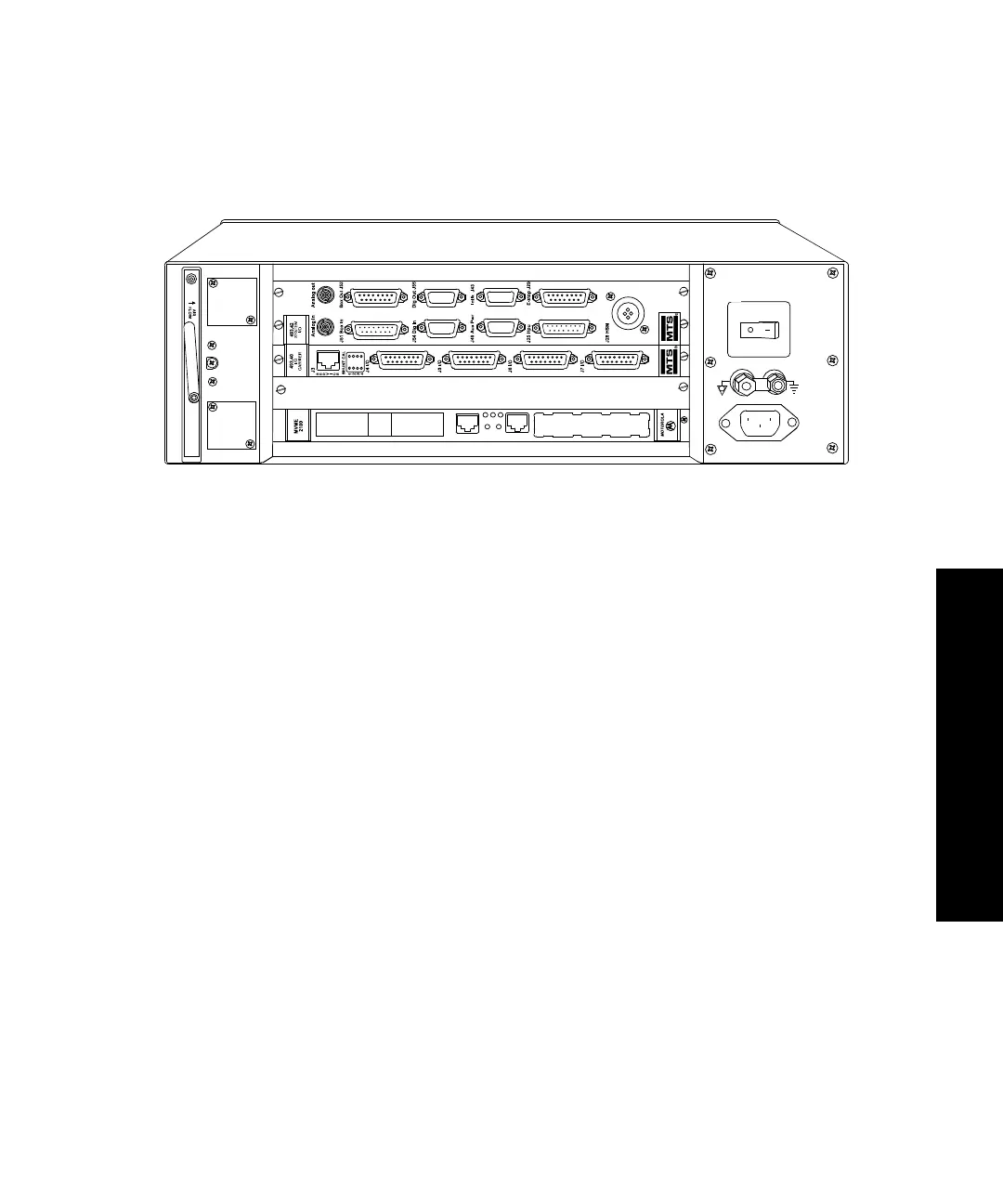

FlexTest SE Back Panel
Plug-In Modules In the standard configuration, the Controller’s VME chassis contains
three plug-in modules:
• A Model 498.96-4 Processor
• A Model 493.40 I/O Carrier module
• A Model 493.42 System I/O Module
TYPE E PC-MIP
TY PE E PC -MI P
RUN 6TS BFL
ABT RST
DEBU G
PCI MEZZANNE C ARD
Power
100–240 VAC
50–60 Hz, 12–6A
TS-G43
5
