MTS Systems FlexTest SE Service Information

Model 493.42 System I/O Connections
Model 493.02 Controller Service
Cabling
65

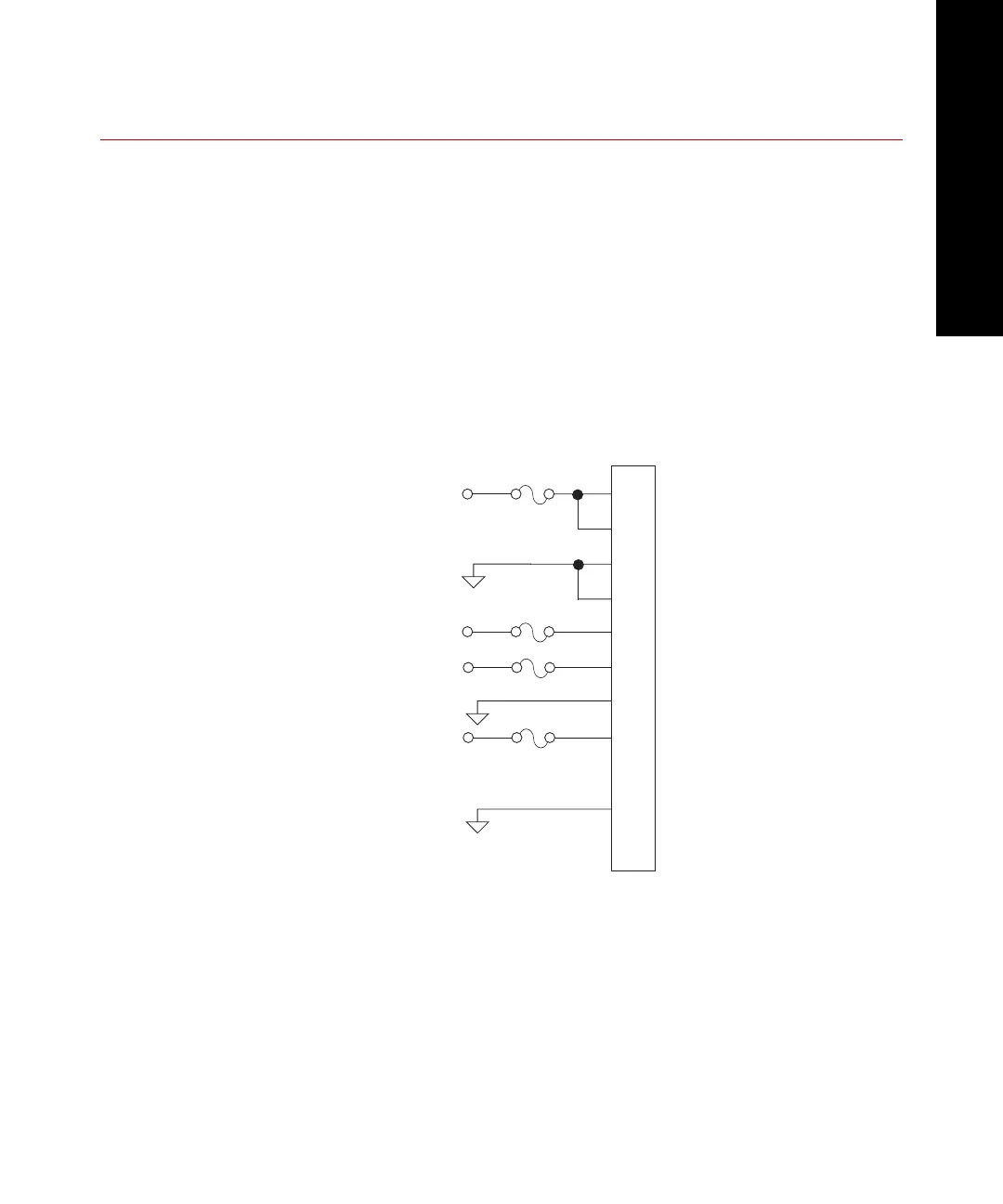

J49 Auxiliary Power
Connector J49 Aux Pwr provides +5 V DC, ±15 V DC, and 24 V DC
from the chassis internal power supply to drive external high level
conditioners, proximity switches, solenoids, and so forth.
• The outputs are fused at 0.75 A to protect the power supply from
an external short.
• The fuses can be reset by shutting off power and waiting a few
minutes (the fuses automatically reset when cooled) then
reapplying power.
Cable specification • 9 contact type D male EMI connector
• Backshell–EMI metallized plastic
• Cable–shielded twisted pairs (22 AWG minimum) with drain
wire(s) connected to the metallized backshell at the chassis.
F4
F9
F7
F7
1
6
2
7
3
9
8
5
4
J49 To
External Devices
From
Chassis
-15 V DC
+24 V DC
24V
Common
+5 V DC
5V
Ground
+15 Vdc
Analog
Ground
