MTS Systems FlexTest SE - Encoder Connections

Model 493.02 Controller Service
Model 493.40 I/O Carrier Connections
Cabling
54

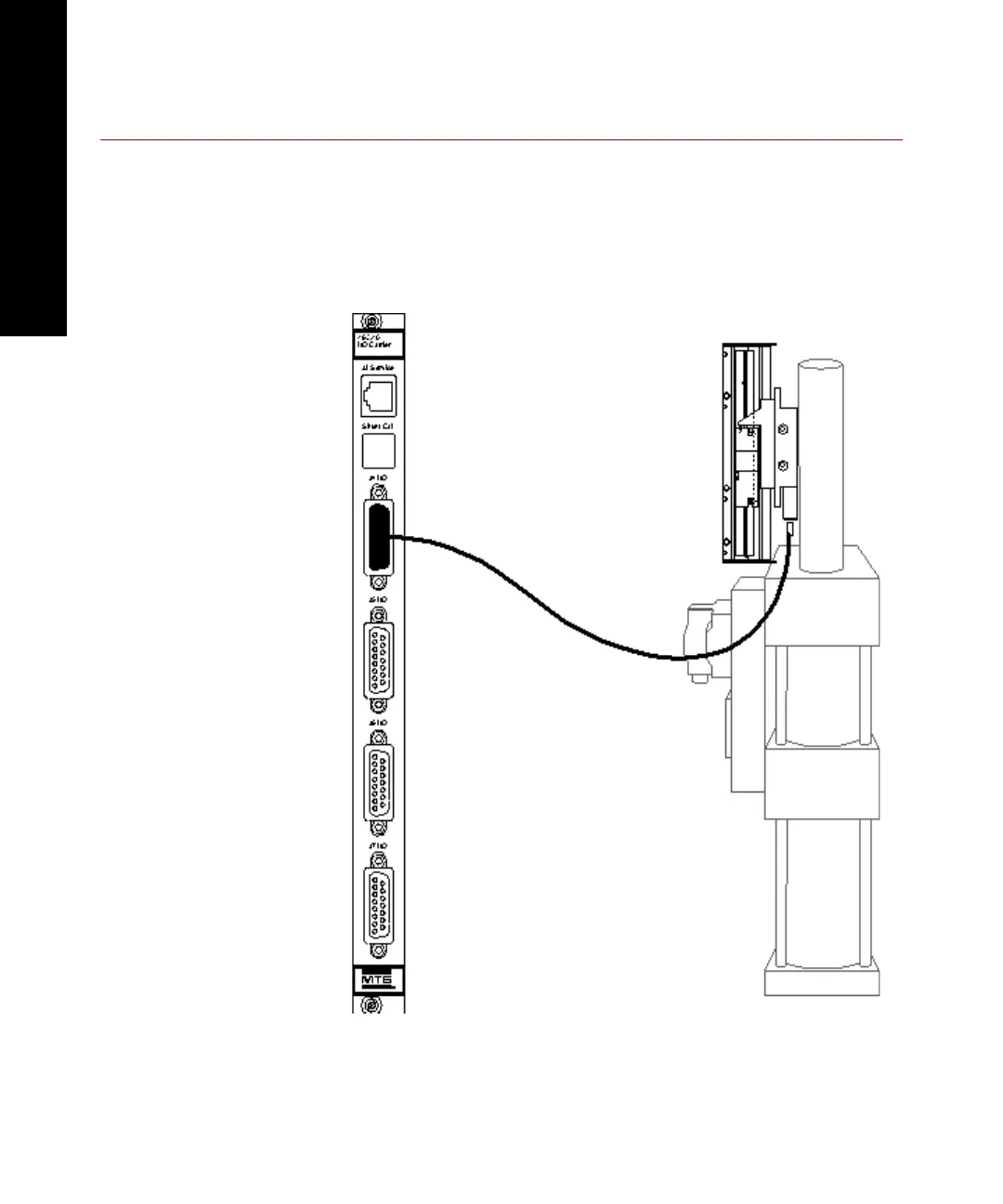

Encoder Connections
Each encoder requires installation of a Model 493.47 Encoder Interface
daughter board on the Model 493.40 I/O Carrier board. The I/O Carrier
connector is based on the location of the daughter board installed on
the board of the I/O Carrier module. See “Determine installed location”
on page 186
