Model 493.02 Controller Service
Model 493.40 I/O Carrier Connections
Cabling
56
Workstation Connection

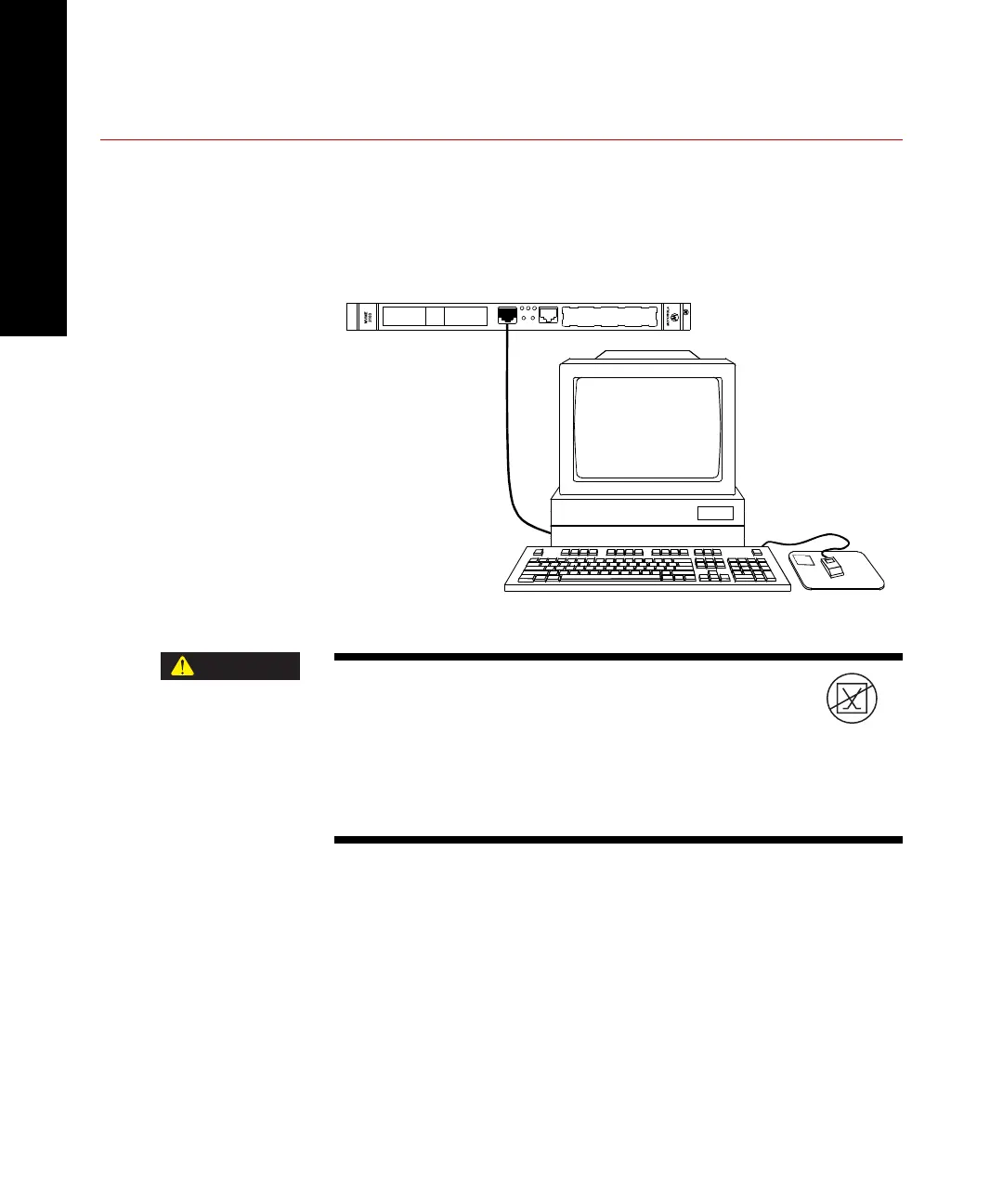

The workstation computer is connected to the MVME PowerPC®
module installed in the VMEbus of the chassis. It is an Ethernet 10/100
Base-T connection. The workstation computer must have an Ethernet
compatible connector.
The symbol shown here indicates that you must not
connect telecommunications equipment to the
equipment showing this symbol.
Several modules have connectors that look similar to a phone connector.
Special cables are required. Installing telecommunications equipment cables
can cause equipment damage to the electrical components of the chassis or
to your telecommunications system.
