MTS Systems FlexTest SE Service Information

Model 493.02 Controller Service
Stand-Alone Configuration
Introduction
Introduction
20
Stand-Alone Configuration
The Controller is a fully digital, single-channel, Proportional, Integral,
Derivative, Feedforward (PIDF) servocontroller. It provides complete
control of one servohydraulic channel or station in an MTS test system.
Front Panel Operations are controlled through the Controller’s front panel. An
easy-to-read color display shows the status of the parameter currently
being adjusted or monitored. A simple scroll-through menu provides
quick access to any parameter or function. All parameters are entered
through a keypad or adjusted by a single multi-turn knob. The current
settings are saved in a flash disk and are automatically recalled at start
up.
In addition to providing the means to adjust and monitor the test
parameters, the front panel also provides program control, system
hydraulic pressure control, and an Emergency Stop button that shuts
down the system hydraulics in an emergency situation. BNC monitor
connectors are also provided to allow you to connect easily to external
readout devices.

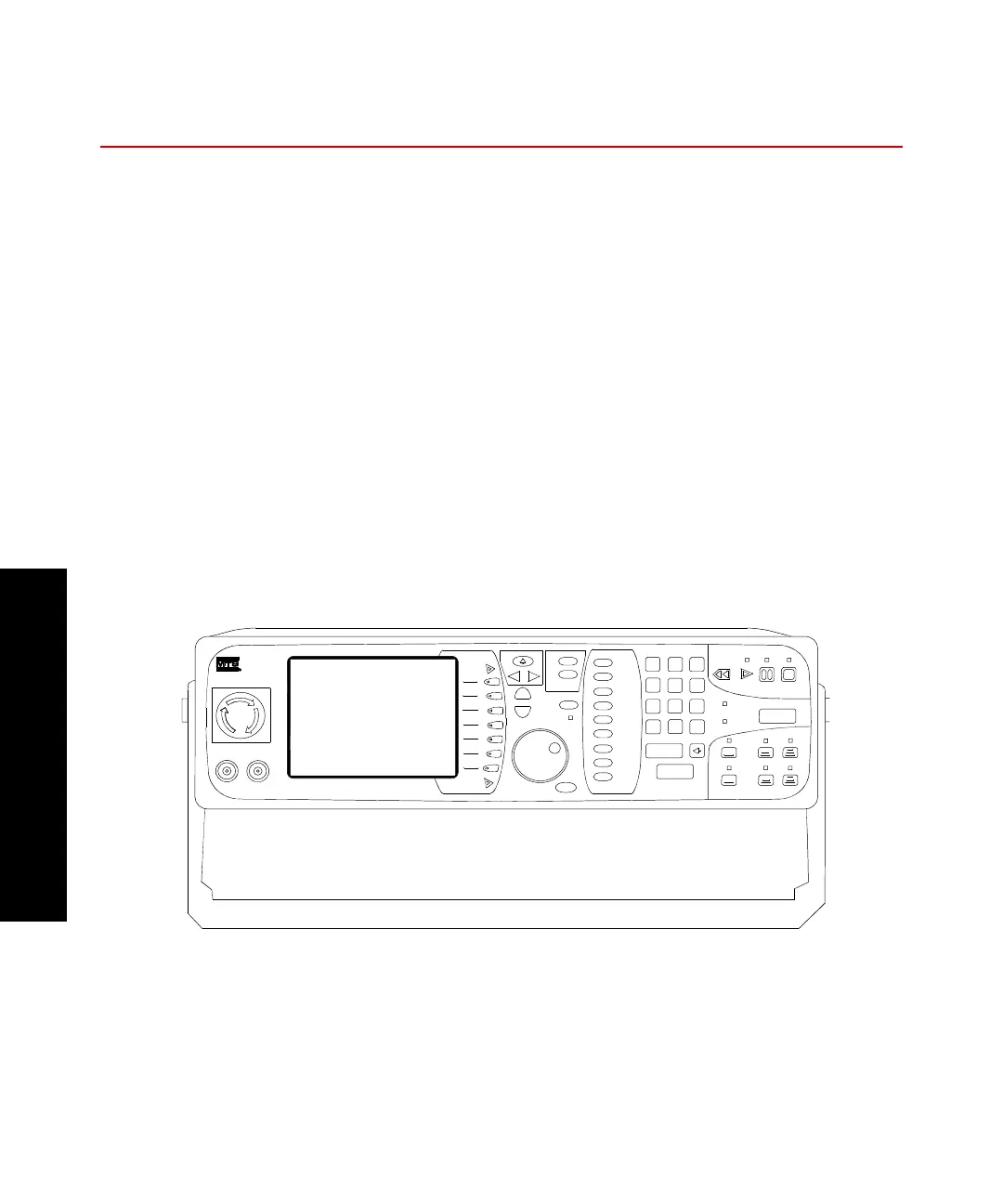

FlexTest SE Front Panel
FlexTest SE
Emergency Stop
7
8 9
65
4
3
2
1
.
0
+/-
enter
cancel
FG
Setup
Status
Scope
Meters
Tun ing
Config
Limits
Log
Menu
?
A
B
Recall
Enabled
reset
Rewind Run Hold Stop
Power
Program
Hydraulic
Interlock
Program
Interlock
HPU
HSM
Off
Low High
Off
Low
High
Navigate
Monitor 1
Monitor 2
TS-G436
