8 Name of each part
1Introduction
Name of each part

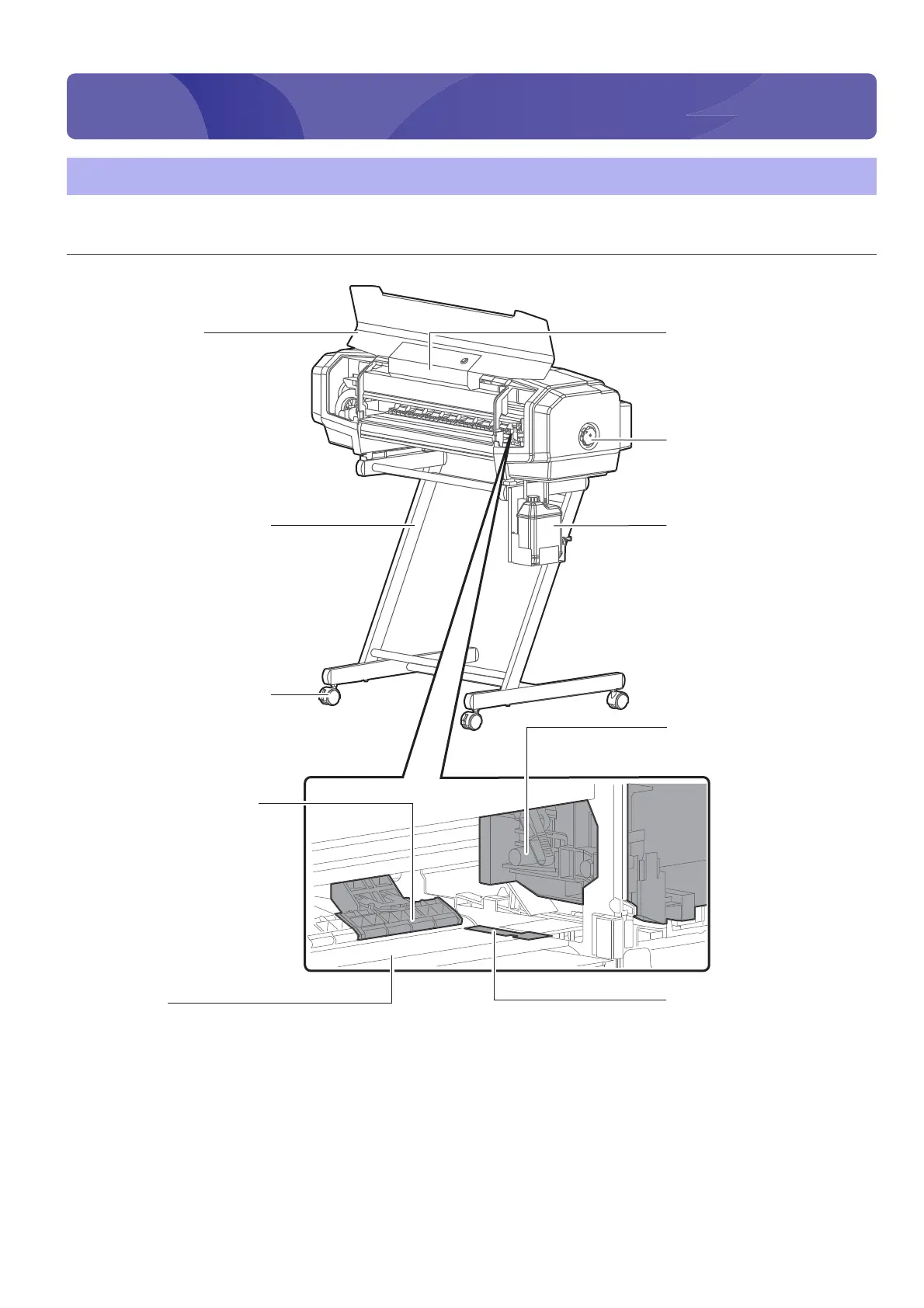

Printer’s main body (Front side)
Platen
Media is printed on here.
There are an adsorption fan and
a heater inside.
Media pressure arm
Hold media to the platen.
It links with the media
fixing knob.
Paper guides
When attached on both edges
of media, a curvature of media
can be controlled to some
extent.
Carriage
A print head and cutter are
built-in.
Front cover
Open when loading media
or during maintenance.
Waste fluid tank
Used for collecting waste fluid
discharged from the printer.
Remove the waste liquid
before it becomes full.
Stand
Caster
Media fixing knob
Turn when mounting and
removing media.
Blower heater
Blows hot air to accelerate
drying of media.
