3 Technical details and pin assignment
• Motor current: 10 A (N5-1 low current)/18 A (N5-2 high current) rms
• Operation mode: Velocity Mode, full step, 30 rpm
• Ambient temperature: 45 °C
• Altitude of site: 500 m above sea level
• No external cooling in the climatic chamber, e.g., via fan

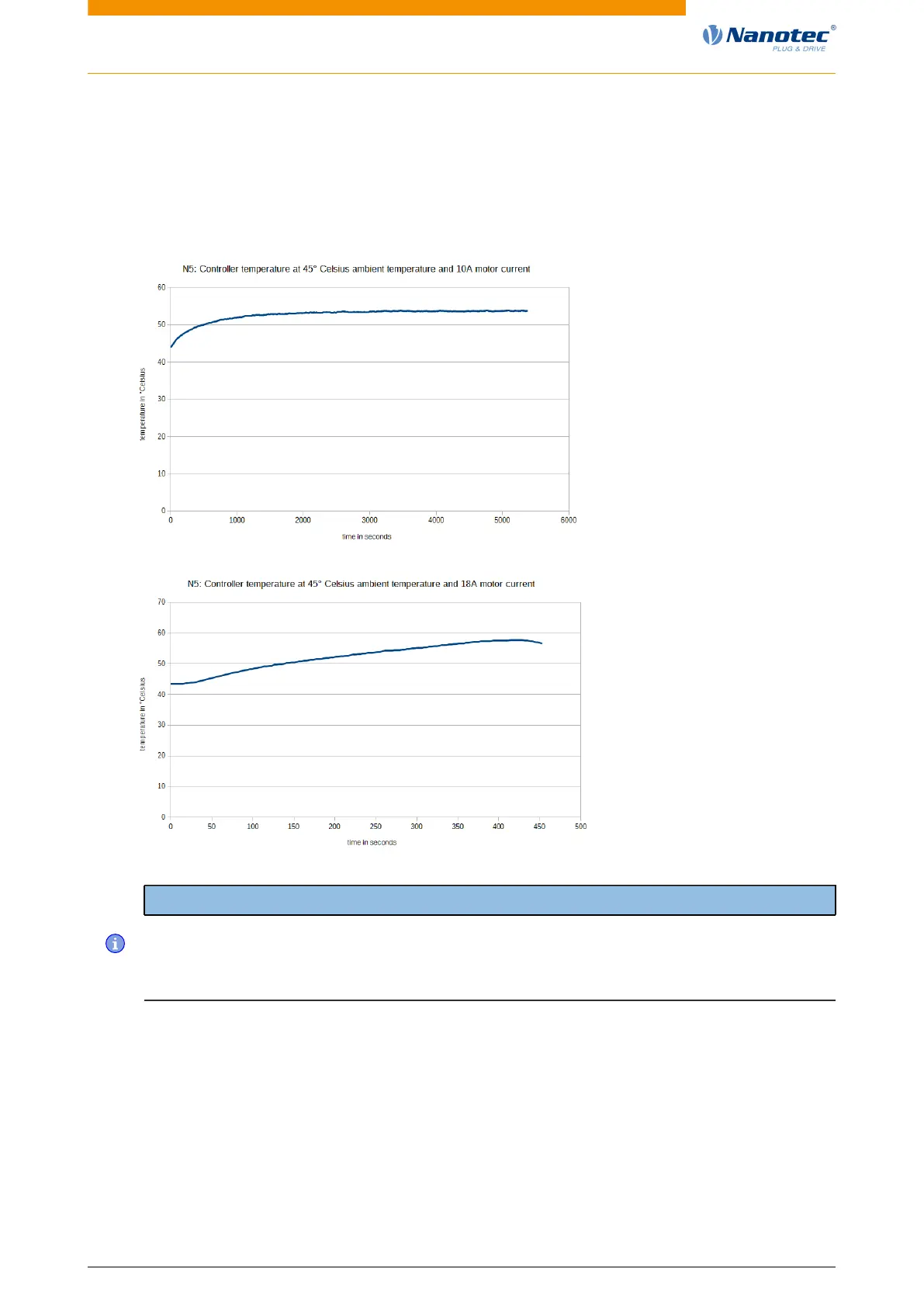

The following graphics show the results of the temperature tests:
Note
Aside from the motor, the exact temperature behavior is also largely dependent on the flange
connection and the heat transfer there as well as on the convection in the machine. For this reason,
we recommend always performing an endurance test in the actual environment for applications in
which current level and ambient temperature pose a problem.
